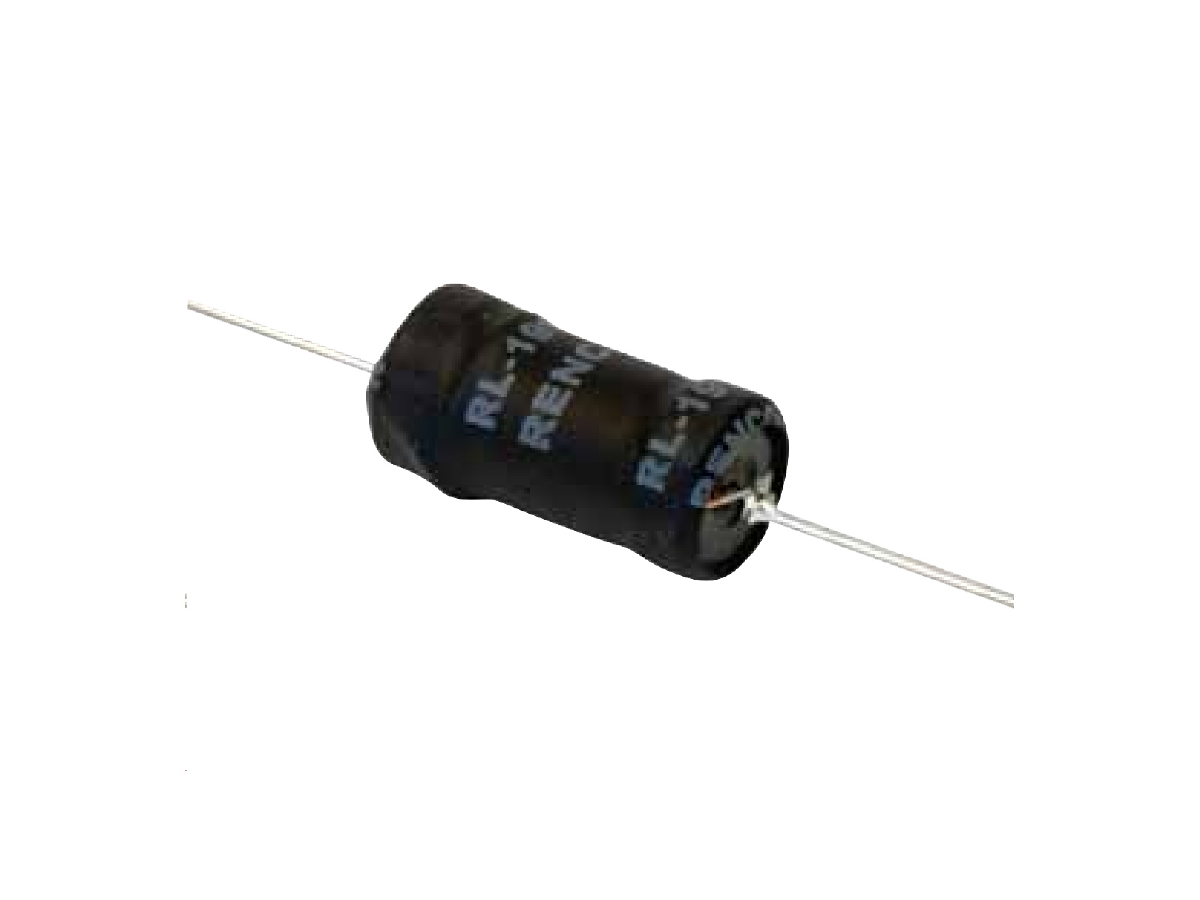

RL-1952 Through Hole Power Inductor
The RL-1952 Through Hole Power Inductor series is engineered for robust and compact performance in regulated power supply applications. Featuring an axial-leaded configuration and a consistent cylindrical form factor, it provides reliable mechanical stability during mounting and operation. The RL-1952 series is compatible with automated assembly processes, supporting efficient production workflows. Its consistent geometry across variants allows for simplified board layout in high-density designs.
- Axial-leaded construction for easy PCB mounting
- Standardized footprint for consistent board layout
- Low-profile cylindrical housing
- Reliable tinned copper wire leads
- Lightweight design (2.9g) suitable for compact assemblies
- Compatible with high-saturation applications
- Stable performance across operating temperature range
- RoHS-compliant construction
- Inductance Range: 100 µH to 680 µH
- Saturation Current Range: 0.70 A to 2.79 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Part Weight: 2.9 g (0.10 oz)
- Maximum Body Diameter (A): 0.453 in (11.51 mm)
- Minimum Lead Length (B): 1.00 in (25.40 mm)
- Maximum Overall Length (C): 0.900 in (22.86 mm)
- Lead Wire Type: 20 AWG, 0.032 in (0.81 mm) tinned copper
The RL-1952 inductor series is well-suited for switching power supply circuits, particularly where compact size and reliable current handling are essential. Common applications include DC-DC converters, telecom equipment, and point-of-load regulators. Its axial configuration makes it a solid choice for through-hole designs requiring robust mechanical stability.
