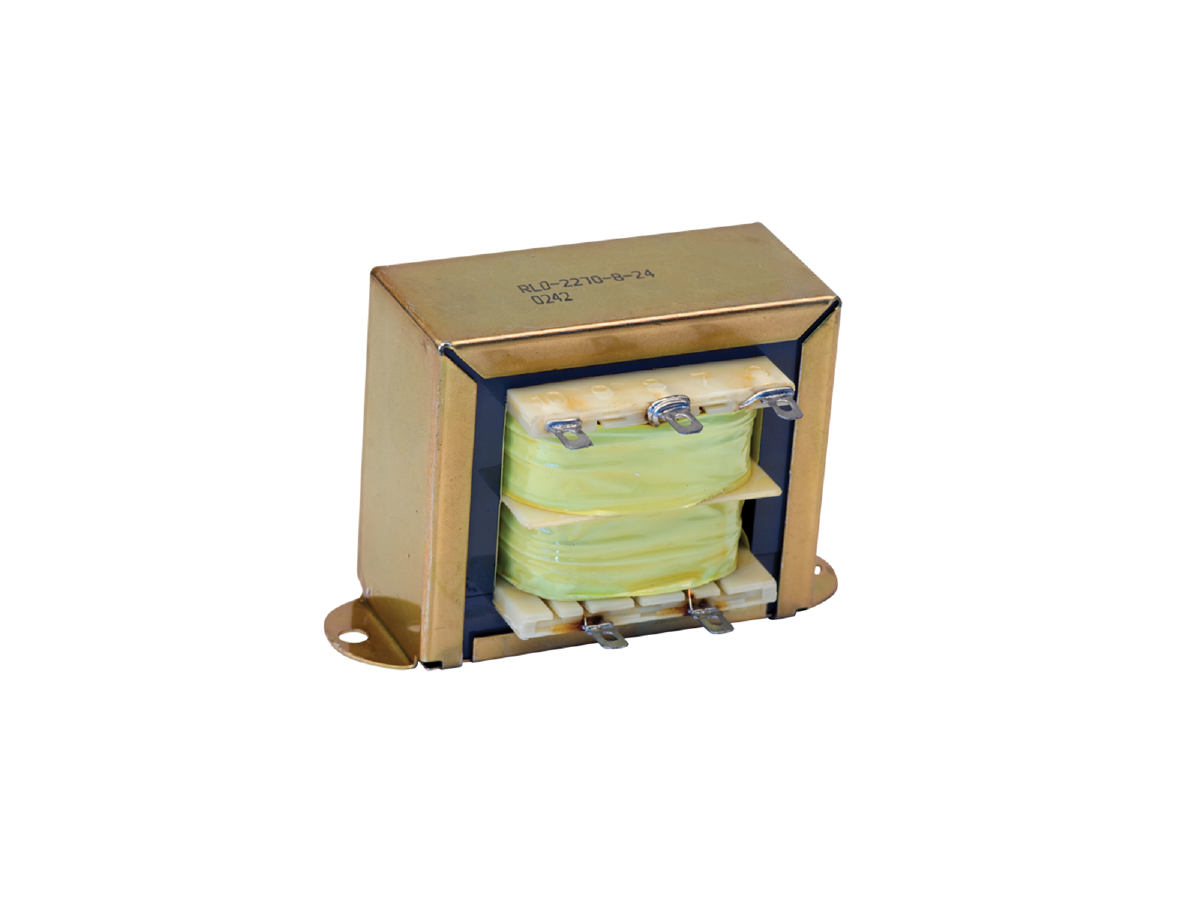

RLD-2270 Linear Transformer
The RLD-2270 Linear Transformer series is engineered for dependable voltage conversion and electrical isolation. Their robust split bobbin construction reduces capacitive coupling, enhancing performance in sensitive circuits. Designed for chassis-mounted integration, these transformers support versatile power configurations and maintain consistent operation under demanding conditions.
- Low capacitive coupling design for improved isolation
- Split bobbin construction eliminates need for electrostatic shielding
- Dual primary windings for flexible input voltage configurations
- Center-tapped secondary for versatile output options
- HIPOT tested to ensure electrical safety
- Durable Class B insulation for long-term reliability
- Quick-connect or solder lug terminal compatibility
- Input Voltage: 115/230 V, 50/60 Hz
- VA Ratings: 6 VA to 100 VA
- Insulation Class: Class B (130°C)
- HIPOT Test Voltage: 2500 VRMS
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Primary Windings: Single or dual
- Secondary: Single center-tapped
The RLD-2270 transformer series is well-suited for industrial controls, instrumentation, audio equipment, and power supplies requiring stable voltage conversion. Its chassis-mount format and rugged design make it ideal for OEM assemblies and custom applications needing reliable performance and isolation.
