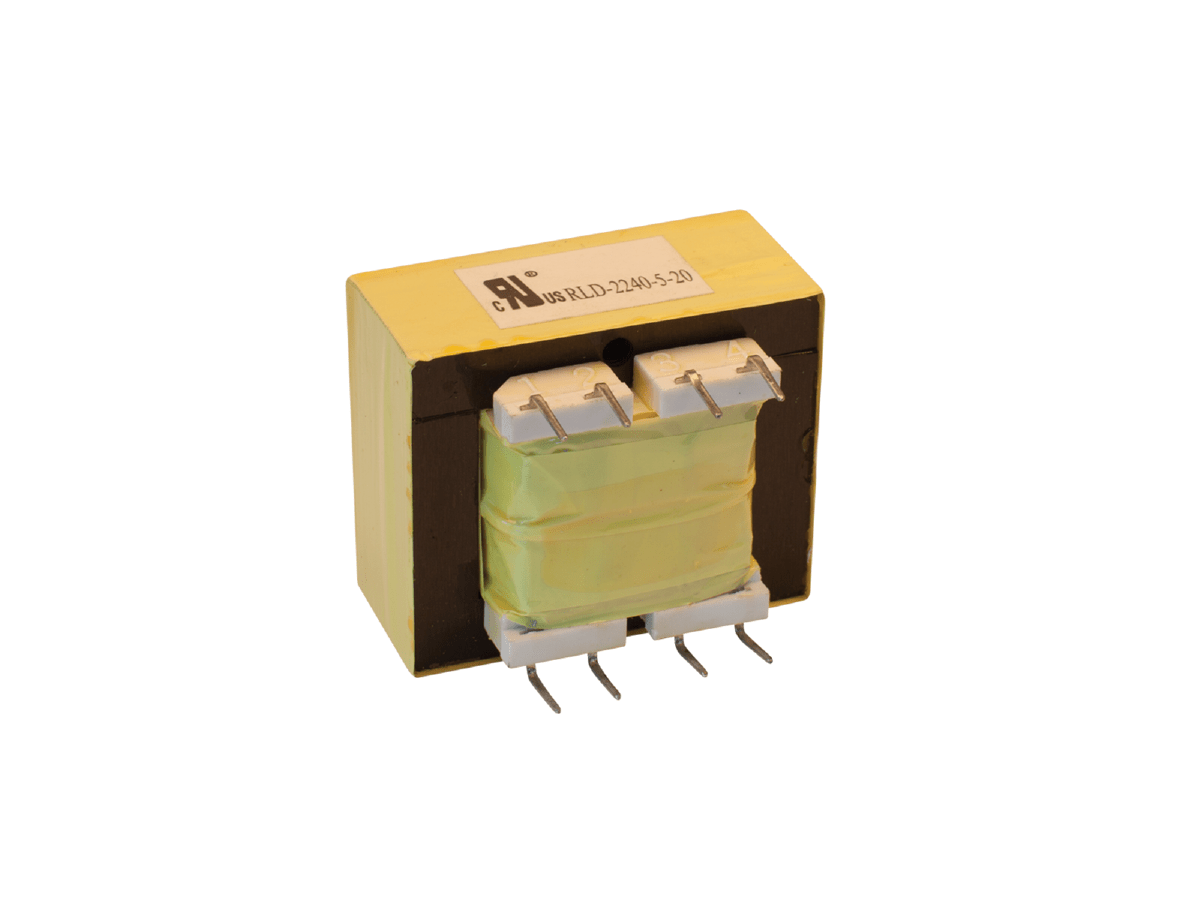

RLD-2240 Linear Transformer
The RLD-2240 Linear Transformer series is designed for reliable 50/60Hz operation, delivering stable performance in a range of power supply designs. Its split bobbin and nonconcentric winding construction optimize electrical separation between windings, ensuring dependable isolation. These transformers are manufactured for consistent performance and built to meet safety and quality standards for demanding applications.
- Split bobbin construction for enhanced electrical separation
- Nonconcentric winding to reduce interwinding capacitance
- Optimized design to eliminate electrostatic shielding requirements
- Prevention of lead crossover between primary and secondary windings
- Dual primary configuration for global voltage compatibility
- Rugged construction to meet UL and CSA compliance requirements
- Primary Voltage: 115VAC single or 115/230VAC dual
- Frequency: 50/60Hz
- Insulation Class: Class B (130°C)
- Dielectric Strength: 2500VAC
- Mounting Style: PC mount
- Configuration: Series or parallel secondaries
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
The RLD-2240 transformer series is suitable for power conversion, control equipment, and instrumentation systems that require robust isolation. It is frequently used in industrial electronics, audio systems, and specialized power supplies. Its dual primary design allows for deployment in both domestic and international markets where voltage compatibility is required.
