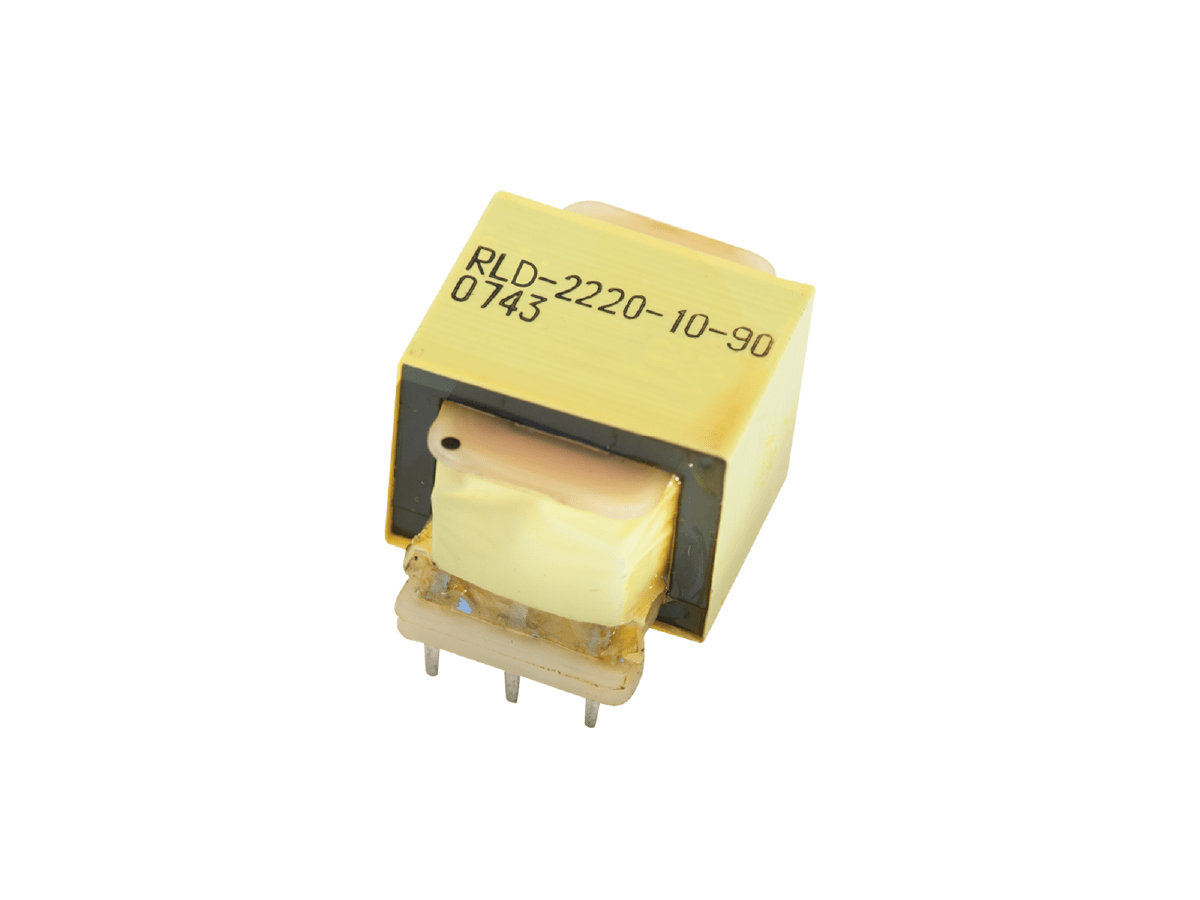

RLD-2220 Linear Transformer
The RLD-2220 Linear Transformer series is engineered for dependable PCB mount integration, supporting low-power requirements in compact designs. Their construction ensures consistent performance across the full rated frequency range, with stable voltage delivery in varied operating conditions. Built for durability, these transformers incorporate high-quality materials to support long-term service life in demanding environments.
- PCB mount configuration for compact installations
- Dual primary winding options for flexible design requirements
- Series or parallel secondary connections for adaptable output needs
- Class B insulation for high thermal reliability
- Robust construction for long-term operational stability
- Optional slide-on mounting brackets for simplified assembly
- Operating Frequency Range: 50 to 500 Hz
- Available Ratings: 1.0 VA, 1.2 VA, 4.4 VA, 10.0 VA, 24.0 VA
- Primary Voltage: 115 V or 115/230 V
- Hipot Test Voltage: 1500 VRMS
- Insulation Class: Class B (130°C)
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
The RLD-2220 transformer series is suitable for control systems, signal isolation, and low-voltage power conversion. It is commonly used in instrumentation, industrial automation, and commercial electronics. The compact footprint and versatile winding configurations make it an excellent choice for space-sensitive designs.
