Rl-7100 Current Sense Transformer

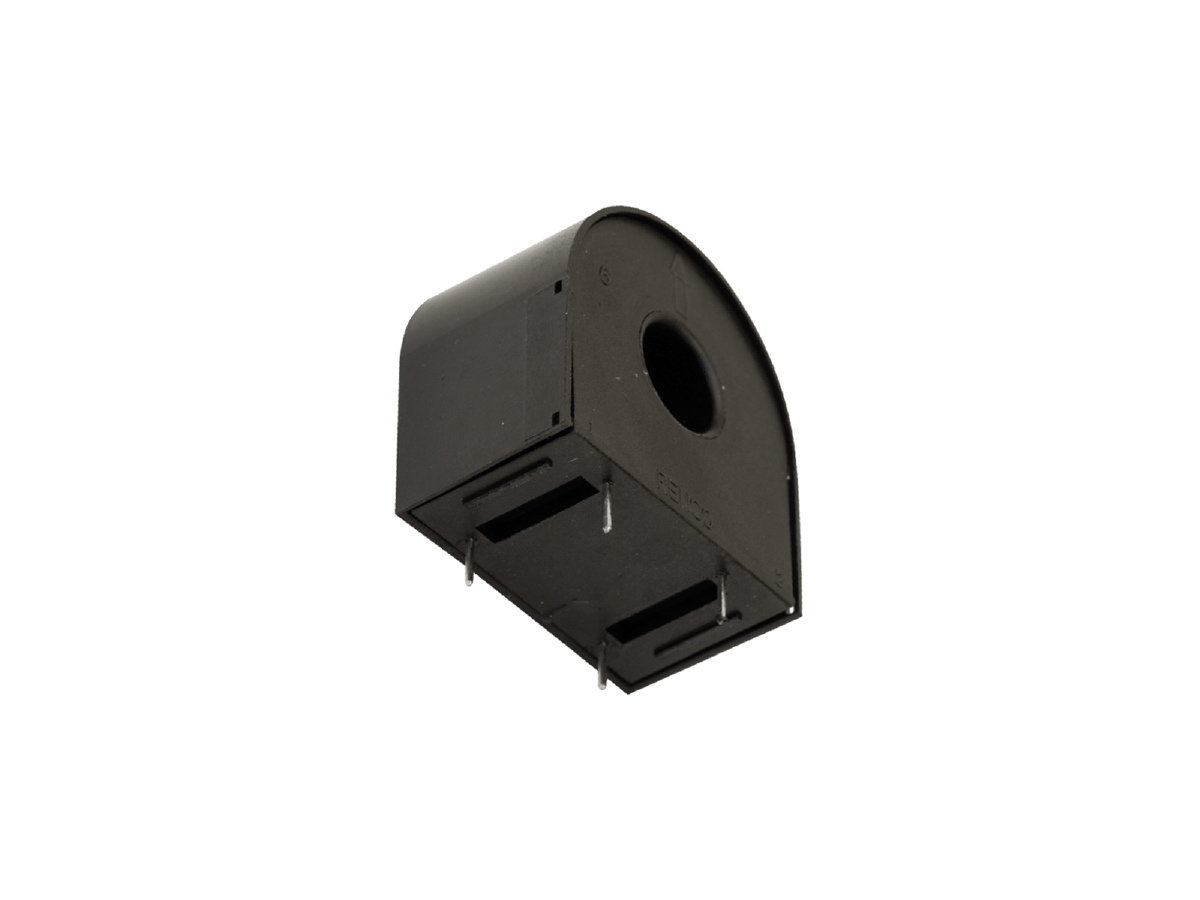

The RL-7100 Current Sense Transformer series is engineered for reliable, economical current monitoring in 50/60 Hz applications. Built with a molded aperture and PC board–mountable design, it is suited for use with insulated conductors while meeting safety requirements such as IEC 360. Its durable construction supports long-term operation in demanding environments, with the flexibility to accommodate design variations for custom applications.
- Compact PC board–mountable construction
- Rugged molded aperture for primary conductors
- Compliance with IEC, VDE, and UL standards
- Reliable performance over a wide frequency range
- Cost-effective solution for current sensing
- Versatile design adaptable for custom requirements
- Current Range: Up to 200 A
- Frequency Range: 47–400 Hz
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +130°C
- Maximum Height: 42.67 mm (1.68 in)
- Maximum Width: 36.32 mm (1.43 in)
- Maximum Length: 37.08 mm (1.46 in)
- Weight: 49.0 g (1.72 oz)
The RL-7100 transformer series is designed for integration into switch gear, power distribution systems, and load sensing circuits. It is well suited for monitoring power demand, detecting device faults, and verifying operational load status across industrial and commercial installations.
