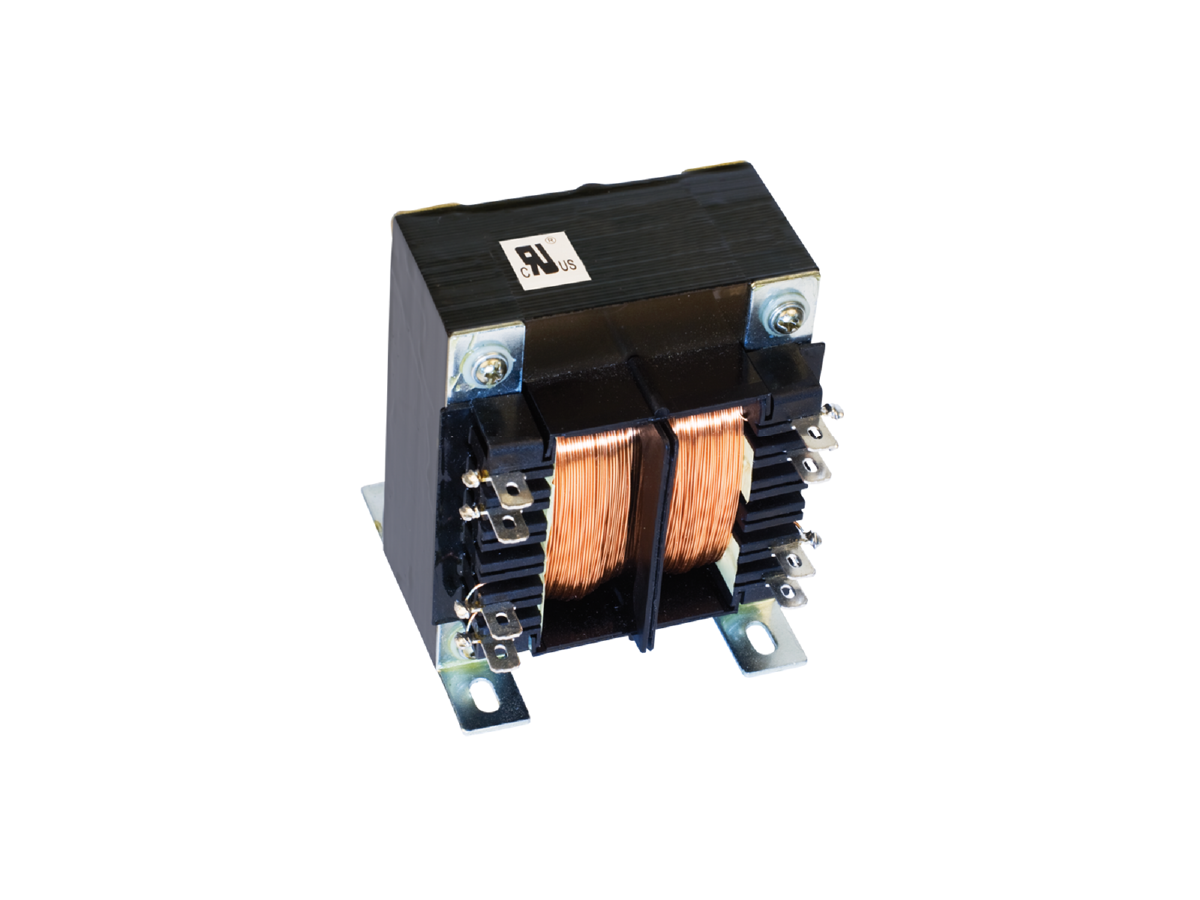

RL-2260 Linear Transformer
The RL-2260 Linear Transformer series is engineered for reliable operation in demanding power applications, meeting UL, CSA, VDE, and IEC requirements. Designed with low interwinding capacitance and a shrouded enclosure, it ensures superior electrical isolation and reduced EMI risk. This series is constructed for easy PCB mounting, offering compact form factors and dependable performance in both commercial and industrial systems.
- Meets UL, CSA, VDE, and IEC specifications
- Low interwinding capacitance for enhanced electrical isolation
- Shrouded design eliminates need for electrostatic shielding
- Supplied with durable mounting brackets for secure installation
- Quick connector solder terminals for simplified wiring
- High-voltage insulation ensures long-term reliability
- VA Range: 80 VA to 175 VA
- Primary Voltage: 115 V / 230 V, 50/60 Hz
- Insulation Class: Class B (130°C)
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Hipot Test: 4000 VRMS 60 Hz 2 seconds winding to winding, windings to core
- Mounting Type: PCB mount with laminated core construction
The RL-2260 transfomer series is well-suited for use in power conversion, control equipment, and isolation circuits. Its rugged construction and compact footprint make it ideal for industrial control systems, power distribution equipment, and applications requiring dependable electrical isolation in confined spaces.
