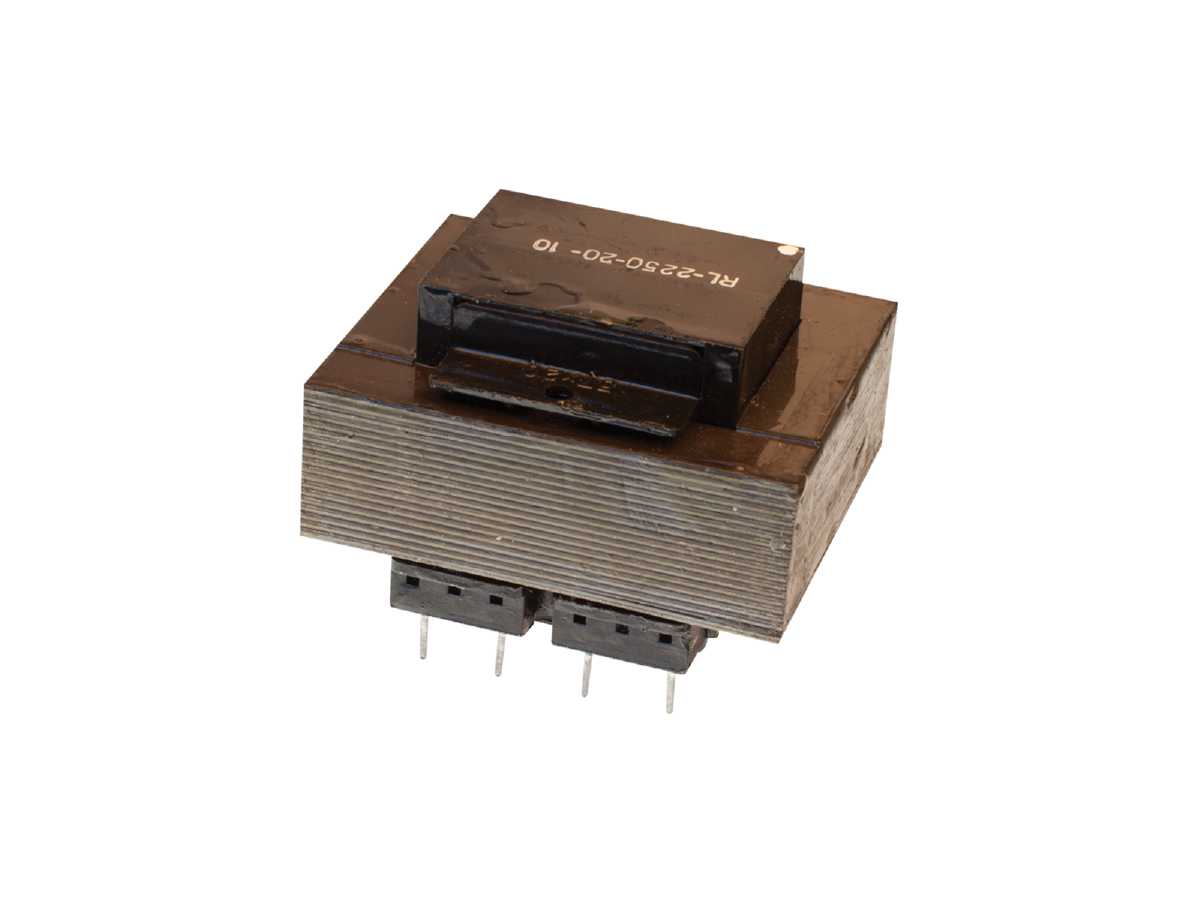

RL-2250 Linear Transformer
The RL-2250 Linear Transformer series is engineered for superior performance in applications requiring high reliability and minimal electromagnetic interference. Designed with an advanced dual bobbin non-concentric construction, this transformer reduces interwinding capacitance while eliminating the need for electrostatic shielding. Balanced windings prevent primary circulating currents, ensuring stable and efficient operation. Built from high-temperature, high-stability materials, the RL-2250 offers excellent insulation integrity and mechanical strength for demanding environments.
- Meets or exceeds UL, CSA, VDE, and IEC specifications
- Dual bobbin non-concentric design for reduced capacitance
- Balanced windings to eliminate primary circulating currents
- High-temperature materials for improved insulation stability
- PC plug-in mounting with multiple VA ratings
- Slots in bobbin flanges for improved lead termination
- HIPOT tested at 4000 Volts RMS
- Class B 130°C insulation rating
- HIPOT Test Voltage: 4000 Volts RMS
- Insulation Class: Class B (130°C)
- Power Range: 2.5 to 56 VA
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +130°C
- Mounting Style: PC plug-in
- Design Standards: UL, CSA, VDE, IEC compliant
The RL-2250 transformer series is well-suited for use in precision instrumentation, control systems, and power supplies requiring high dielectric strength and minimal EMI. Its robust design and insulation integrity make it ideal for applications in industrial equipment, telecommunications, and medical electronics. With a wide range of power ratings, it offers flexibility for both compact and higher-power transformer requirements.
