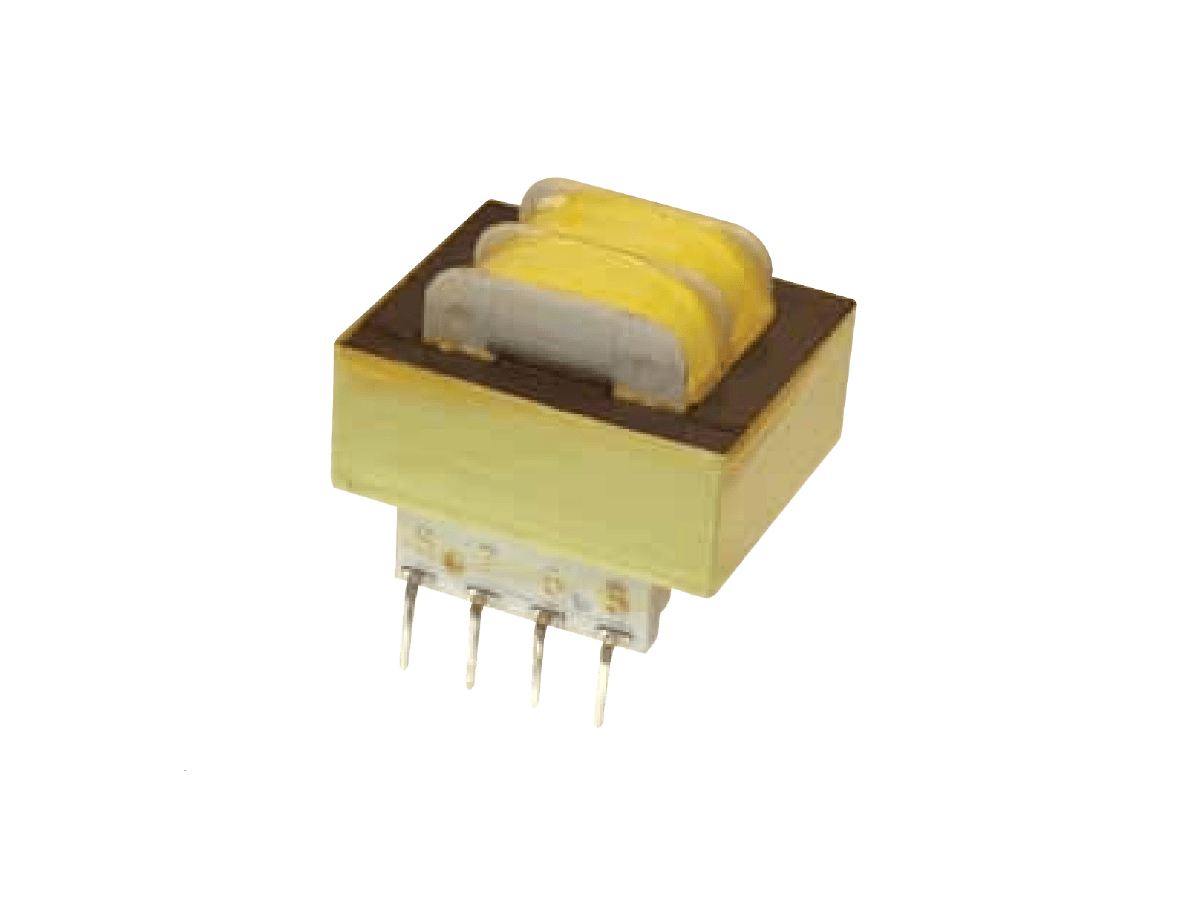

RL-2240 Linear Transformer
The RL‑2240 Linear Transformer series is designed for reliable performance in compact PCB-mounted power applications. Its construction incorporates split bobbins and nonconcentric winding layouts, enabling high electrical isolation and reduced coupling between windings. The series offers dual primary capability to accommodate a range of input voltages, making it adaptable for varied global installations. With its precision design, it provides stable operation even in environments requiring minimal noise and high safety margins.
- Split bobbin design for optimized isolation
- Reduced interwinding capacitance for enhanced performance
- Dual primary inputs supporting 115 VAC or 230 VAC
- Designed for compact PCB integration
- High mechanical durability for long service life
- Manufactured to stringent UL and CSA compliance standards
- Engineered for consistent performance under demanding conditions
- Primary Voltage: 115/230 VAC
- Frequency: 50/60 Hz
- Test Voltage: 2500 VAC HIPOT
- Insulation Class: Class B (130°C)
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Mounting: PCB
- Construction Type: Split bobbin, nonconcentric winding
The RL‑2240 transformer series is well suited for use in power conversion systems, instrumentation, and control equipment that require isolated outputs. It supports both domestic and international input voltages, making it versatile for equipment designed for export or multi-region use. The series is ideal for circuits where electrical isolation, compact form factor, and reliable transformer performance are essential.
