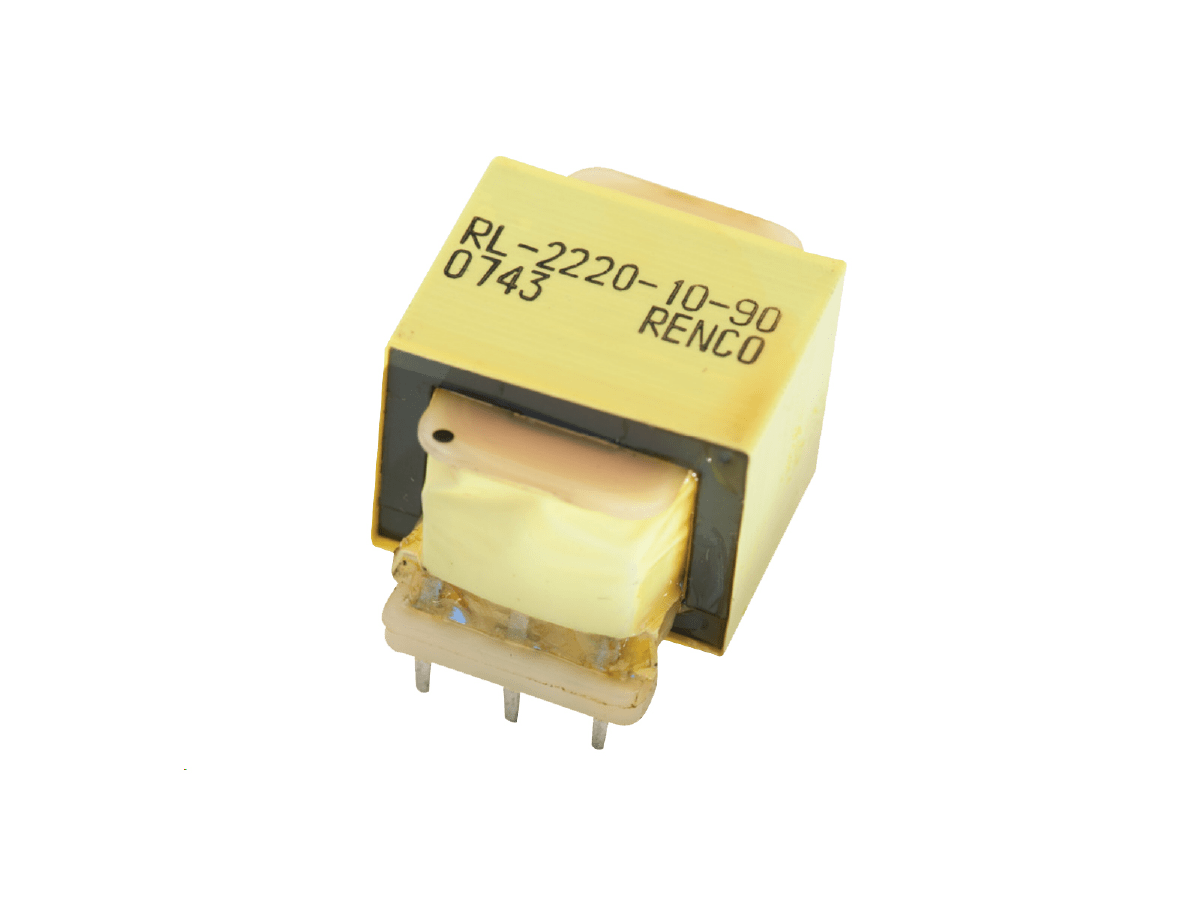

RL-2220 Linear Transformer
The RL‑2220 Linear Transformer series is a compact PCB‑mount solution built for dependable low‑power performance in a variety of AC applications. Designed with precision winding and robust insulation, these transformers maintain stable operation across a broad frequency range without sacrificing output quality. Their versatile configuration supports efficient integration into PCB layouts, while the rugged design ensures long‑term reliability in demanding electrical systems.
- Supports single or dual primary configurations
- Secondary windings adaptable for series or parallel connections
- UL Recognized for electrical safety compliance
- Class B insulation for thermal endurance
- Compact PCB‑mount design for space‑efficient installation
- Compatible with optional slide‑on mounting brackets
- Precision construction for consistent electrical performance
- Frequency Range: 50–500 Hz
- Power Ratings: 1.0 VA, 1.2 VA, 4.4 VA, 10.0 VA, 24.0 VA
- Primary Voltage: 115 V or 115/230 V
- Insulation Class: Class B (130°C)
- Hipot Test Voltage: 1500 VRMS
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
The RL‑2220 transformer series is well suited for instrumentation, control circuitry, and industrial automation systems where reliable low‑power voltage conversion is needed. It is commonly used in isolated power supplies, signal interface circuits, and other PCB‑integrated systems requiring compact, thermally stable transformers.
