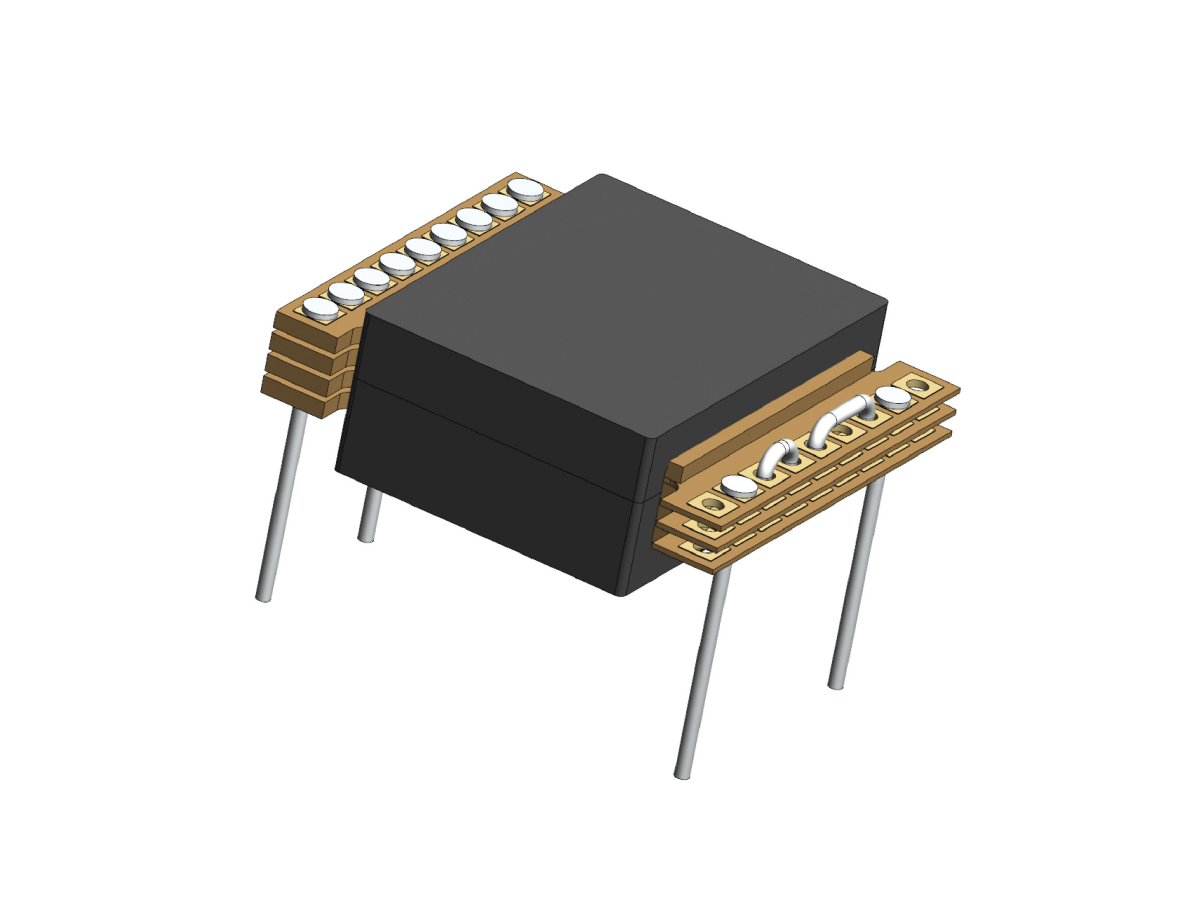

P110 150W-700W Planar Transformer
The P110 Planar Transformer series is a high-power magnetic component designed to support power levels between 150W and 700W. Built with a large core window and efficient winding layout, it provides excellent current handling capabilities while maintaining low thermal resistance. Its low-profile design is compatible with modern high-density power systems, and it offers both surface mount and through-hole options for layout flexibility. The P110 ensures high electrical isolation and is optimized for demanding industrial and commercial applications.
- High current support with minimal resistive loss
- Compact form factor with optimized core geometry
- Low parasitic characteristics for improved switching speed
- Thermally efficient construction for heat dissipation
- Suitable for wide input voltage ranges
- Consistent pin layout for automated assembly
- Supports forward, flyback, and active clamp topologies
- Available in both SMD and TH variants
- Power Rating: 150W–700W
- Max Load Current: 80A (SMD), 100A (TH)
- Frequency Range: ~20kHz–1MHz+
- Isolation Voltage: 500–2000VDC
- Topologies Supported: Forward, Flyback
- Typical Dimensions (LxWxH): 47.3 x 42.8 x 11.0 mm
- Primary Resistance (SMD): ~1.4mOhm max
- Leakage Inductance (Pri/Sec): ~0.2uH typ.
- Efficiency (48V in / 400W out): ~97.0 percent
- Operating Ambient Temperature: -20C to +85C
The P110 transformer series is ideal for high-power applications where space efficiency and thermal performance are critical. It is commonly used in electric vehicle chargers, industrial automation, power inverters, data center power modules, and aerospace systems. Its robust structure and flexible mounting options make it well-suited for use in harsh environments and mission-critical designs.
