Low Temperature Co-Fired Ceramic Transformers

Compact, Durable, and Built for Demanding Environments

NASCENTechnology, a Standex Electronics company, designs and manufactures Low Temperature Co-Fired Ceramic transformers for high-reliability applications where performance, strength, and compact design are essential.

These transformers are created by layering and firing ferrite ceramic tapes with printed silver windings, producing a solid ceramic structure that is both durable and compact. This co-fired process results in exceptional electrical performance and reliability while significantly reducing size and weight.

Manufactured in ISO 9001:2015 and AS9100D certified facilities, these transformers offer complete traceability and can be tailored to meet unique electrical, thermal, and mechanical requirements.

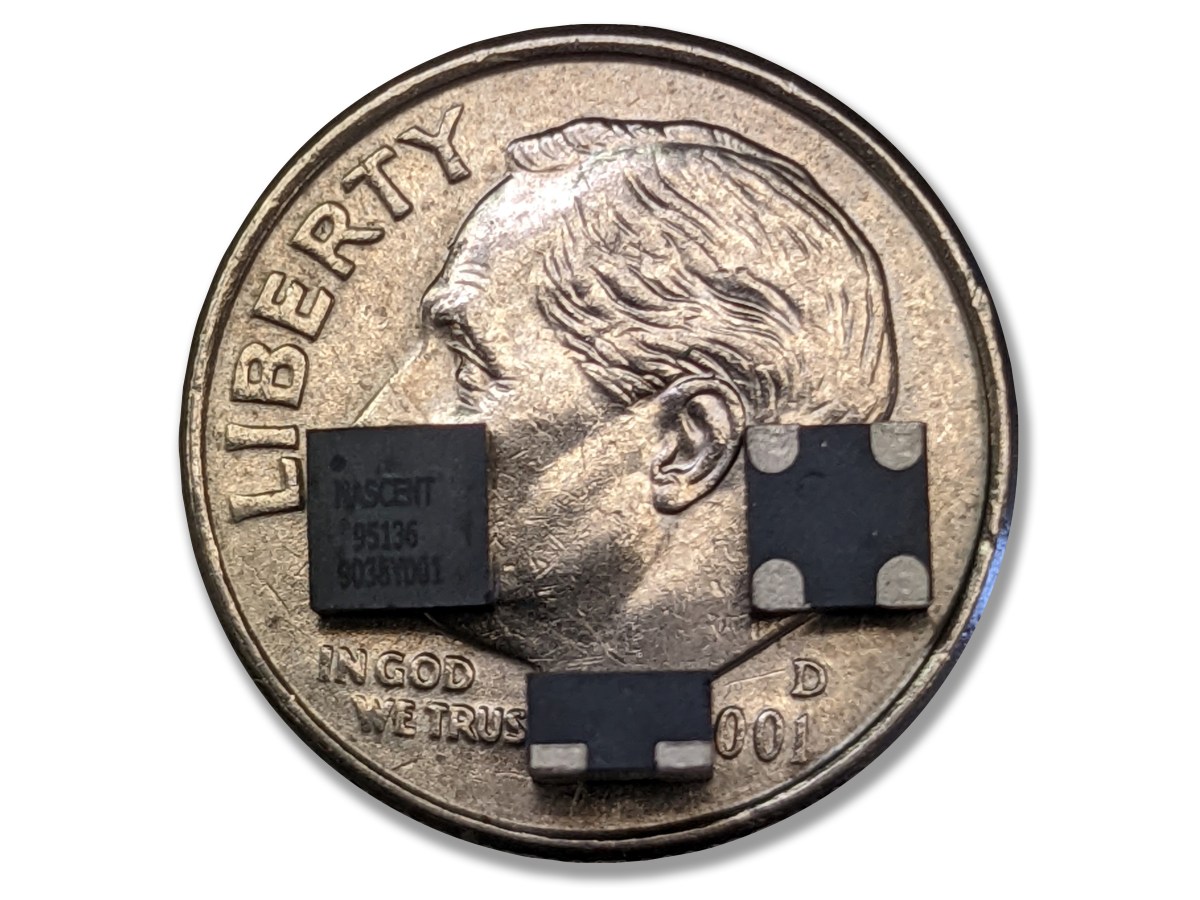

  • Compact, thin, and lightweight design that is less than half the size of traditional wire-wound transformers
  • Rugged ceramic core with embedded silver windings
  • Operates from -45 °C to +250 °C and withstands high shock and vibration
  • Millions of charge and discharge cycles with complete performance data available

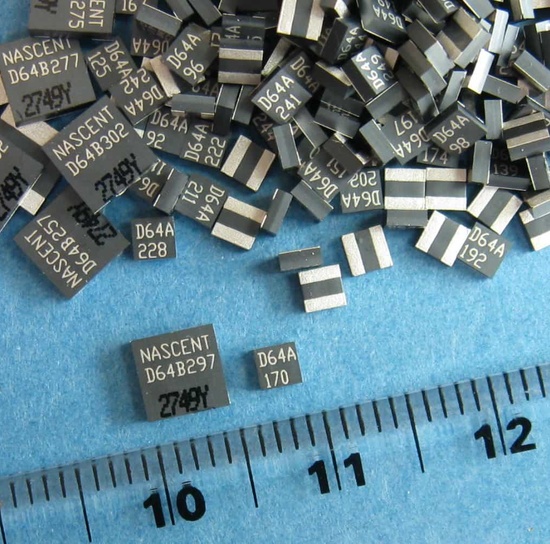

  • Multiple shapes available, including round and rectangular formats

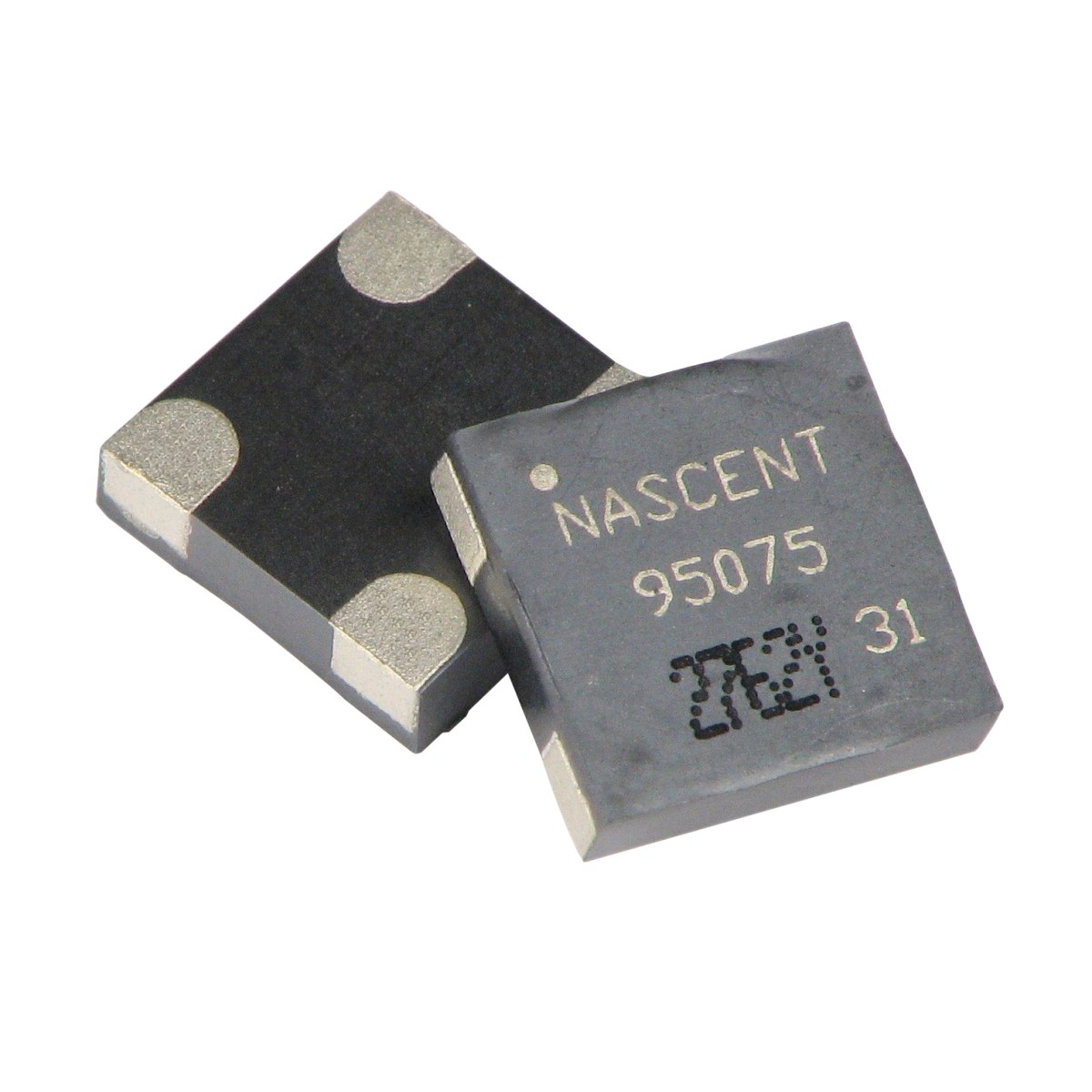

  • Flexible co-fired termination styles and positions
  • Integration with thick-film or co-fired circuits for hybrid assemblies
  • Available as ITAR or COTS EAR99 standard designs
  • Manufactured in a clean-room environment with full serial-number traceability
ParameterTypical Range or Capability
Operating Temperature-45 °C to +250 °C
Power RangeMilliwatts to 250 W
Core MaterialLow Temperature Co-Fired Ferrite Ceramic
ConductorSilver
ConstructionMultilayer co-fired laminate, up to 40 layers
TerminationsCustomizable pads or leads
ShieldingSelf-shielded
ComplianceISO 9001:2015 / AS9100D / ITAR / EAR99

Low Temperature Co-Fired Ceramic transformers and inductors are designed for markets that demand high reliability and high temperature performance.

  • Defense and Aerospace: UAVs, electronic safe-and-arm systems, DC-DC converters
  • Oil and Gas: down-hole drilling and geothermal exploration
  • Industrial and Automation: compact and vibration-resistant power modules
  • Medical: small, high-reliability power conversion components
  • Agriculture and Construction: durable electronics for harsh environments
  • Research and Development: advanced multilayer magnetic integration
