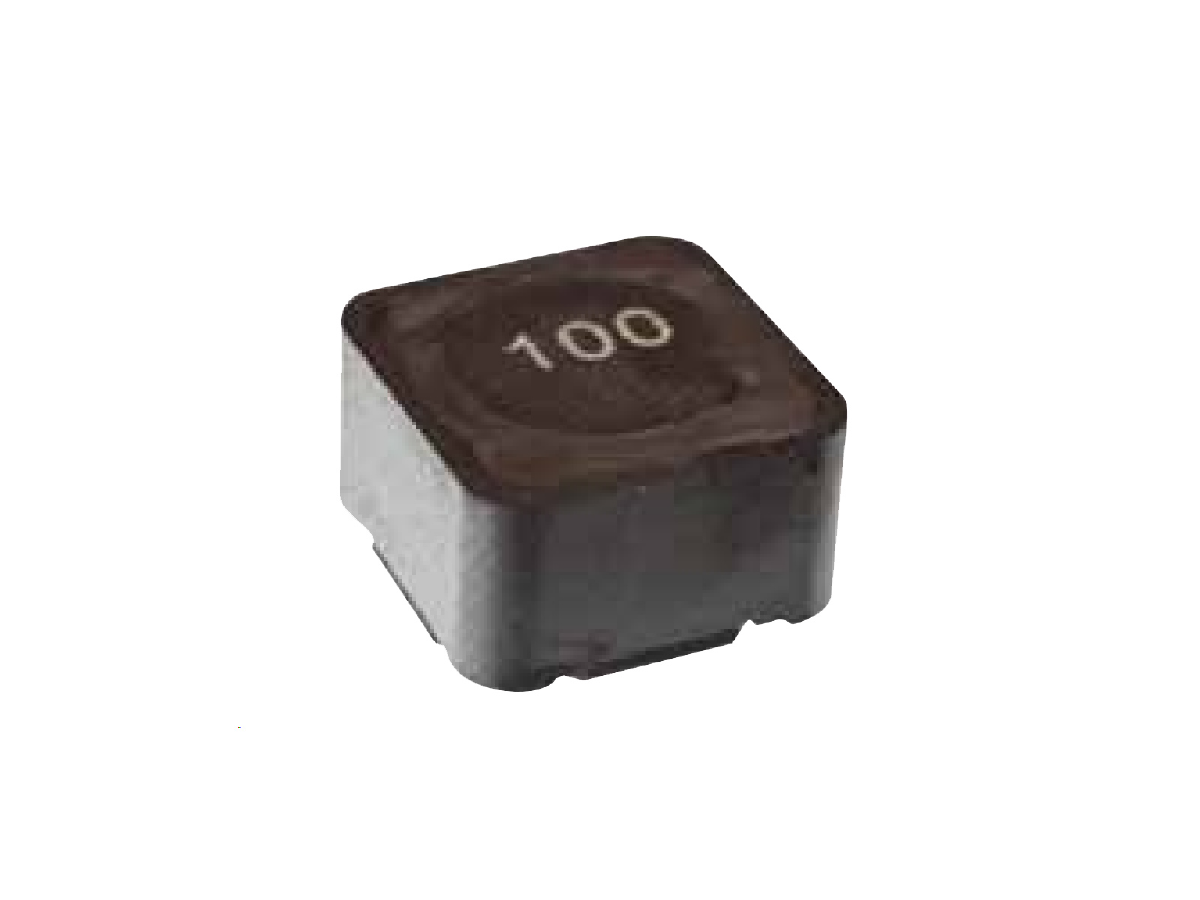

RLD-7500 Surface Mount Power Inductor
The RLD-7500 Surface Mount Power Inductor series is engineered for high-current applications where efficiency and compact size are critical. With dual windings in a 1:1 turns ratio, these inductors offer design flexibility for use in series or parallel configurations. Their shielded construction minimizes electromagnetic interference, ensuring stable operation in demanding power conversion environments. Optimized for DC-DC converters, these inductors provide low losses and reliable performance in space-constrained designs.
- Shielded dual winding construction
- High current carrying capability
- Low resistance for reduced power losses
- Supports series or parallel winding configurations
- Compact SMD package for space efficiency
- RoHS compliant
- Durable construction for long service life
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +130°C
- Turns Ratio: 1:1
- Part Weight: 3.0g to 4.0g depending on model
- Maximum Dimensions: 7.50mm to 12.80mm depending on model
The RLD-7500 inductor series is ideal for high-performance DC-DC conversion in notebook computers, storage devices, and consumer electronics. They are well suited for buck, boost, SEPIC, and flyback topologies where low EMI and high current handling are required. These inductors are commonly used in input/output filtering and coupled inductor configurations in space-limited designs.
