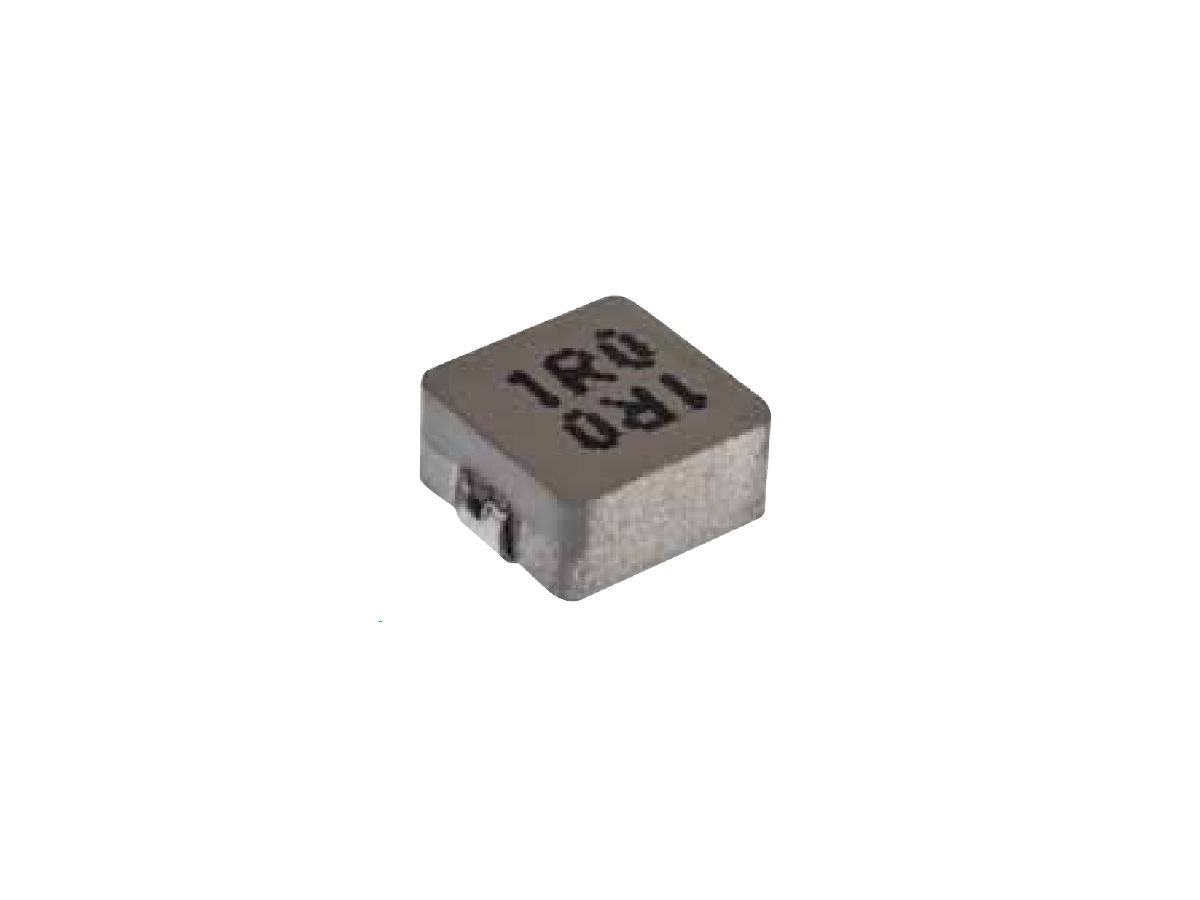

RL-9580 Surface Mount Power Inductor
The RL‑9580 Surface Mount Power Inductor series delivers high current handling performance in a low‑profile package. Its compact design makes it ideal for modern power electronics where space efficiency is critical. Engineered with a robust magnetic structure, the series ensures stable inductance and low losses under dynamic load conditions. This combination of electrical performance and mechanical durability makes the RL‑9580 well‑suited for demanding, space‑constrained applications.
- Lowest profile design in this package size
- Shielded magnetic construction for minimized EMI
- Optimized winding for minimal DCR per μH
- High saturation current capability without performance degradation
- Excellent thermal performance for reliability under load
- Frequency capability up to 5 MHz
- Composite core material for reduced magnetic losses
- Inductance Range: Values vary by part, from 1.2 μH to 7.0 μH
- DCR (Max): As low as 0.020 Ω depending on part number
- Saturation Current: Up to 12.0 A depending on inductance value
- Operating Temperature Range: ‑40°C to +130°C
- Storage Temperature Range: ‑55°C to +130°C
- Frequency Range: Up to 5 MHz
- Shielding: Magnetic shielding
- Package Type: Surface mount construction
The RL‑9580 inductor series is used in high‑current DC‑DC converters, point‑of‑load regulators, and power supply filtering in compact systems. It is well‑suited for notebooks, desktops, servers, and other electronics requiring high current delivery in a low‑profile footprint. Its mechanical robustness and electrical efficiency make it ideal for designs where thermal performance and compact size are critical.
