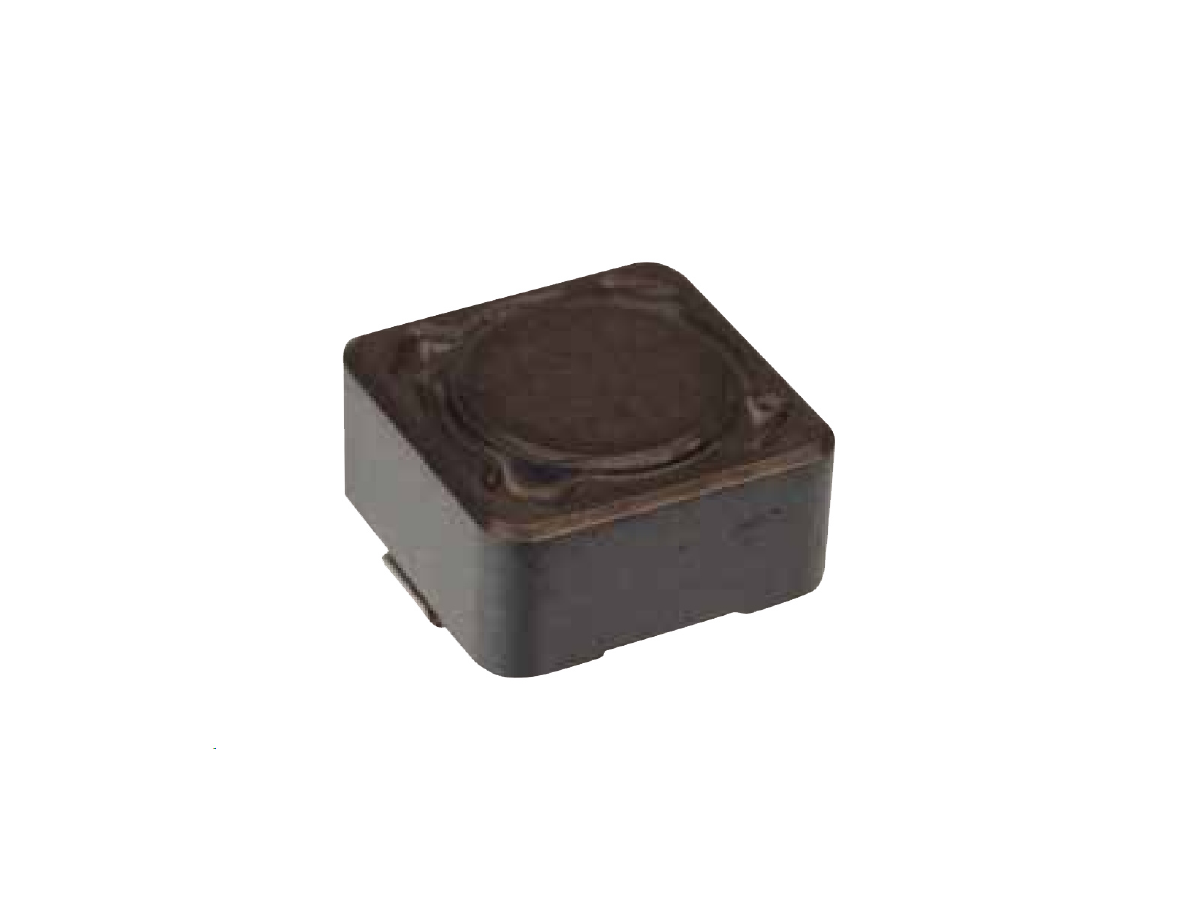

RL-8700 Surface Mount Power Inductor
The RL-8700 Surface Mount Power Inductor series provides a compact, low-profile solution for modern DC-DC converter applications. Engineered for high performance in space-constrained designs, these inductors combine low loss operation with robust shielding to minimize electromagnetic interference. Their small footprint and reliable construction make them ideal for portable electronics and computing applications requiring efficient power conversion.
- Low profile and compact design
- Shielded construction for EMI reduction
- Optimized for DC-DC converter applications
- Durable construction for long-term reliability
- Wide operating temperature range
- Compatible with high-density board layouts
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Maximum Height (RL-8700-1): 0.27 in (6.90 mm)
- Maximum Width (RL-8700-1): 0.24 in (6.20 mm)
- Maximum Length (RL-8700-1): 0.12 in (3.00 mm)
- Weight (RL-8700-1): 0.8 g (0.03 oz)
- Maximum Height (RL-8700-2): 0.27 in (6.90 mm)
- Maximum Width (RL-8700-2): 0.24 in (6.20 mm)
- Maximum Length (RL-8700-2): 0.20 in (5.00 mm)
- Weight (RL-8700-2): 0.9 g (0.03 oz)
The RL-8700 inductor series is well-suited for DC-DC converters in laptop computers, portable electronics, and other compact devices that require low-profile, high-efficiency inductors. Its shielded design ensures reduced electromagnetic interference, making it a reliable choice for sensitive circuits and high-density applications.
