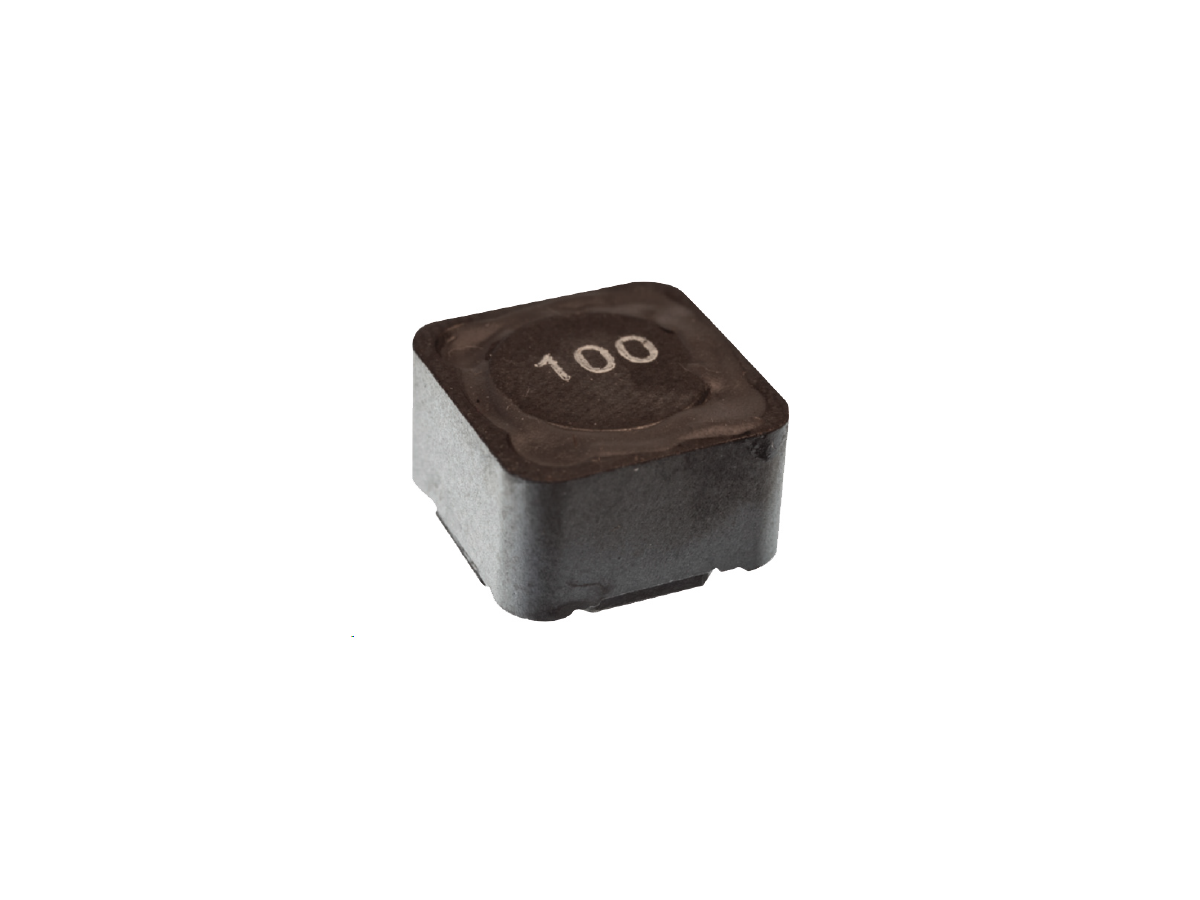

RL-7500 Surface Mount Power Inductor
The RL-7500 Surface Mount Power Inductor series is engineered for high efficiency in compact applications. These magnetically shielded inductors provide high current capacity while minimizing power losses due to their low DC resistance design. Their robust construction supports reliable performance in demanding power supply and DC-DC conversion circuits. This series is well-suited for high-density electronic equipment requiring compact, efficient power conversion.
- Magnetic shielded construction for reduced EMI
- High current handling capability
- Low DC resistance for minimized power loss
- Compact surface mount design
- Optimized for DC-DC conversion use
- Durable construction for high-reliability applications
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +130°C
- Maximum Dimensions: 12.80 mm x 12.80 mm footprint (varies by model)
- Height Range: 3.90 mm to 10.00 mm depending on model
- Reference D Dimension: 7.00 mm
- Reference E Dimension: 2.80 mm
- Reference F Dimension: 5.40 mm
- Part Weight Range: 3.0 g to 5.49 g depending on model
The RL-7500 inductor series is ideal for DC-DC conversion in power line applications, including use in notebook computers, hard disk drives, and other space-constrained electronic devices. Its shielded design and low resistance make it well-suited for reducing EMI and improving efficiency in high-current circuits.
