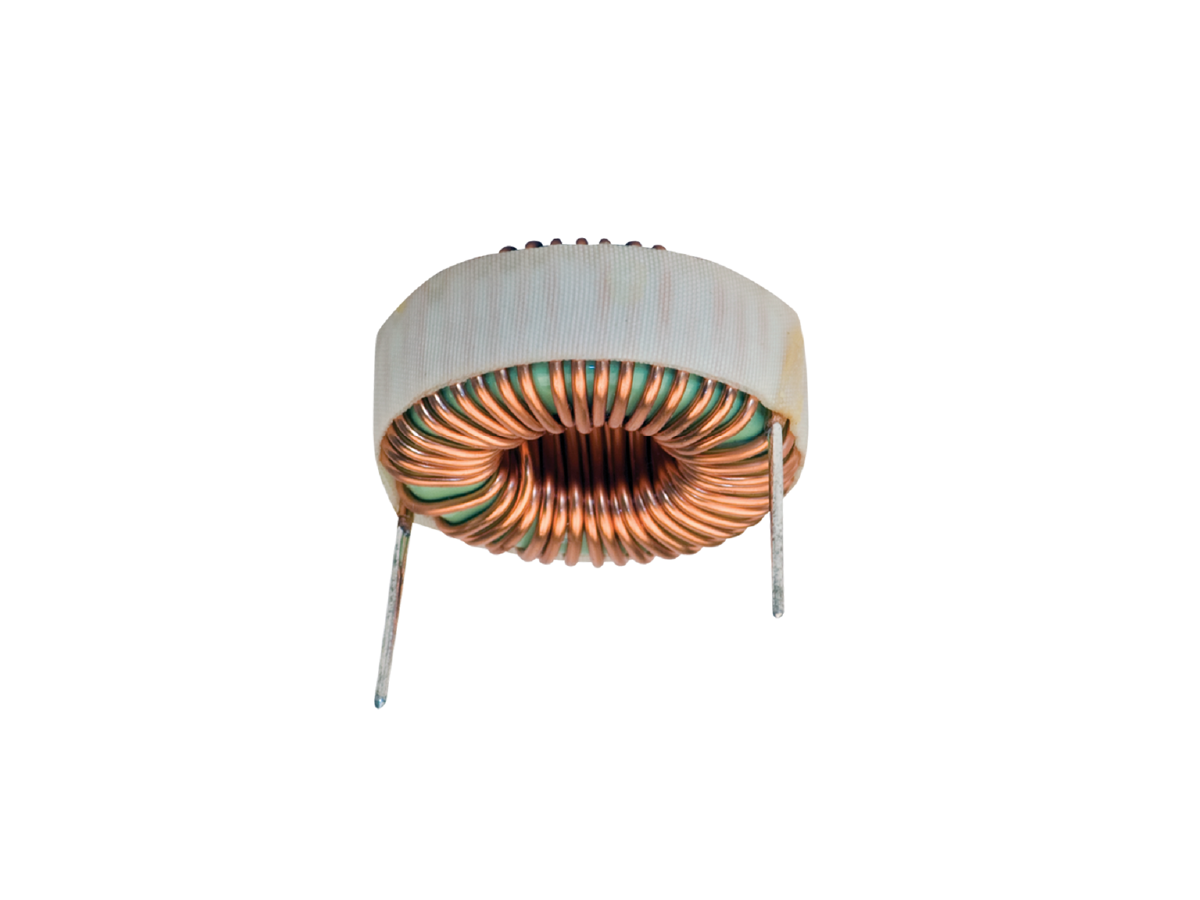

RL-6100 Through Hole Power Inductor
The RL-6100 Through Hole Power Inductor series is designed for efficient performance in switching power supply applications. Capable of operating at frequencies up to 200 kHz, these inductors provide reliable power handling in both horizontal and vertical mount configurations. Built with linear, low-loss core materials, the RL-6100 offers stable performance and reduced core losses, making it suitable for a wide range of applications requiring a toroidal inductor. Its robust construction ensures dependable operation in demanding environments.
- Efficient operation at high switching frequencies
- Low-loss core material for reduced energy dissipation
- Compatible with horizontal and vertical mounting configurations
- Wide range of sizes for design flexibility
- Optimized for switching power supply applications
- Durable construction for long-term performance
- Operating frequency: Up to 200 kHz
- Mounting style: Horizontal and vertical options
- Storage temperature range: -55°C to +130°C
- Operating temperature range: -40°C to +130°C
- Maximum dimensions (largest model): 2.100 in (53.34 mm) x 2.000 in (50.80 mm) x 1.500 in (38.10 mm)
- Typical dimensions (smallest model): 0.700 in (17.75 mm) x 0.780 in (19.81 mm) x 0.600 in (15.24 mm)
The RL-6100 inductor series is ideal for switching power supply circuits requiring high efficiency and low loss. It supports applications in both horizontal and vertical mount configurations, providing design flexibility for space-constrained layouts. These inductors are also suitable for general-purpose circuits requiring stable performance at high switching frequencies.
