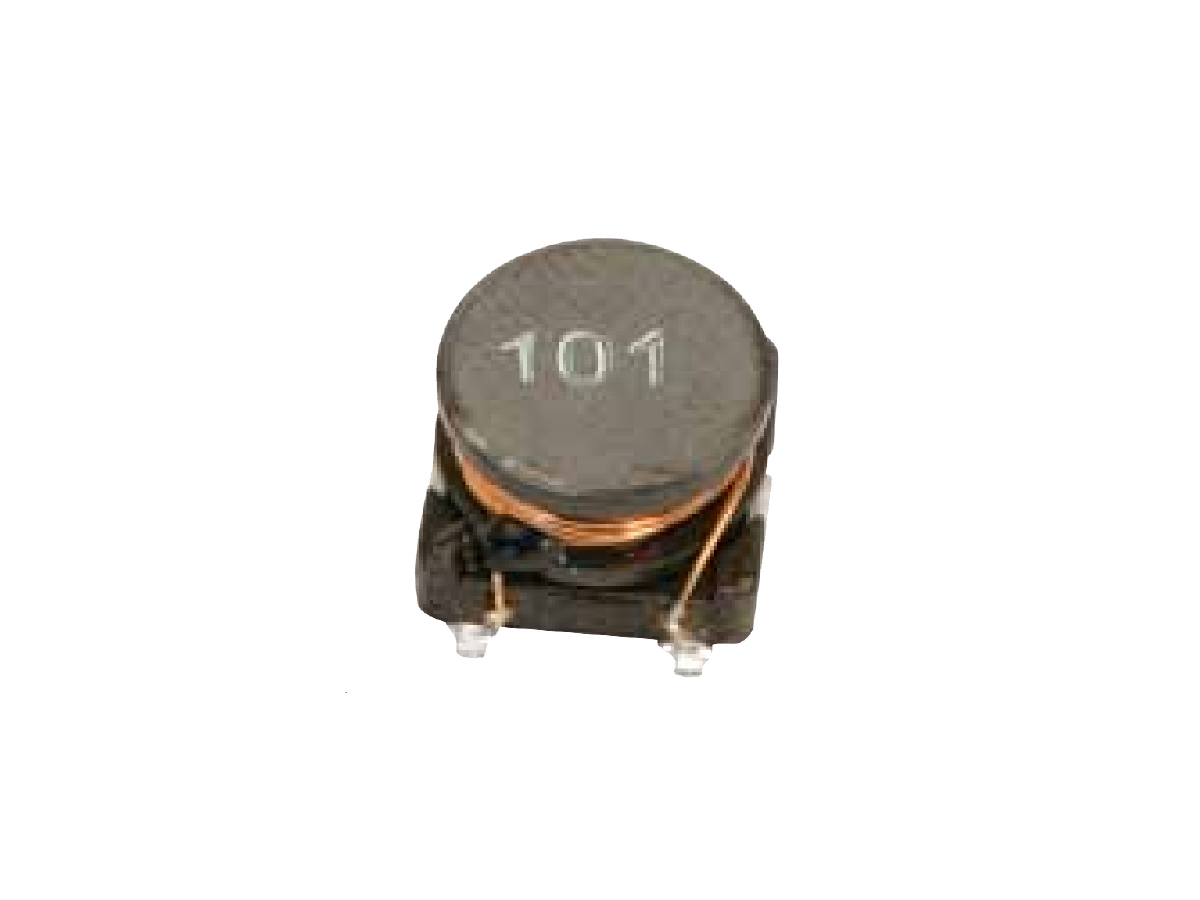

RL-6050 Surface Mount Power Inductor
The RL-6050 Surface Mount Power Inductor series is engineered for high-current applications in compact form factors. Its rugged construction and reliable solderability make it ideal for demanding surface mount designs. Optimized for EMI/RFI filtering and efficient power conversion, this series supports a wide range of performance needs. Its low-profile design and thermal durability ensure consistent operation in high-density electronic assemblies.
- High-current capability for compact designs
- Supports 26 standard inductance values for design flexibility
- Low-profile surface mount construction
- Rugged mounting pads for secure attachment
- Excellent solderability and heat resistance
- Optimized for EMI and RFI filtering in power applications
- Inductance Range: 10 µH to 1200 µH
- Maximum Height: 11.68 mm
- Maximum Width: 4.06 mm
- Maximum Length: 13.97 mm
- Typical Lead Spacing: 3.05 mm
- Maximum Pad Width: 8.38 mm
- Maximum Terminal Distance: 11.68 mm
- Typical Coil Opening: 6.10 mm
- Reference Pad Height: 4.06 mm
- Reference Solder Height: 2.54 mm
- Weight: 2.70 g (0.095 oz)
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +130°C
The RL-6050 inductor series is designed for switching regulators, power amplifiers, power supplies, and EMI/RFI filtering in high-density PCB layouts. It performs effectively in noise suppression circuits and compact power conversion systems. Its robust structure ensures stable performance in demanding environments.
