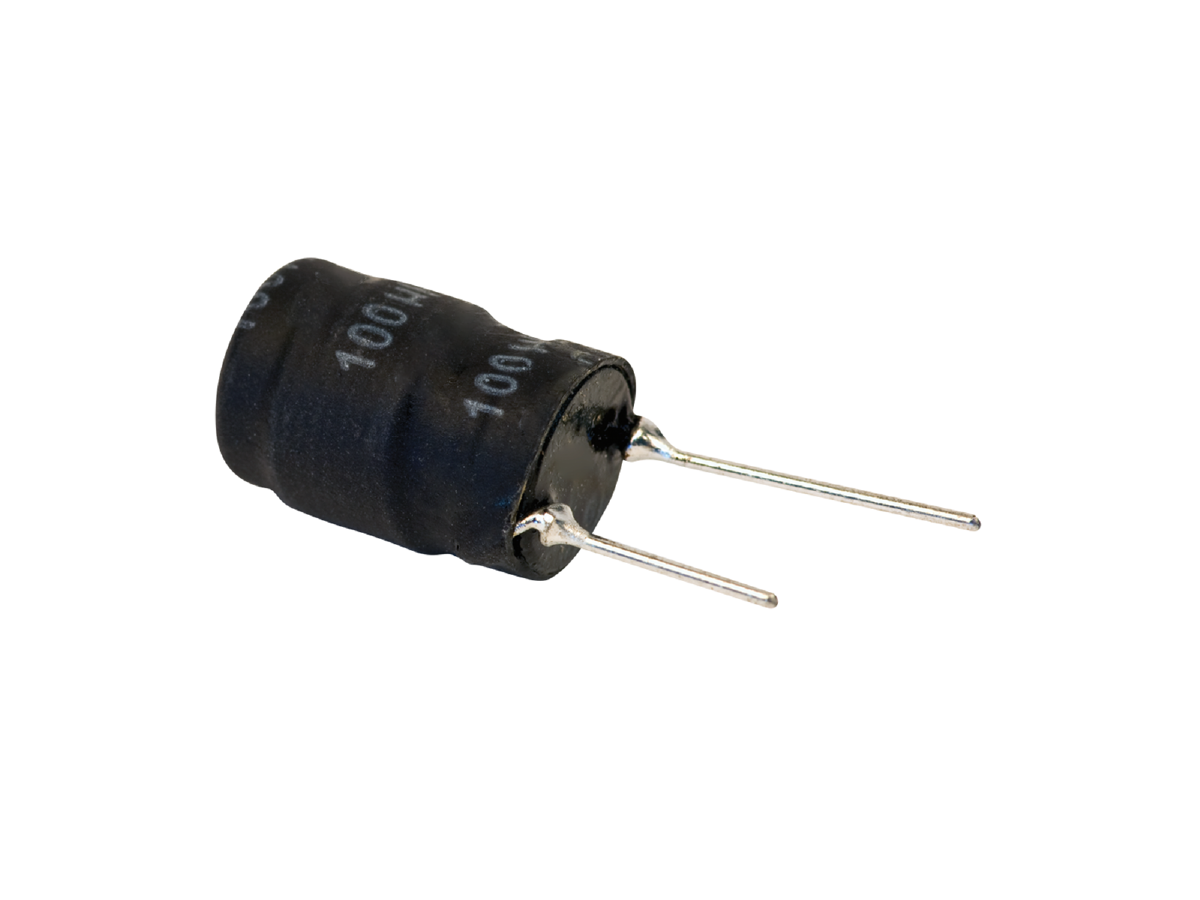

RL-5480 Through Hole Power Inductor
The RL-5480 Through Hole Power Inductor series is a compact, radial lead solution designed for versatility in power applications. Offering a wide range of standard values, this series provides reliable performance in regulated power supply designs. Its compact size, high-quality construction, and staggered lead configuration make it ideal for high-density PCB layouts. This series is available in ammo pack format for automated assembly, streamlining production processes.
- 259 standard values available
- Compact radial lead design
- Staggered lead length for PCB insertion
- Available in ammo pack for auto insertion
- Optimized for high-density layouts
- Durable construction for long-term reliability
- Maximum Current Capability: 4 A
- Maximum Saturation Current: 14.2 A
- Inductance Range: 3.9 µH to 270,000 µH
- Maximum Dimensions: Diameter 15.875 mm, Height 17.780 mm
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +130°C
The RL-5480 inductor series is ideal for use in power supplies and EMI suppression circuits. Its broad inductance range and compact design make it well-suited for switching regulated power supply designs in commercial and industrial applications. This series’ versatility supports both standard and high-density circuit board layouts.
