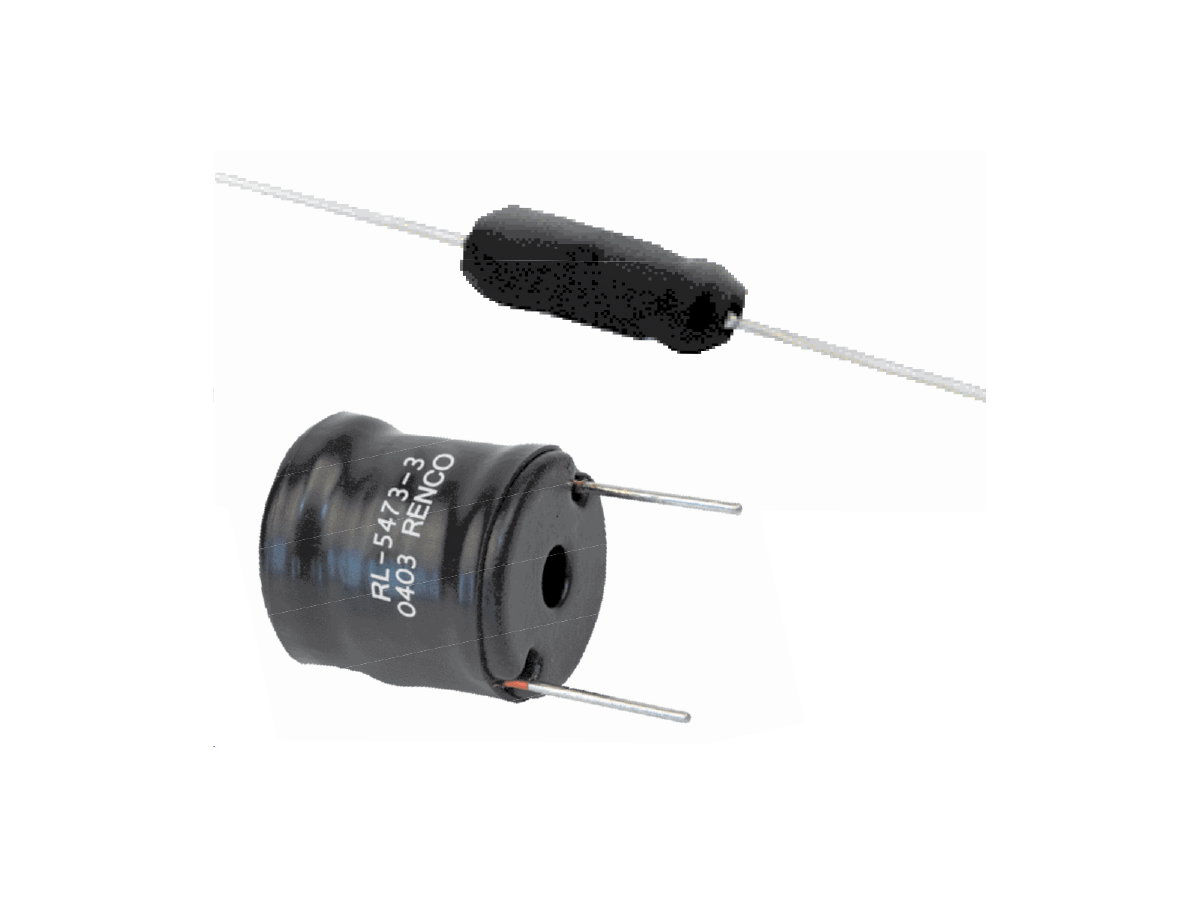

RL-5473 Through Hole Power Inductor
The RL-5473 Through Hole Power Inductor series is designed for high-efficiency performance in switching power supplies and regulated circuits. Built with a compact, durable design, this inductor supports reliable operation even in demanding applications. Its through-hole construction ensures secure PCB mounting, while optimized core materials provide minimal core losses. This makes the RL-5473 a strong choice for designs requiring stability, efficiency, and compact footprint.
- Compact through-hole construction for secure PCB mounting
- Optimized core design for reduced energy loss
- Durable materials for long-term reliability
- Lightweight design for space-constrained applications
- Engineered for compatibility with common switcher designs
- Low-profile body for efficient board utilization
- Inductance Range: 21 µH to 400 µH
- Saturation Current Range: 0.7 A to 5.0 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Maximum Diameter: 25.40 mm
- Maximum Height: 17.78 mm
- Lead Diameter: 0.81 mm
- Maximum Lead Spacing: 6.60 mm
- Part Weight: 13.0 g (0.44 oz)
The RL-5473 inductor series is ideal for switching regulators, boost, buck, and buck-boost converters. Its robust construction and stable electrical performance make it well suited for regulated power supply circuits and DC-DC converters. This series is also commonly used in designs incorporating LM258X and LM259X switcher ICs for enhanced performance.
