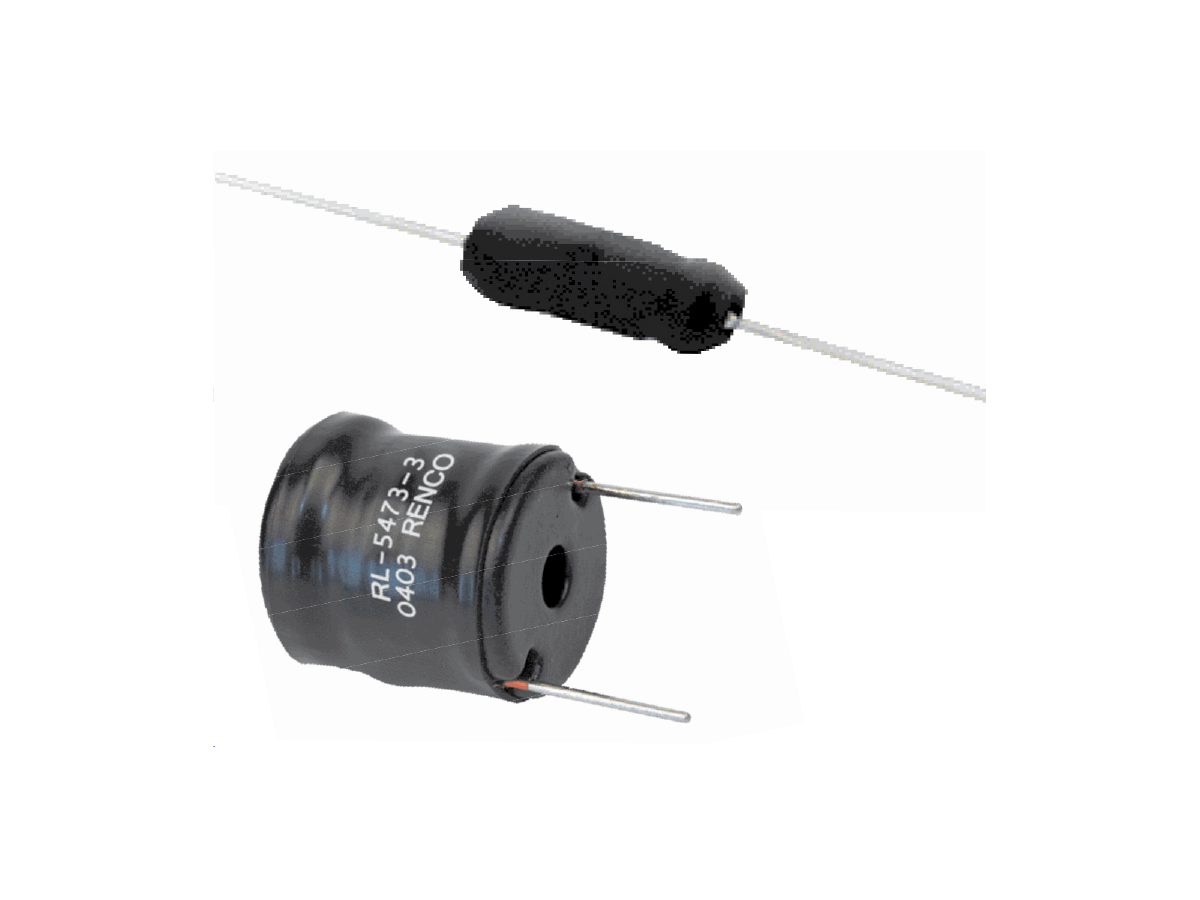

RL-5471 Through Hole Power Inductor
The RL‑5471 Through Hole Power Inductor series is engineered for reliable performance in power conversion and regulation circuits. Its through-hole configuration offers secure placement and mechanical stability, making it well-suited for high-density PCB assemblies. Designed with optimized magnetic materials, this inductor ensures dependable energy transfer and consistent operation in demanding environments.
- High-saturation ferrite core material for efficient energy handling
- Through-hole construction for robust PCB integration
- Low core loss design for improved efficiency
- Compact footprint for high-density layouts
- Durable build for long-term operational reliability
- Stable performance across wide operating conditions
- Inductance Range: 21 µH to 400 µH
- Saturation Current: 0.7 A to 5.0 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Maximum Length: 1.00 in (25.40 mm)
- Maximum Diameter: 0.90 in (22.86 mm)
- Maximum Lead Diameter: 0.032 in (0.81 mm)
- Weight: 9.0 g (0.30 oz)
The RL‑5471 inductor series is designed for use in switching regulators, buck and boost converters, and other power supply circuits. It is commonly integrated into voltage regulation systems and simple switcher applications such as LM258X and LM259X designs. This inductor is well-suited for equipment requiring efficient, compact, and reliable inductive components.
