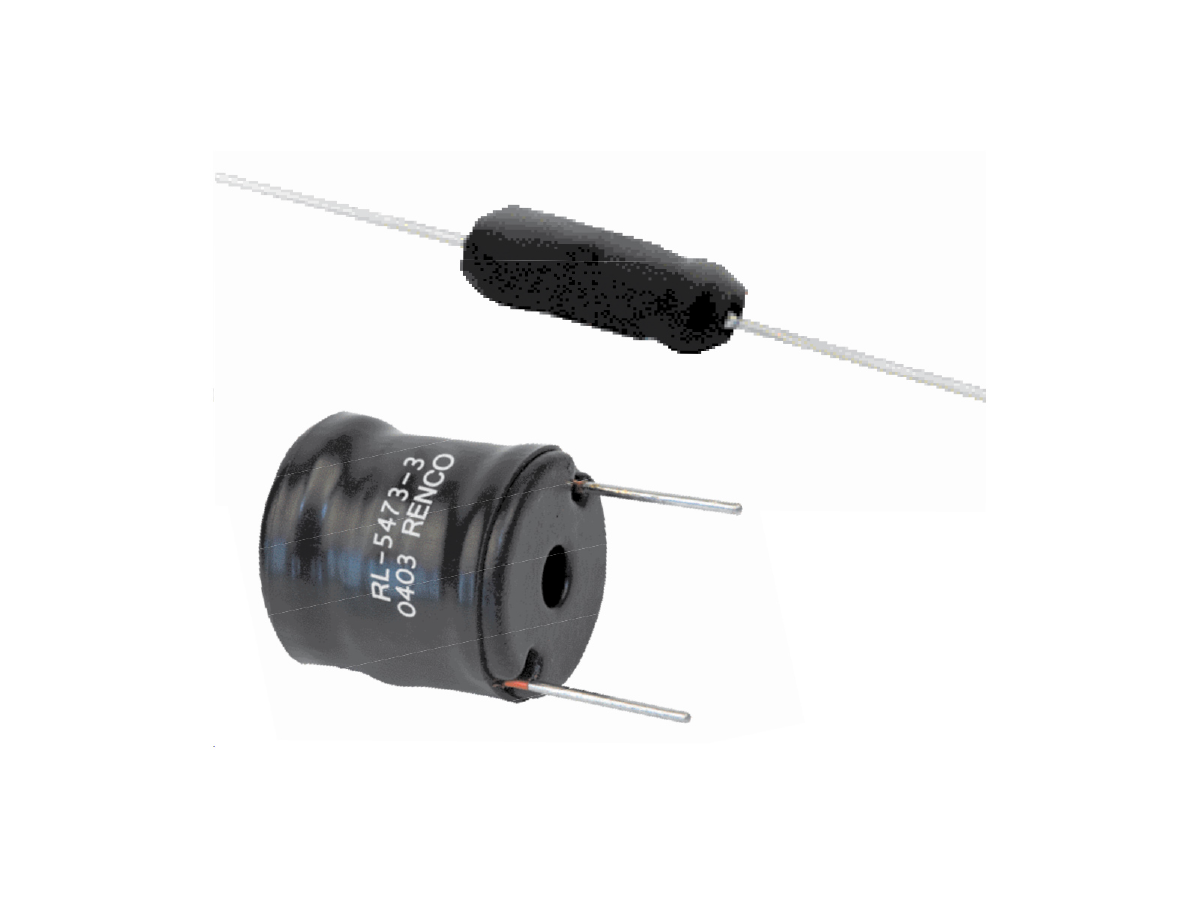

RL-5470 Through Hole Power Inductor
The RL-5470 Through Hole Power Inductor series is engineered for high-performance power supply applications, delivering stable inductance across a wide current range. Its compact, through-hole design allows for straightforward PCB integration, ensuring space-efficient installations in power conversion circuits. Featuring ferrite cores for minimized core losses, the RL-5470 is ideal for environments requiring efficient energy transfer. With optimized electrical properties, it supports reliable operation in demanding switch-mode power supply designs.
- High saturation current capability for power supply efficiency
- Ferrite core construction for reduced core losses
- Compact through-hole design for space-conscious applications
- Wide inductance range supporting versatile circuit needs
- Consistent performance across varying operating conditions
- Optimized for compatibility with Texas Instruments LM258X and LM259X applications
- Inductance Range: 21 µH to 400 µH
- Saturation Current: 0.7 A to 5.0 A
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +130°C
- Maximum Diameter: 25.40 mm
- Maximum Length: 17.78 mm
- Lead Diameter: 0.81 mm
- Weight: 1.0 g (RL-5470)
The RL-5470 inductor series is designed for use in switching regulators, boost, buck, and buck-boost converters, providing dependable inductive energy storage. Its robust characteristics make it well-suited for power supply circuits in industrial, commercial, and consumer electronics. It is also frequently used in Texas Instruments simple switcher applications such as LM258X and LM259X designs.
