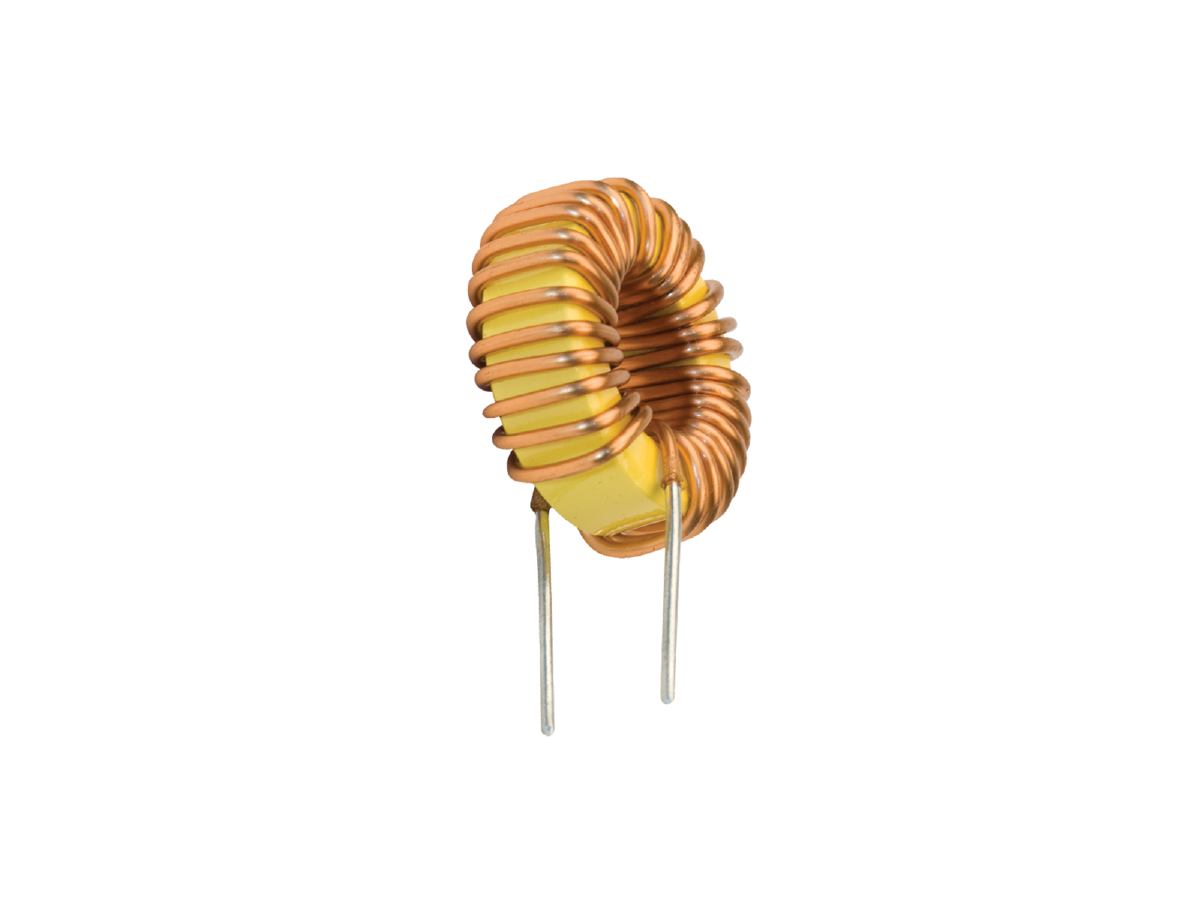

RL-3435 Through Hole Power Inductor
The RL-3435 Through Hole Power Inductor series is a compact toroidal design that offers excellent performance as an alternative to standard chokes or inductors. Its no-radiation configuration makes it ideal for switching power supplies and sensitive circuits where EMI must be minimized. With its small size and PCB-mount compatibility, the RL-3435 is well-suited for high-density layouts and streamlined assembly. This series is built for durability and reliability in demanding electronic applications.
- Rugged construction
- Single layer design
- All flame-retardant materials
- No radiation design for EMI reduction
- Compact size for high-density PCB mounting
- High SRF single-layer configuration
- Suitable for clip-mount and self-leaded installation
- Construction: Toroidal Power Inductor
- Mounting Type: Through Hole, Self-Leaded and Clip-Mount
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Coil Size Range: Multiple configurations
- Maximum Coil Diameter: 1.50 in (38.10 mm)
- Maximum Coil Height: 0.875 in (22.23 mm)
- Maximum Coil Width: 0.62 in (15.75 mm)
- Weight Range: 16.0 g to 40.0 g depending on coil size
The RL-3435 inductor series is designed for use in switching power supplies, where low EMI is essential. It is also suited for compact, high-density electronic assemblies requiring stable inductance performance. Its rugged design and flame-retardant materials make it appropriate for demanding power conversion and filtering environments.
