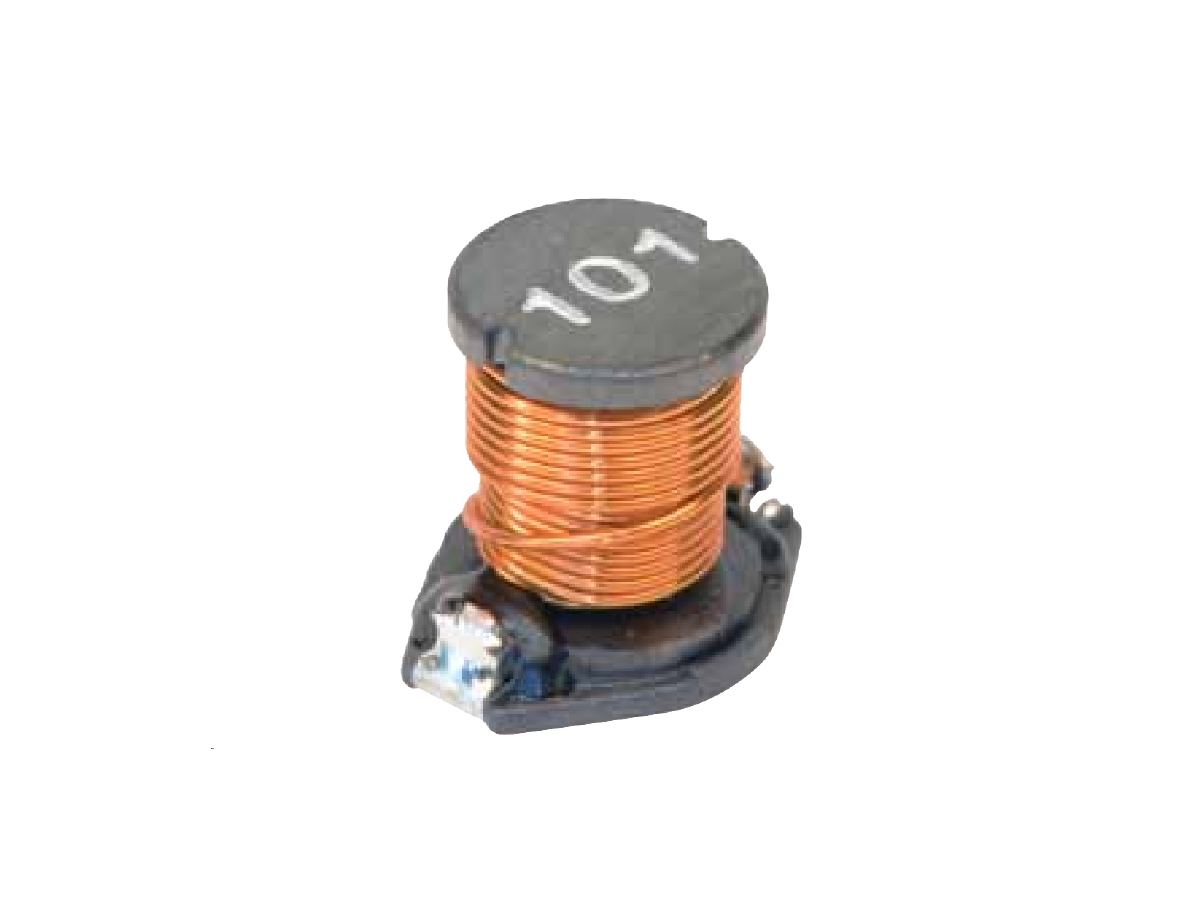

RL-3340 Surface Mount Power Inductor
The RL-3340 Surface Mount Power Inductor series features a compact package designed for efficient high-density PCB layouts. With exceptionally low DC resistance and a flat top profile, these inductors are optimized for reliable automated pick-and-place assembly. Engineered for superior electrical performance, the RL-3340 series supports a wide inductance range and stable operation under varying load conditions. This design provides an ideal balance between performance, size, and cost for modern power electronics.
- Compact 0.510″ x 0.730″ surface mount package
- Exceptionally low DC resistance for higher efficiency
- Flat top surface for reliable automated placement
- Wide range of inductance values for design flexibility
- Optimized for stable operation under load variations
- Durable construction for long-term performance
- Inductance Range: 1.0 µH to 1.0 mH
- Current Rating: Up to 3.5 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Maximum Length: 0.510″ (12.95 mm)
- Maximum Width: 0.370″ (9.40 mm)
- Maximum Height: 0.300″ (7.62 mm)
- Part Weight: 2.4 g (0.085 oz)
The RL-3340 inductor series is well-suited for use in DC-DC converters, voltage regulators, and power management modules requiring compact, low-resistance inductors. Its robust construction and efficient electrical performance make it ideal for use in telecommunications, industrial controls, and consumer electronics. This series supports applications where reliable performance and minimal footprint are essential.
