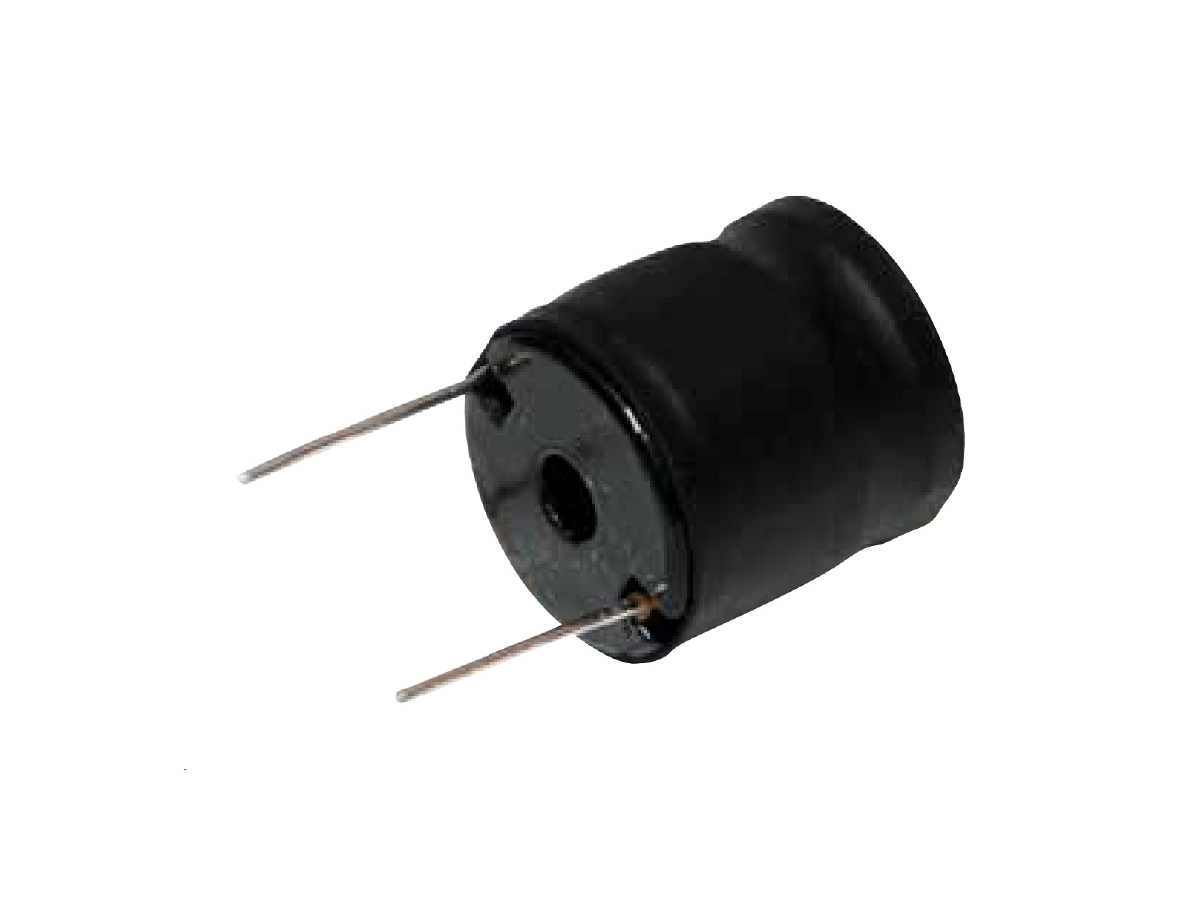

RL-2446 Through Hole Power Inductor
The RL-2446 Through Hole Power Inductor series is engineered for high-performance operation in compact switching power supply designs. Its high saturation flux density material ensures stable inductance and efficient energy storage, even under elevated DC current loads. Designed with reliability and efficiency in mind, the RL-2446 series supports a broad inductance range to meet various circuit requirements. The rugged construction makes it an excellent choice for space-conscious designs requiring durability and consistent performance.
- High saturation flux material for efficient performance
- Compact form factor for dense circuit board layouts
- Robust through-hole construction for mechanical stability
- Optimized for low-loss operation in switching environments
- Reliable thermal performance under extended operation
- Precision manufacturing for consistent inductance values
- Inductance Range: 47 µH to 2200 µH
- DC Saturation Current: Up to 20 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Mounting Type: Through hole
The RL-2446 inductor series is ideal for use in switching regulated power supplies, small current chokes, and DC-DC converter circuits. Its wide inductance range and high current handling make it suitable for compact, high-efficiency designs. This series offers reliable performance in applications requiring both high energy storage and minimal footprint.
