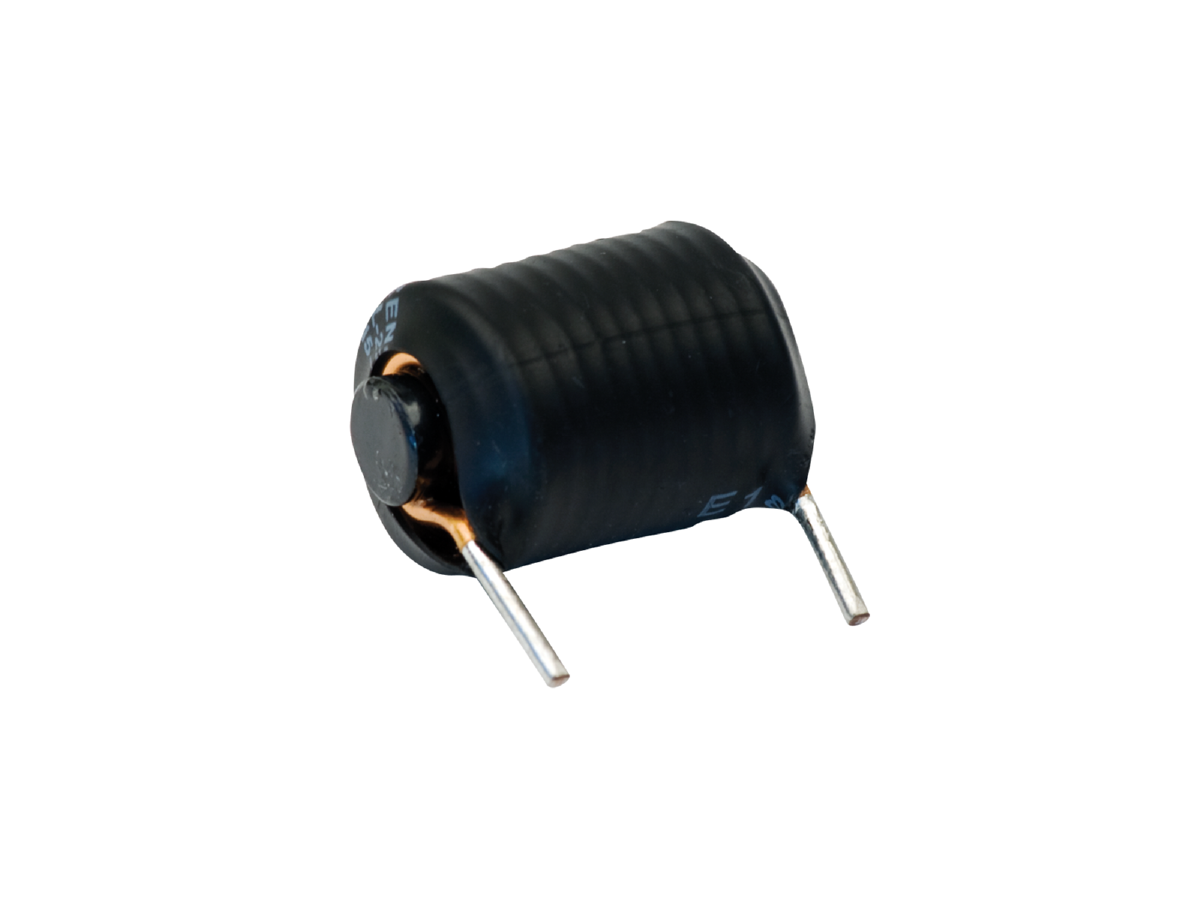

RL-2226 Through Hole Power Inductor
The RL-2226 Through Hole Power Inductor series is a compact, high-current ferrite core design optimized for effective noise suppression in demanding power electronics. Its rugged construction, combined with a polyolefin shrink tube covering, provides durability and electrical insulation in harsh environments. With pre-tinned radial leads, these inductors are engineered for secure and efficient PCB mounting. This series delivers consistent performance in power conditioning, filtering, and signal stabilization applications.
- High-current ferrite core design
- Compact footprint for space-constrained applications
- Polyolefin shrink tube insulation for mechanical protection
- Pre-tinned radial leads for easy PCB insertion
- Wide inductance range for diverse filtering needs
- Stable performance over broad operating temperature range
- Durable construction for long-term reliability
- Core Type: Ferrite
- Insulation Material: Polyolefin shrink tube
- Inductance Range: Model dependent (refer to datasheet)
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Mounting Style: Through Hole, Radial Leads
- Lead Finish: Pre-tinned copper
- Part Weight: 33g to 69g (model dependent)
The RL-2226 inductor series is ideal for use in switching regulated power supplies, power filter networks, power amplifiers, and control circuits requiring effective noise suppression. Its ferrite core design and compact size make it suitable for high-frequency applications and environments with limited PCB space. This series supports reliable EMI suppression and improved circuit stability in industrial, commercial, and consumer electronics.
