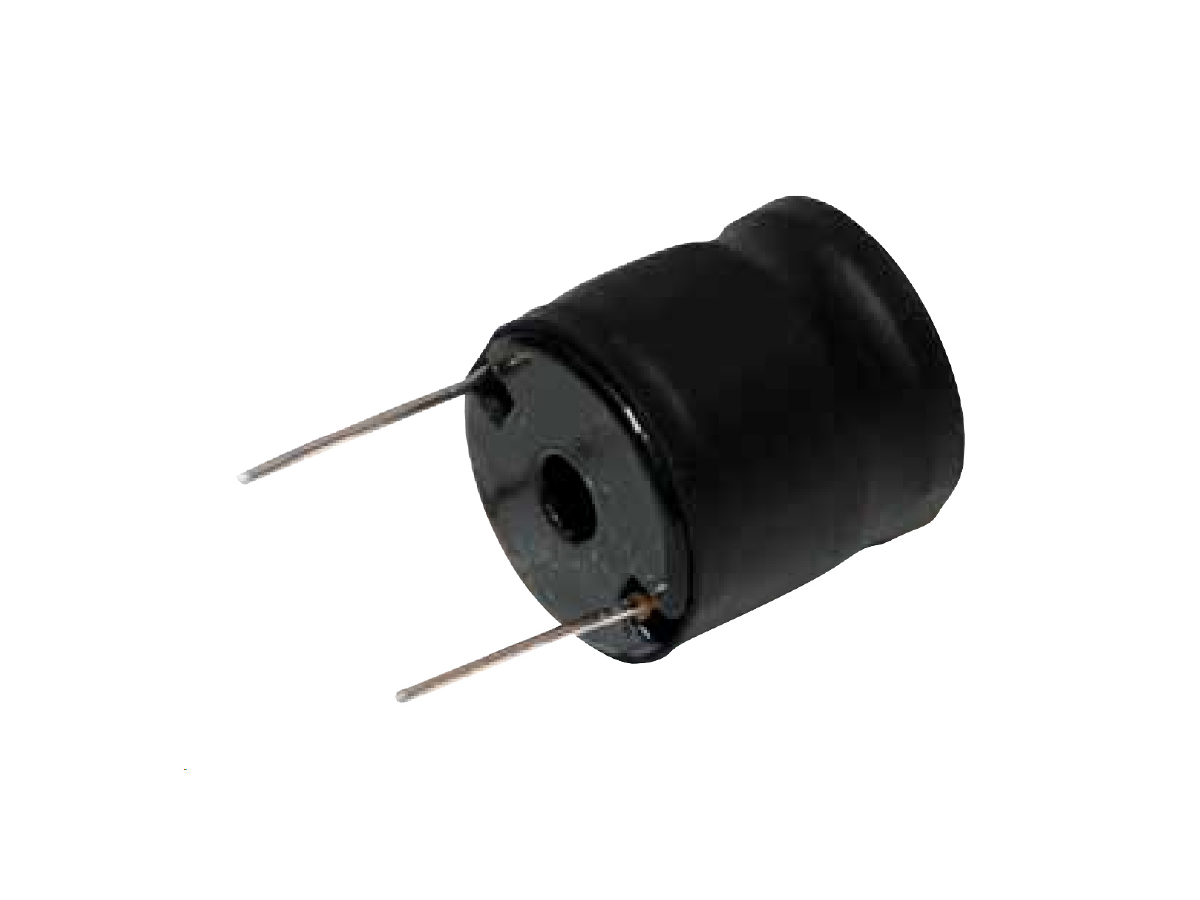

RL-1964 Through Hole Power Inductor
The RL-1964 Through Hole Power Inductor series delivers reliable high-current performance for demanding power regulation and filtering applications. Engineered with high saturation flux density material, these inductors maintain stability under heavy load conditions while minimizing core losses. The compact design supports a broad inductance range, making them versatile for switching regulated power supplies and compact current choke applications. Designed to perform consistently in varying thermal environments, this series ensures dependable operation across a wide range of applications.
- High current handling capability
- Compact through-hole design for secure installation
- Wide inductance range for design flexibility
- Optimized magnetic core for minimal losses
- Durable construction for extended operational life
- Broad operating temperature tolerance
- Low thermal rise under rated load
- Inductance Range: 47 µH to 2200 µH
- DC Saturation Current: Up to 20 A
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +130°C
- Core Type: High saturation flux density material
- Mounting Type: Through-hole
- Typical Applications Frequency Range: Power switching environments
The RL-1964 inductor series is commonly used in switching regulated power supplies, DC-DC converters, and filtering circuits. It is also applied in small-sized current choke designs for high-efficiency power conditioning. These inductors support a range of industrial, communications, and embedded system applications where reliability and compact performance are critical.
