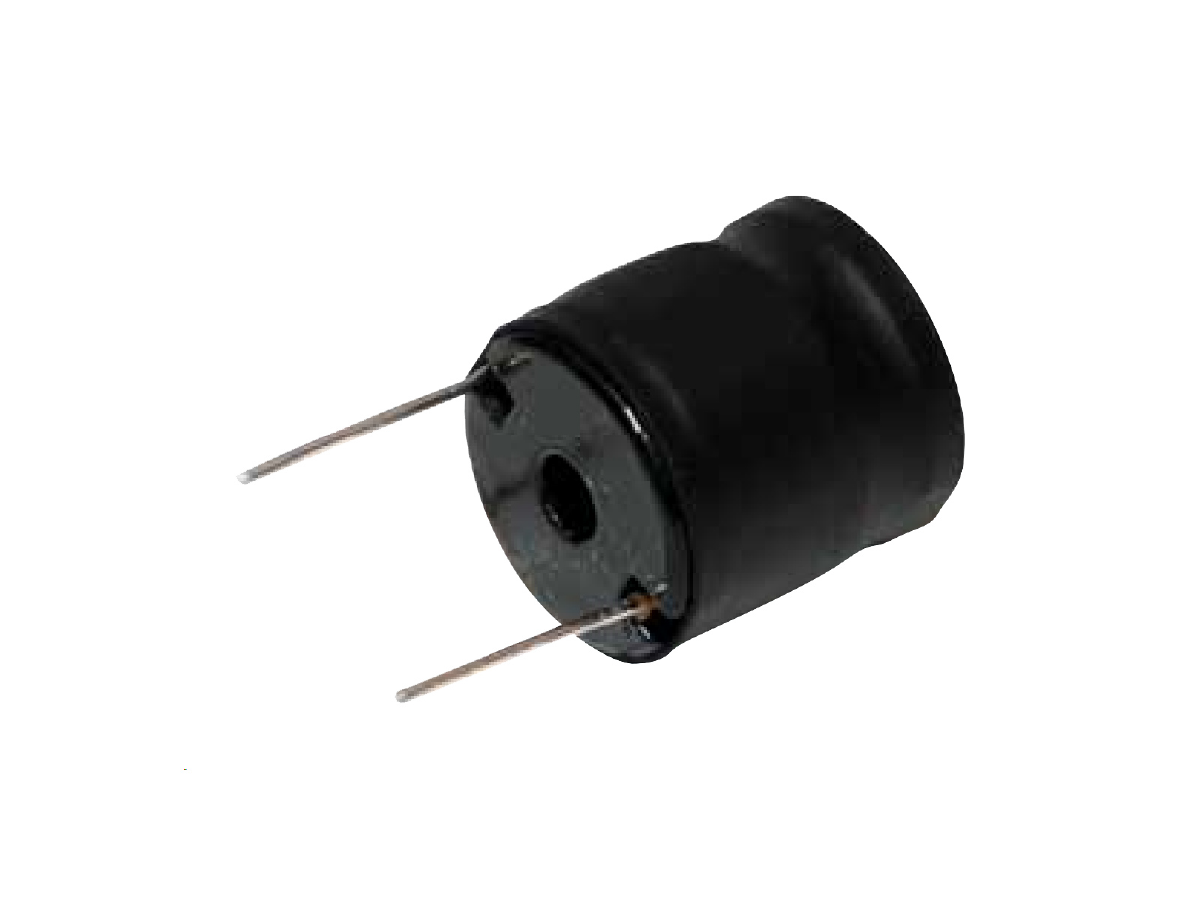

RL-1963 Through Hole Power Inductor
The RL-1963 Through Hole Power Inductor series is engineered for high efficiency in compact power regulation circuits. Its construction utilizes high saturation flux density materials that deliver consistent inductance performance across a broad range of current loads. Designed to handle demanding conditions, this series provides stable operation in switching regulated power supplies. Its compact design, combined with rugged performance, makes it ideal for space-conscious, high-reliability applications.
- High saturation flux density material for improved energy storage
- Compact through-hole design for space-limited boards
- Optimized for minimal core loss at operating frequency ranges
- Robust lead configuration for reliable PCB mounting
- Excellent thermal stability over wide temperature ranges
- Wide inductance selection for design flexibility
- Durable construction for long operational life
- Inductance Range: 47 µH to 2200 µH
- DC Saturation Current: Up to 20 A
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +130°C
- Configuration: Through-hole mounting
- Construction Type: High current choke
The RL-1963 inductor series is well-suited for switching regulated power supplies, providing efficient energy storage and stable current handling. Its high current capability also makes it a reliable choice for compact DC-DC converter circuits. This series is frequently used in industrial, telecom, and embedded systems requiring robust power regulation.
