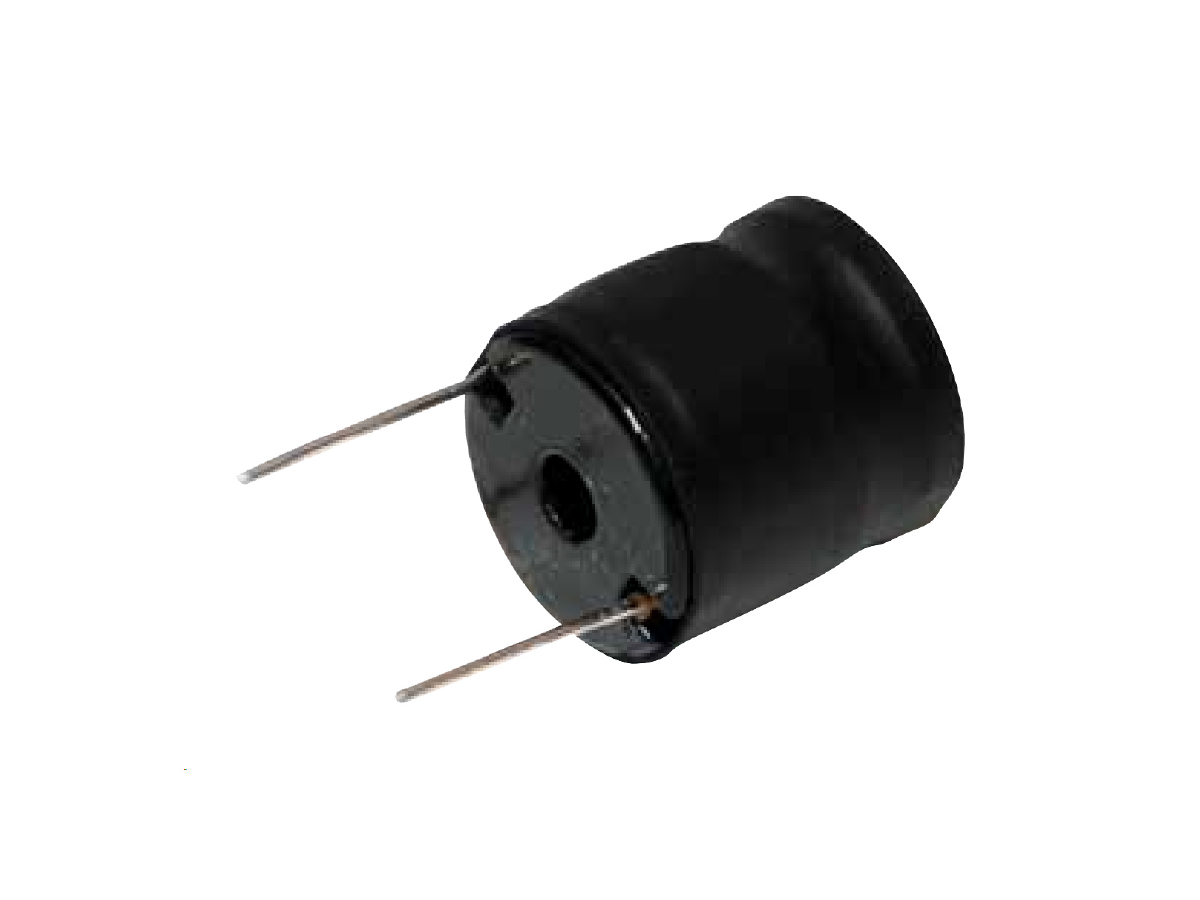

RL-1961 Through Hole Power Inductor
The RL‑1961 Through Hole Power Inductor series is designed to provide compact, high-performance inductance solutions for demanding power conversion systems. Its construction supports strong magnetic stability under heavy current loads while maintaining efficient performance in compact spaces. Built for reliability, the RL‑1961 delivers consistent results in high-efficiency designs where space and thermal control are critical.
- High saturation flux density material
- Wide inductance range for design flexibility
- High DC current handling capability
- Compact through hole package
- Optimized winding for thermal performance
- Secure leaded mounting style
- Stable operation in high-frequency power circuits
- Inductance Range: 47 µH to 2200 µH
- DC Saturation Current: Up to 20 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Mounting Type: Through hole
- Construction Type: High current choke design
The RL‑1961 inductor series is suited for switching regulated power supplies, DC‑DC converters, and compact current choke designs. It supports high-current, space-constrained systems found in telecommunications, industrial power distribution, and other high-reliability circuits. Its balance of size, inductance range, and saturation performance makes it an efficient choice for advanced power management designs.
