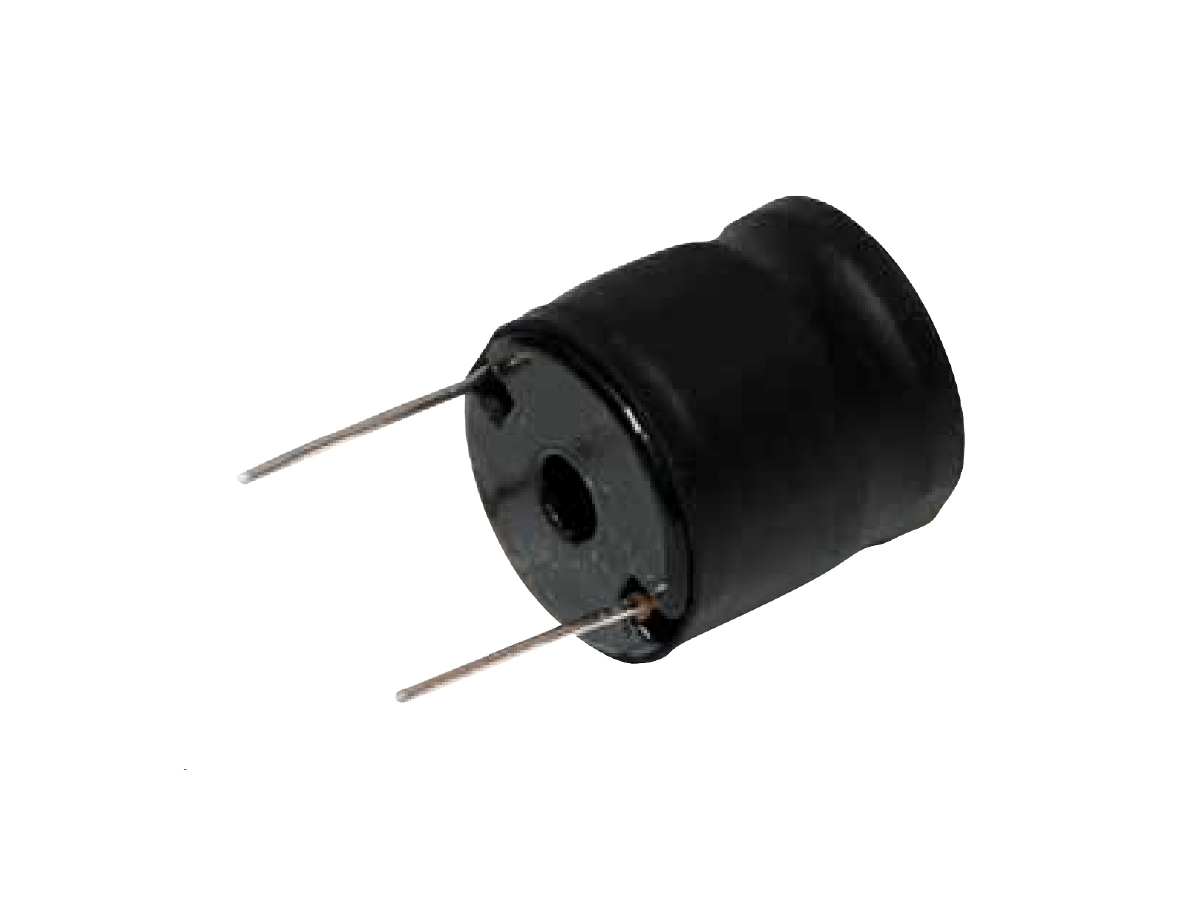

RL-1959 Through Hole Power Inductor
The RL-1959 Through Hole Power Inductor series is engineered for high-current applications where stability and performance are critical. Constructed with high saturation flux density materials, it is optimized for efficient operation in compact power supply environments. The component’s durable design and wide operating temperature range ensure reliability across demanding conditions. This series is well-suited for applications requiring dependable current choke functionality in through-hole configurations.
- Axial lead construction for secure PCB mounting
- Engineered for compact high-power designs
- Supports wide operating and storage temperature ranges
- Reliable performance in thermally demanding environments
- Compatible with standard through-hole manufacturing processes
- Durable construction for long-term use
- Simplified design integration with standard mechanical dimensions
- Inductance Range: 47 µH to 2200 µH
- DC Saturation Current: Up to 20 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Core Material: High saturation flux density material
- Construction Type: Through Hole
- Lead Type: Axial Leads
- Mounting: Vertical mount with clearance hole for 4/40 screw
The RL-1959 inductor series is ideal for use in switching regulated power supplies and high-efficiency current choke circuits. It is especially suited for compact systems where thermal performance and current handling are essential. Typical applications include power converters, DC-DC regulators, and noise filtering in industrial and consumer electronics.
