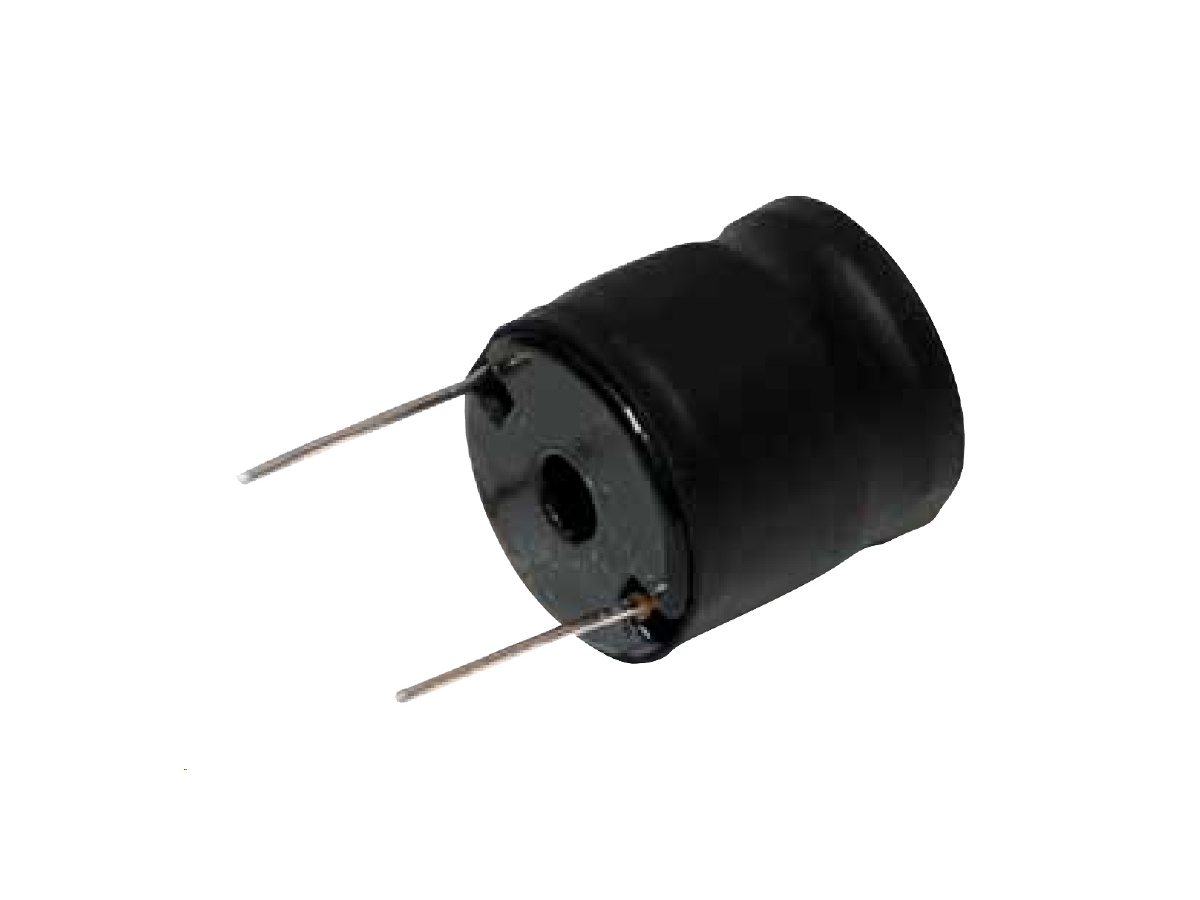

RL-1958 Through Hole Power Inductor
The RL-1958 Through Hole Power Inductor series is engineered for high-current applications that demand compact size and high magnetic performance. Constructed with high saturation flux density materials, this series ensures stable inductance under elevated DC bias conditions. It is ideally suited for use in switching power supplies where reliability, size, and performance are critical. Its rugged construction and leaded package simplify through-hole PCB mounting and integration into power regulation circuits.
- Epoxy-coated construction for mechanical protection
- Axial lead configuration for stable board insertion
- Compact size for space-constrained designs
- Supports high energy handling in small footprint
- RoHS-compliant for environmental safety
- Compatible with wave and manual soldering processes
- Cylindrical form simplifies mechanical alignment
- Designed to accommodate horizontal PCB mounting
- Inductance Range: 47 µH to 2200 µH
- DC Saturation Current: Up to 20 A
- Core Material: High saturation flux density ferrite
- Mounting Style: Through Hole
- Lead Type: Tinned copper, 20 AWG
- Operating Temperature: -40°C to +130°C
- Storage Temperature: -55°C to +130°C
- Clearance Hole: Designed for 4/40 screw
- Coating: Epoxy resin
The RL-1958 inductor series is ideal for switching regulated power supplies and current chokes in high-density circuit designs. It is commonly used in industrial control systems, LED drivers, and compact DC-DC converters that demand reliable inductive components in limited space.
