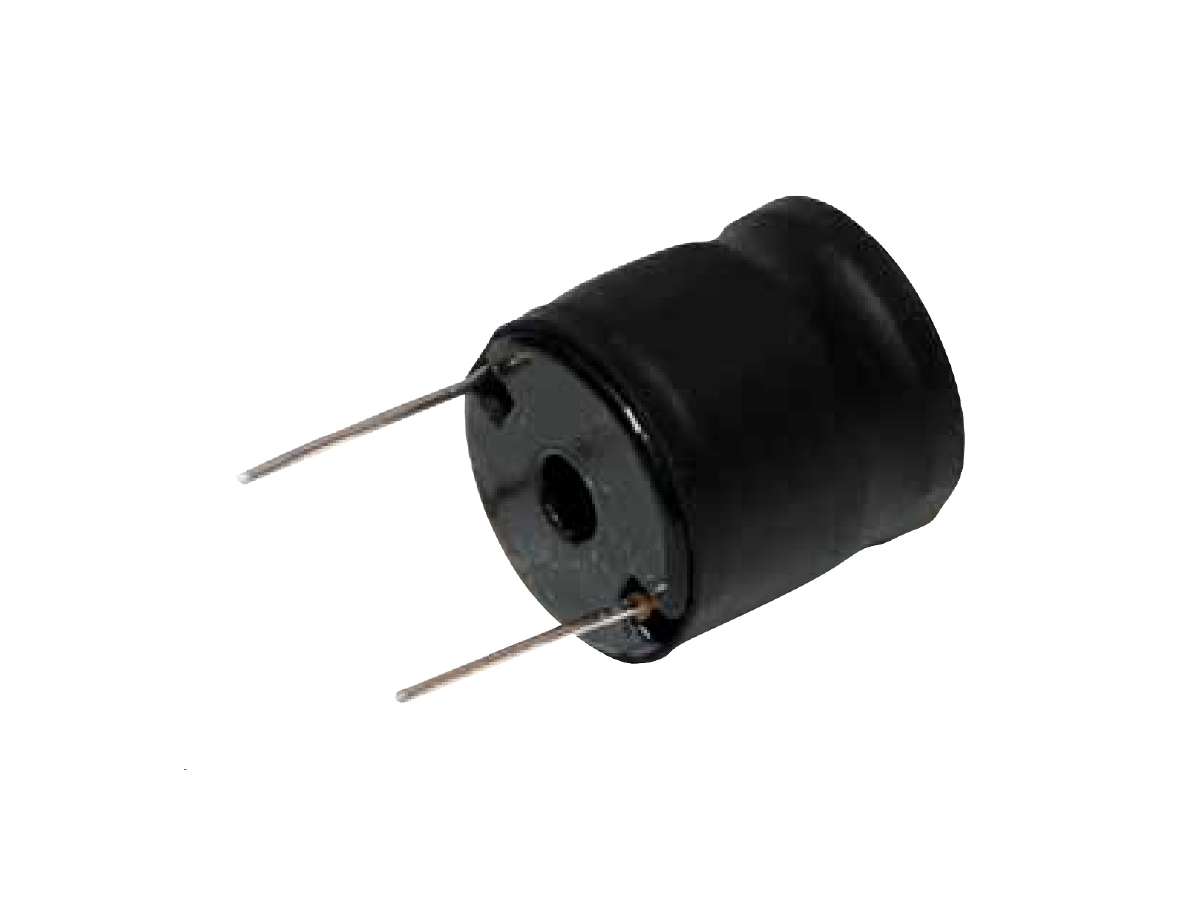

RL-1957 Through Hole Power Inductor
The RL-1957 Through Hole Power Inductor series is engineered to meet the performance demands of compact, high-reliability power supply applications. These inductors offer dependable magnetic performance using a high-flux core material optimized for low core loss and minimal temperature rise. Designed with axial leads and rugged encapsulation, this series is ideal for environments requiring thermal durability and long operational life. Their compact size allows for efficient placement in dense circuit board layouts.
- High-saturation flux density core material
- Encapsulated for enhanced mechanical protection
- Axial-lead through-hole mounting configuration
- Compact size for efficient board layout
- Thermally stable construction
- Engineered for switching power supply designs
- Supports efficient magnetic energy storage
- Designed for high-reliability applications
- Inductance Range: 47 µH to 2200 µH
- DC Saturation Current: Up to 20 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Mounting Type: Axial Through Hole
- Core Type: High flux density ferrite
- Configuration: Single-layer wound choke
- Environmental Protection: Epoxy encapsulated
- Lead Material: 20 AWG tinned copper
The RL-1957 inductor series is ideal for use in switching regulated power supplies, current chokes, and noise filtering circuits. These inductors are frequently integrated into industrial control units, telecommunications devices, and consumer electronics where compact, high-performance magnetic components are essential. Their reliable electrical behavior and thermal resilience make them well-suited for demanding power regulation applications.
