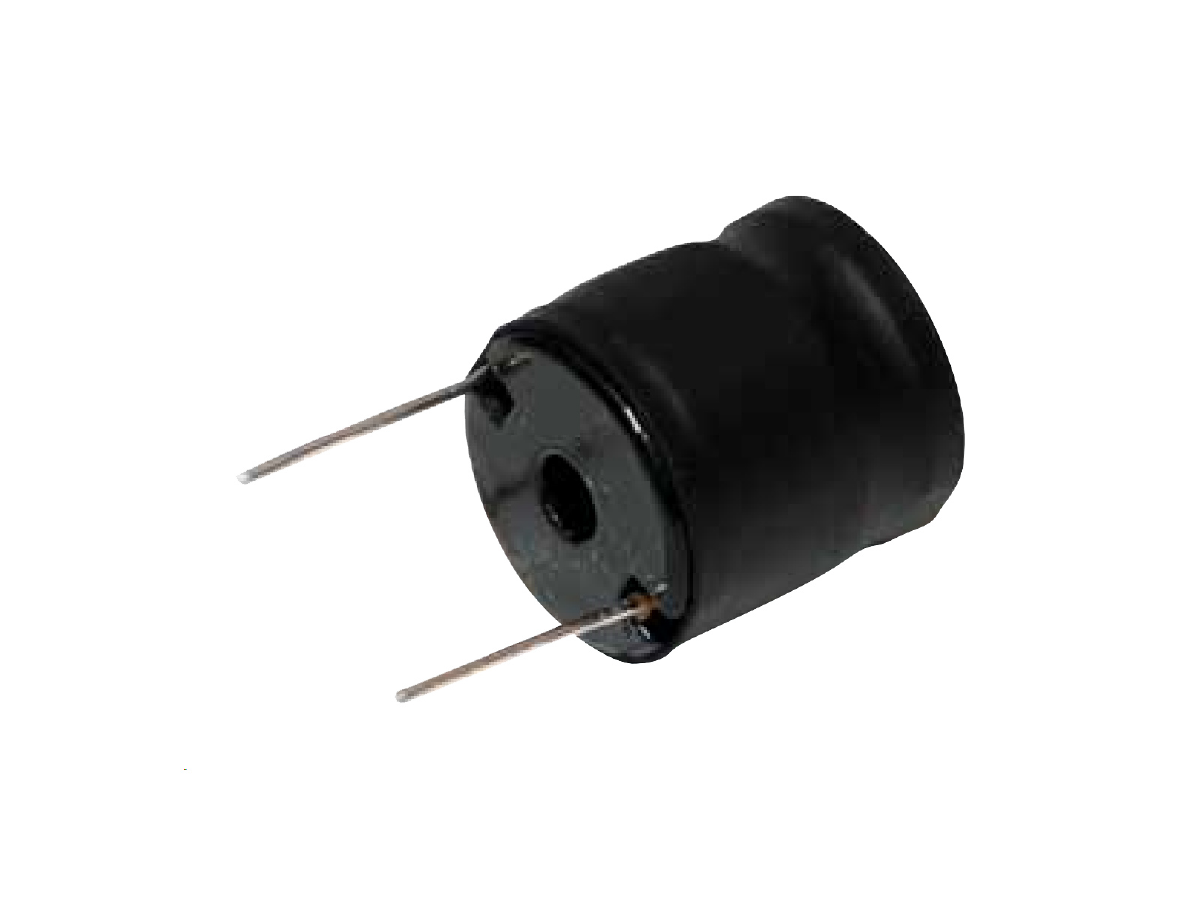

RL-1956 Through Hole Power Inductor
The RL-1956 Through Hole Power Inductor series is designed to deliver high current handling and efficient energy storage in compact power electronics. Engineered with a high saturation flux density core, it ensures dependable operation in high-performance switching environments. Its through-hole construction provides mechanical stability and ease of integration into PCB assemblies. This series supports a wide inductance range, making it a versatile choice for modern power conversion systems.
- High saturation flux density core material
- Axial leaded configuration for secure mounting
- Thermally stable across a wide temperature range
- Compact form factor for space-constrained designs
- Engineered for high-frequency switching performance
- High current carrying capability
- Available in multiple inductance values
- Reliable construction for demanding applications
- Inductance Range: 47 μH to 2200 μH
- DC Saturation Current: Up to 20 A
- Operating Temperature: -40°C to +130°C
- Storage Temperature: -55°C to +130°C
- Core Type: High current choke
- Mounting Style: Through Hole
- Lead Material: Tinned Copper
- Environmental Compliance: RoHS
The RL-1956 inductor series is ideal for switching regulated power supplies, DC-DC converters, and compact current choke circuits. These inductors are commonly used in industrial equipment, embedded systems, and telecom hardware where high current performance and compact size are required. Their robust construction supports use in demanding environments with tight thermal and electrical constraints.
