RL-1955 Through Hole Power Inductor

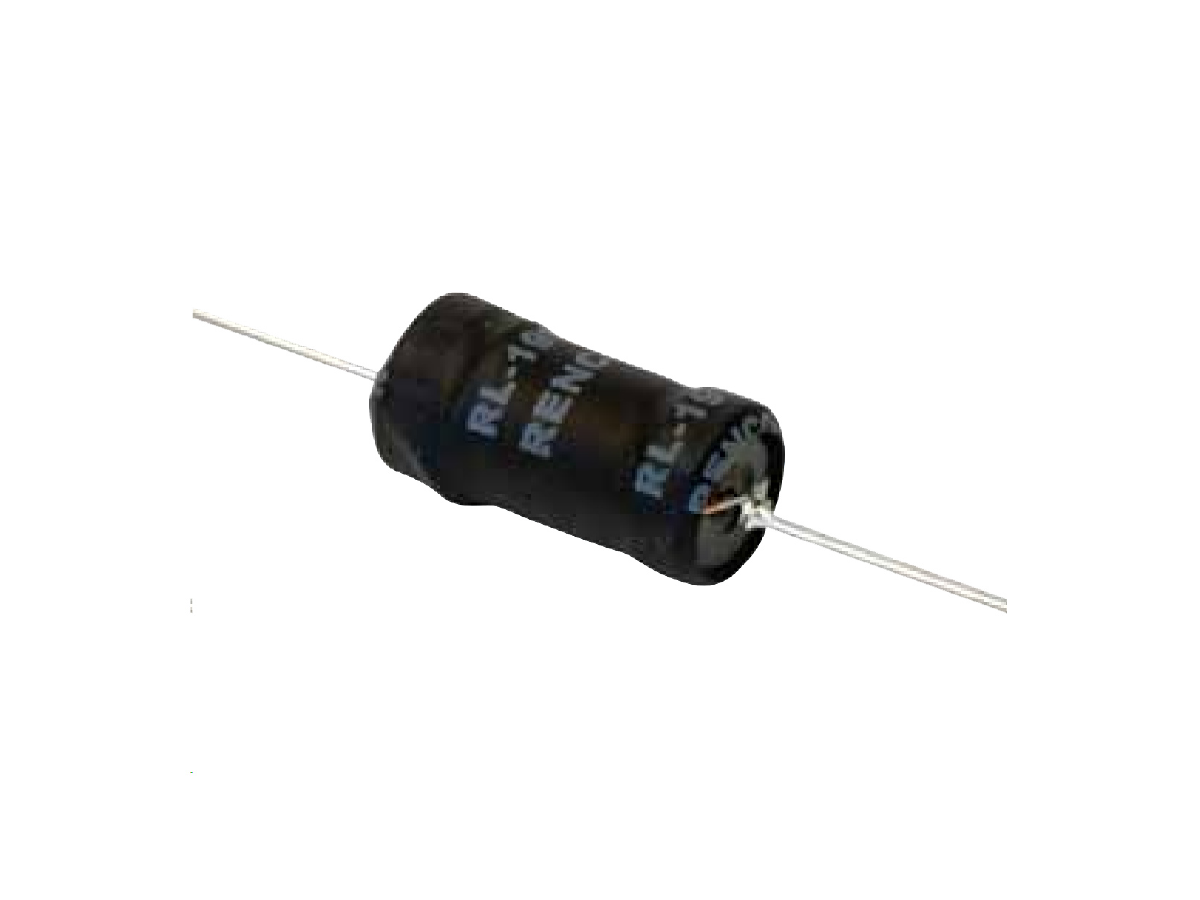

The RL-1955 Through Hole Power Inductor series is a compact through hole power inductor engineered for use in switch-mode power applications. Designed to deliver stable performance in space-constrained layouts, this series offers consistent magnetic behavior and thermal reliability. With its axial-leaded design and cylindrical construction, the RL-1955 is well-suited for automated assembly and long-term durability in demanding electronic environments.
- Axial-lead cylindrical construction
- Simplified installation and alignment
- Optimized for magnetic stability
- Compact size supports high-density layouts
- Rugged construction for long-term reliability
- RoHS compliant and lead-free
- Designed for compatibility with TI Simple Switcher ICs
- Inductance Range: 100 µH to 680 µH
- Saturation Current Range: 0.70 A to 2.79 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Maximum Body Diameter (A): 0.453 in (11.51 mm)
- Minimum Lead Spacing (B): 1.00 in (25.40 mm)
- Maximum Lead Length (C): 0.900 in (22.86 mm)
- Part Weight: 2.9 g (0.10 oz)
- Wire Type: 20 AWG Tinned Copper
The RL-1955 inductor series is ideal for use in switching regulated power supplies, especially where efficient energy transfer and compact size are critical. It is commonly used in DC-DC converters, voltage regulation modules, and general-purpose filtering applications within industrial and commercial electronics.
