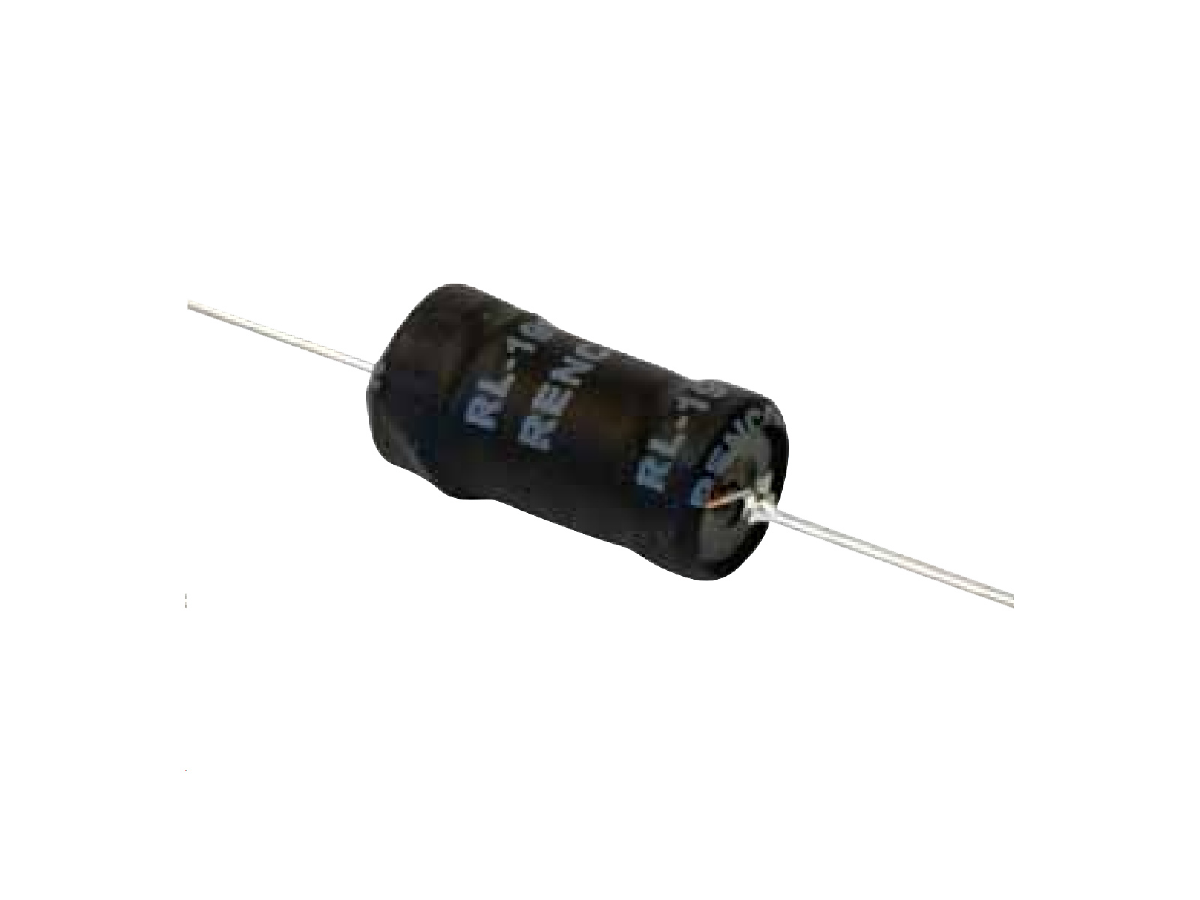

RL-1950 Through Hole Power Inductor
The RL-1950 Through Hole Power Inductor series is a compact axial solution designed to meet the requirements of modern regulated power designs. Its cylindrical body and straight lead configuration offer easy board mounting and mechanical stability. This series supports high-performance switching environments where reliability and efficiency are key. The components are engineered for stable magnetic behavior under varying current conditions.
- Axial leaded configuration for secure PCB mounting
- High-saturation magnetic core for improved energy handling
- Lightweight 2.9g profile supports compact assemblies
- Standardized 20 AWG tinned copper leads
- Optimized for low-profile horizontal board orientation
- Durable construction supports long-term field operation
- Designed for compatibility with switching regulators
- Uniform body size simplifies layout and replacement
- Inductance Range: 100 μH to 680 μH
- Saturation Current Range: 0.70 A to 2.79 A
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Lead Wire: 20 AWG tinned copper
- Body Diameter (A max): 11.51 mm
- Body Length (C max): 22.86 mm
- Minimum Lead Length (B min): 25.40 mm
- Part Weight: 2.9g (0.10 oz)
The RL-1950 inductor series is ideal for use in switching power supplies, DC-DC converters, and simple switcher reference designs. Its high current handling and compact form factor make it well-suited for consumer electronics, industrial power modules, and embedded control systems. The consistent coil size and high saturation performance ensure reliable integration in space-constrained, high-efficiency circuits.
