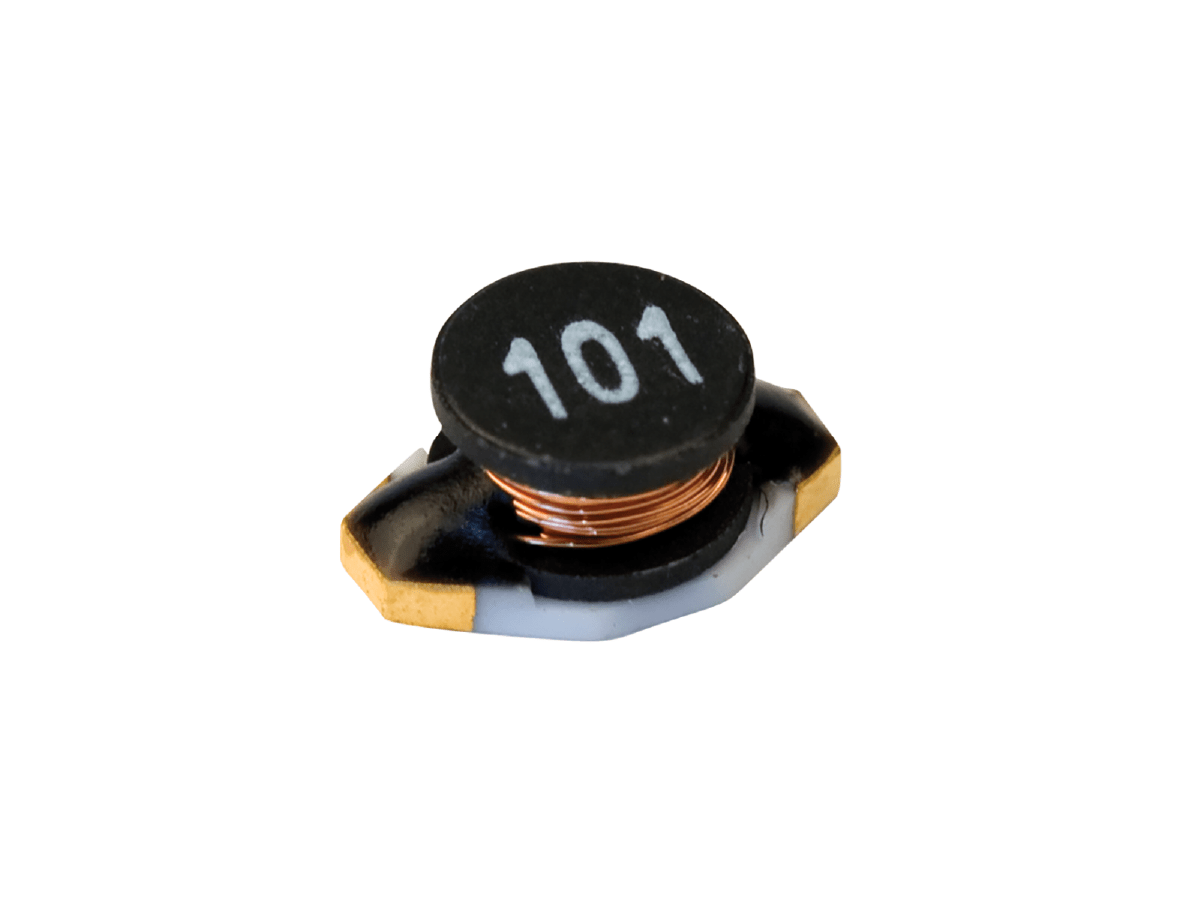

RL-1608 Surface Mount Power Inductor
The RL-1608 Surface Mount Power Inductor series is designed for high-efficiency performance in space-limited applications. Its flat-top construction supports reliable mechanical stability during automated pick-and-place assembly. With a wide range of inductance values and low resistance, this series is well-suited for circuits requiring high energy storage and fast response times. It delivers dependable performance across extended temperature ranges.
- Compact SMD package with 0.26″ x 0.175″ footprint
- Flat-top surface for automated placement
- Low DCR for efficient power handling
- High energy storage capacity
- Designed for high-frequency switching applications
- Lightweight construction
- Available in 19 inductance values
- Supports current ratings up to 2.9 A
- Inductance Range: 1.0 µH to 1.0 mH
- Current Rating: Up to 2.9 A
- Operating Temperature: -40°C to +130°C
- Storage Temperature: -55°C to +130°C
- Package Dimensions (L×W): 0.26″ × 0.175″
- Weight: 0.25 g (0.009 oz)
The RL-1608 inductor series is designed for use in communication systems, computers, and converter circuits where size, performance, and efficiency are critical. These inductors provide reliable power storage and filtering in compact form factors. Their flat surface and low height also make them ideal for automated surface mount production environments.
