RL-1518 Through Hole Power Inductor

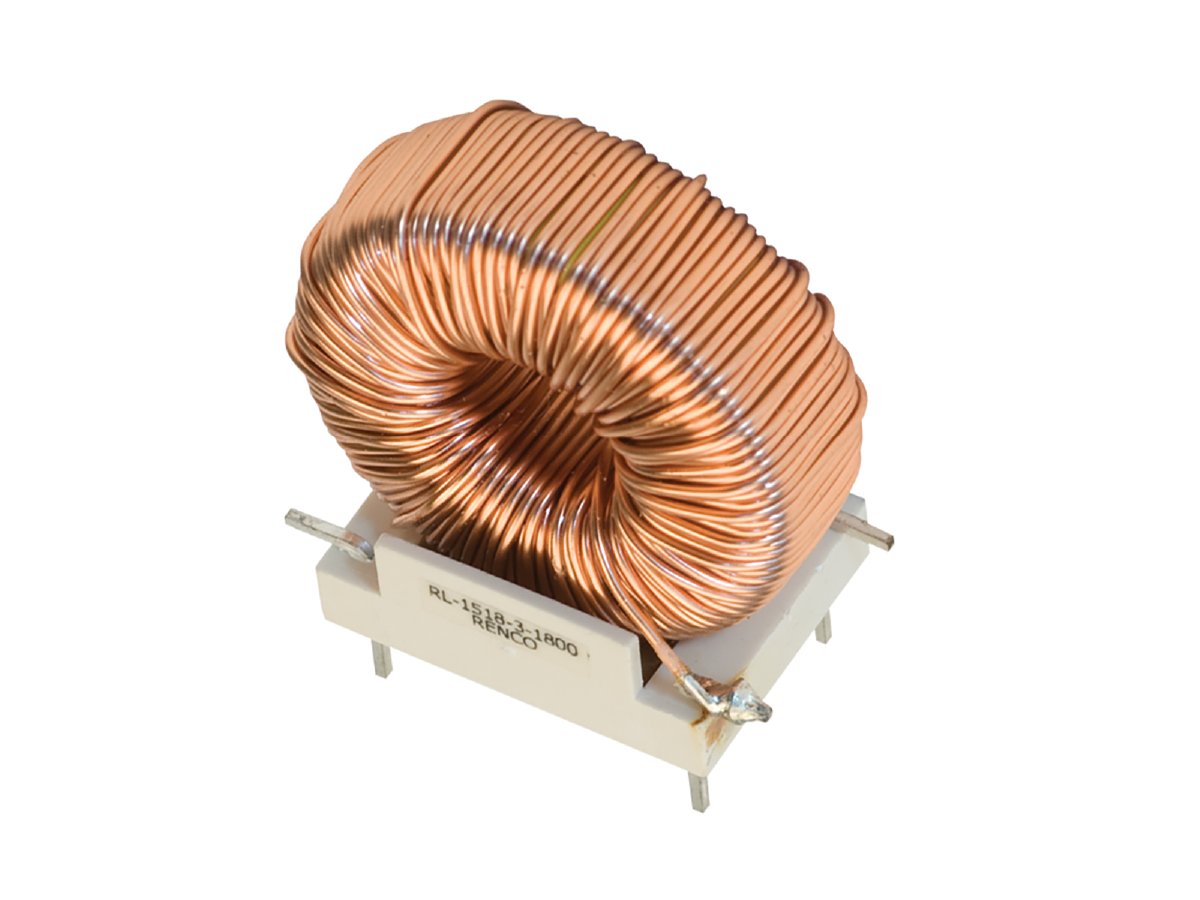

The RL-1518 Through Hole Power Inductor (Swingductor™) series offers the same electrical performance as the RL-1386, but in a vertical mount format using a molded toroid boat for durable, PCB-compatible installation. This configuration simplifies mechanical mounting and enables quick integration into existing layouts. With high-temperature operation and rugged construction, it is well-suited for demanding power applications. The RL-1518 accommodates a variety of core sizes and winding configurations for flexible electrical performance.
- Vertical mount toroid design with molded base
- Electrically identical to RL-1386 series
- Supports custom winding and encapsulation options
- Available with PC-mount tinned leads
- Horizontal mount options also available
- Designed for rugged PCB installations
- Handles large core sizes and high currents
- Standard and nonstandard values available
- Inductance Tolerance: ±25%
- Test Frequency: 1 kHz (ESI Model #252)
- Operating Temperature Range: -40°C to +130°C
- Storage Temperature Range: -55°C to +130°C
- Lead Finish: Tinned to within 1/16″ of body
- DC Resistance (RDC): Measured @ 20°C
- Terminal Size: 0.038″ square
- Encapsulation: Available on request
The RL-1518 inductor series is ideal for through-hole applications requiring reliable performance in power conversion, filtering, or EMI suppression. It is commonly used in switching power supplies, inverters, and other high-current electronic circuits. The vertical mount header provides robust mechanical support for mounting any toroidal inductor in dense PCB designs.
