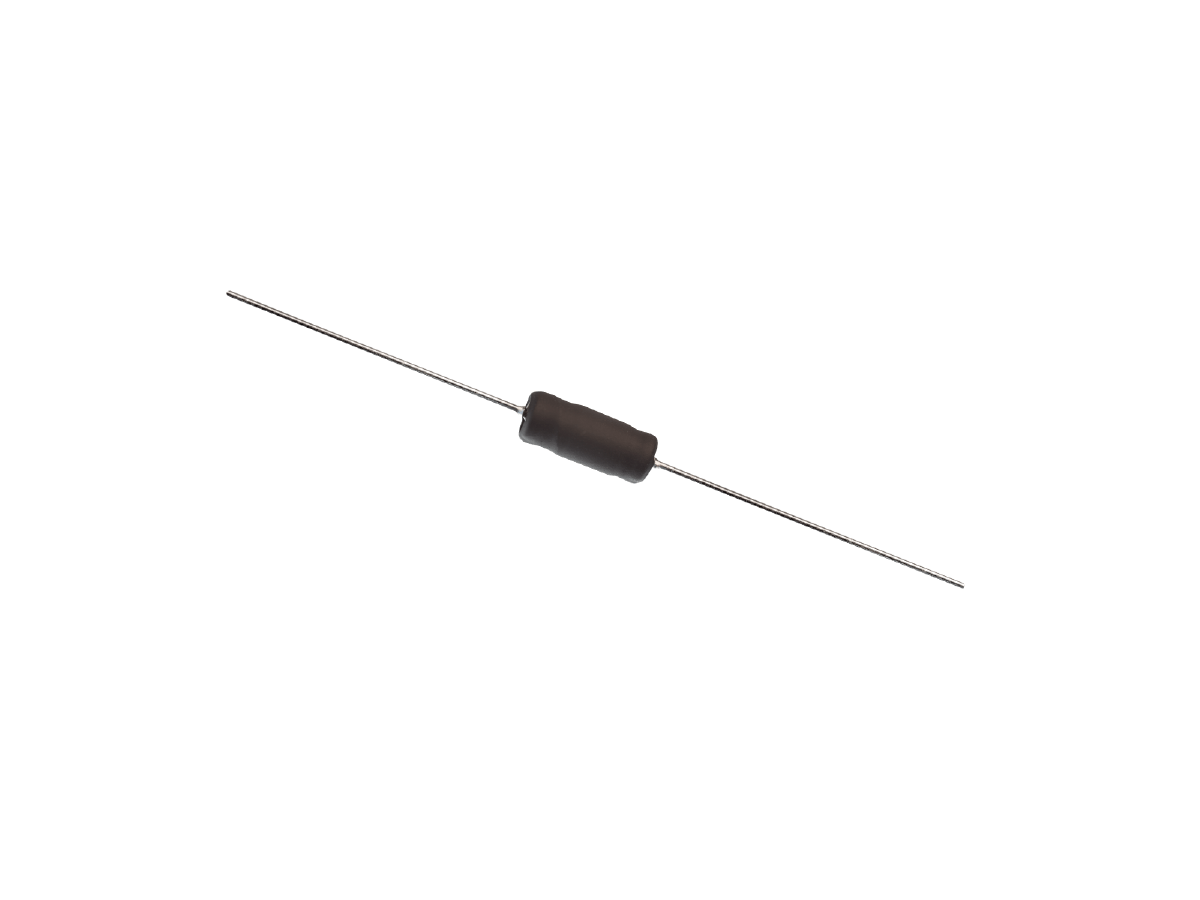

RL-1284 Through Hole Power Inductor
The RL-1284 Through Hole Power Inductor series is a compact axial leaded solution designed for regulated power supply applications. With 45 standard inductance values ranging from 3.9µH to 18,000µH, it offers versatility and performance for a variety of power circuit needs. Its high saturation core material ensures stable operation in switching environments, while the small physical size allows for easy integration into dense PCB layouts. Ideal for lightweight and space-sensitive applications, the RL-1284 is built to meet demanding electronic requirements.
- 45 standard inductance values
- Compact axial leaded construction
- Inductance range up to 18,000µH
- Engineered with high saturation material
- Slim 0.26in (6.60mm) body diameter
- 20 AWG tinned copper leads
- Designed for efficient switching regulation
- Lightweight 1.5g component
- Operating temperature range: -40°C to +130°C
- Storage temperature range: -55°C to +130°C
- Inductance range: 3.9µH to 18,000µH
- Maximum body diameter (A): 0.26in (6.60mm)
- Maximum lead span (B): 0.70in (17.78mm)
- Minimum lead length (C): 1.00in (25.40mm)
- Lead type: #20 AWG, 0.032in (0.81mm) tinned copper
- Part weight: 1.5g (0.05oz)
The RL-1284 inductor series is well-suited for switching regulators and compact power systems that demand efficiency and reliability. It is commonly used in power amplifiers, filters, power supplies, and control systems involving SCRs and TRIACs. Its small form factor also makes it a strong choice for audio applications like speaker crossover networks.
