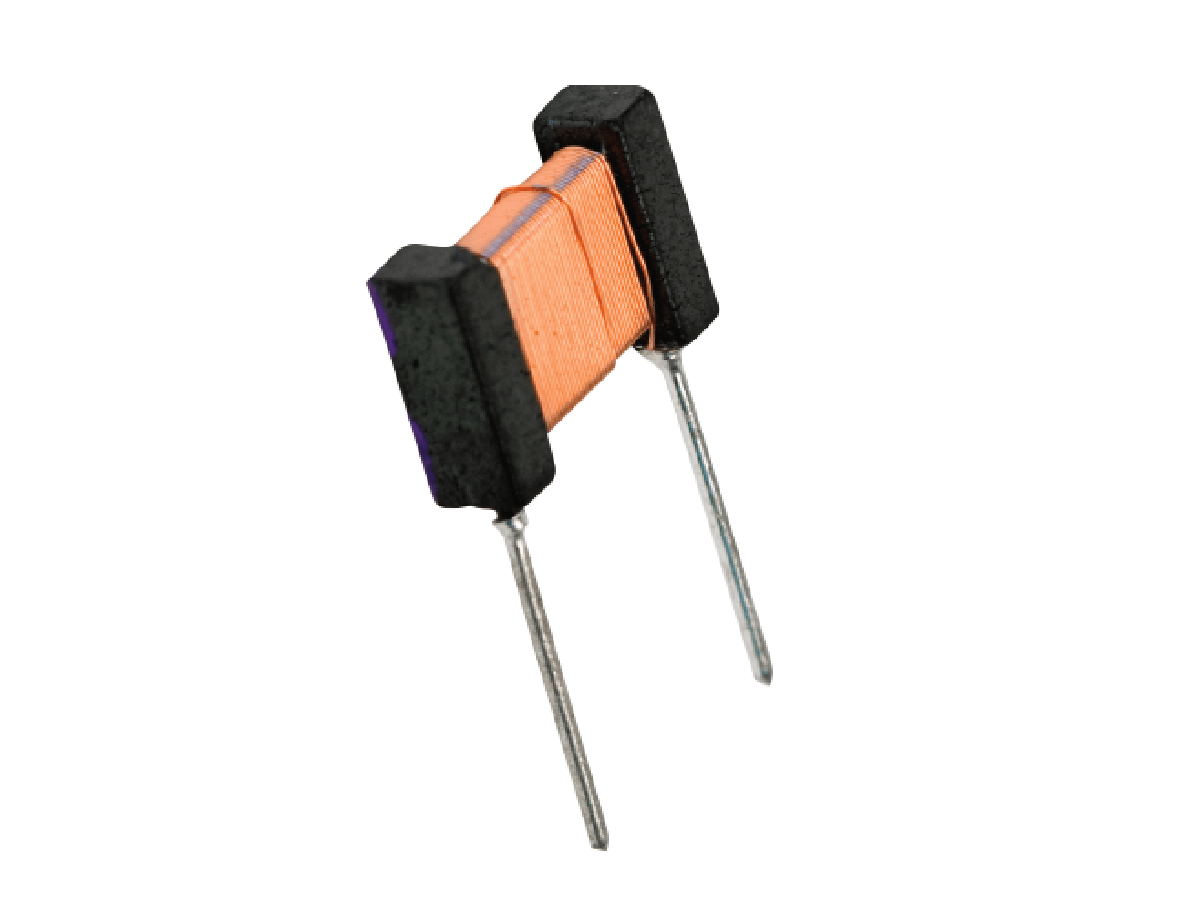

RL-1160 Through Hole Power Inductor
The RL-1160 Through Hole Power Inductor series features a unique flat coil configuration that enables high inductance performance in a compact, horizontal footprint. Its economical design is ideal for high-density PCB assemblies, offering double the inductance compared to traditional axial leaded inductors occupying the same space. With a broad range of inductance values, the RL-1160 provides designers with flexibility in RF and audio circuit applications. This inductor is precision-measured on a Q meter to ensure performance consistency.
- High Q horizontal flat coil design
- Optimized for high-density PCB layouts
- Economical alternative to axial inductors
- Wide inductance value range available
- Lightweight—only 0.50g
- Available in through-hole configuration
- Compact mechanical footprint
- Reliable operation across extreme temperatures
- Operating ambient temperature: -55°C to +130°C
- Storage temperature range: -55°C to +130°C
- Tolerance: 10% for 10µH to 4700µH, 20% for values under 10µH
- Weight: 0.50g (0.018oz)
- Inductance measured on: Q meter
- Mechanical dimensions (A × B × C × D × E): 0.375in × 0.300in × 0.150in × 0.300in × 0.375in
- Pin dimension: 0.020in (0.508mm)
The RL-1160 inductor series is well-suited for use in RF and audio frequency circuits, particularly where board space is limited. Its high Q performance and wide inductance range make it ideal for applications in signal filtering, tuning circuits, and high-frequency analog systems. Designers often select this series for radios, amplifiers, and compact audio electronics.
