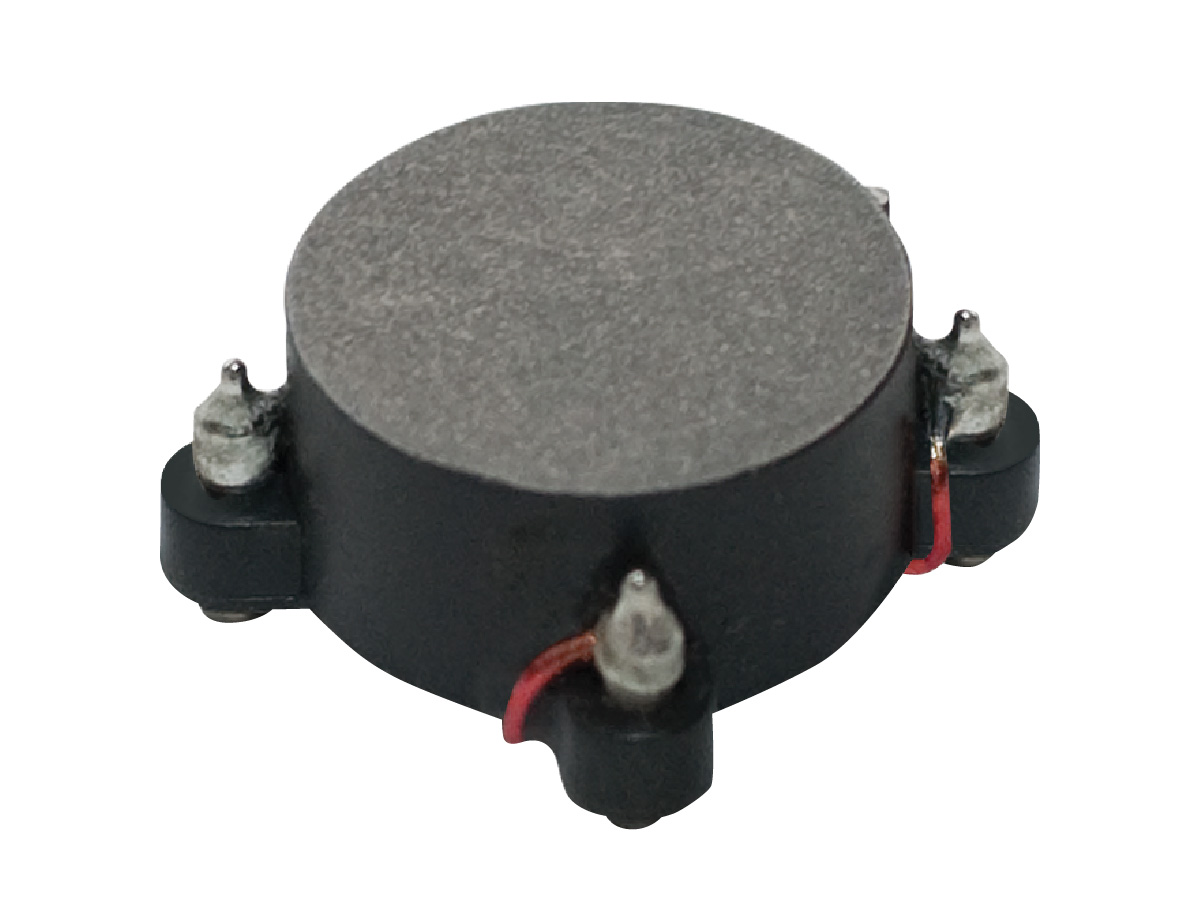

RL-9250 Surface Mount Common Mode Choke
The RL-9250 Surface Mount Common Mode Choke delivers reliable electromagnetic interference suppression in a compact, durable package. Its design supports high-performance filtering in dense PCB layouts, ensuring stable performance in demanding AC power applications. Built for long-term reliability, it integrates seamlessly into automated assembly processes.
- Compact surface mount construction for space efficiency
- Rugged mechanical design for enhanced durability
- High resonant frequency for effective EMI attenuation
- Optimized core design for stable magnetic performance
- Compatible with automated pick-and-place manufacturing processes
- Inductance Range: 0.075 mH to 12.0 mH
- Dielectric Withstanding Voltage: 2000 VAC line to line
- Resonant Frequency: High
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: -40°C to +105°C
- Maximum Height: 0.490 in (12.45 mm)
- Maximum Width: 0.300 in (7.62 mm)
- Maximum Length: 0.400 in (10.16 mm)
- Maximum Pin Length: 0.540 in (13.72 mm)
- Weight: 2.0 g (0.07 oz)
The RL-9250 choke series is suited for EMI suppression and AC power line filtering in compact electronic systems. Common uses include switch mode power supplies, consumer electronics, and industrial power equipment requiring robust, space-saving noise control solutions.
