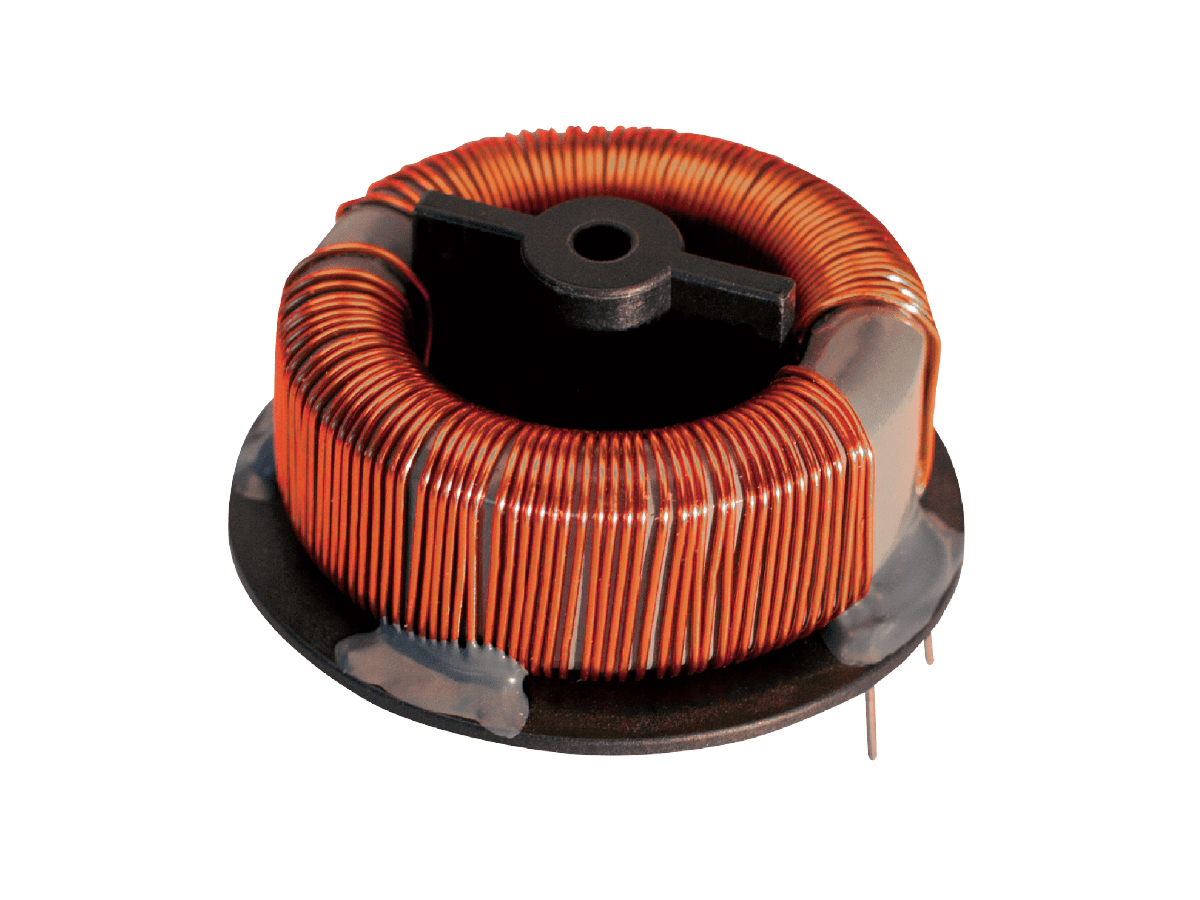

RL-6013 Through Hole Common Mode Choke
The RL-6013 Through Hole Common Mode Choke series is designed to provide superior EMI suppression in applications where installation height is a concern. Its low-profile, horizontal mount configuration ensures compatibility with space-restricted designs while maintaining excellent electrical performance. Manufactured with UL94-VO materials and built to meet IEC, VDE, and CSA standards, the RL-6013 offers reliable operation in demanding environments. This series is optimized for high efficiency and durability across a wide range of current ratings.
- Low-profile horizontal mount design
- Compact footprint for space-restricted applications
- Available in 13 standard inductance values
- Offered in 4 size configurations for design versatility
- UL94-VO flame-retardant material construction
- Compliant with IEC, VDE, and CSA specifications
- Rated current range: 2.0 A to 15.0 A
- Dielectric withstanding voltage: 2000 VAC line to line
- Maximum outer diameter: 58.93 mm
- Typical mounting base width: 3.05 mm
- Core bore diameter: 4.32 mm
- Maximum height above PCB: 27.23 mm
- Typical lead thickness: 0.81 mm
- Reference pin spacing (G): 12.70 mm
- Reference pin spacing (H): 52.32 mm
- Weight: 155.0 g (5.47 oz)
- Storage temperature range: -55°C to +130°C
- Operating temperature range: Contact engineering
The RL-6013 choke series is ideal for filtering and noise suppression in power line and linear supply systems. It is commonly used to suppress EMI in switched-mode supplies and improve performance in high-current filtering applications. Its robust design supports industrial, commercial, and high-reliability electronic systems.
