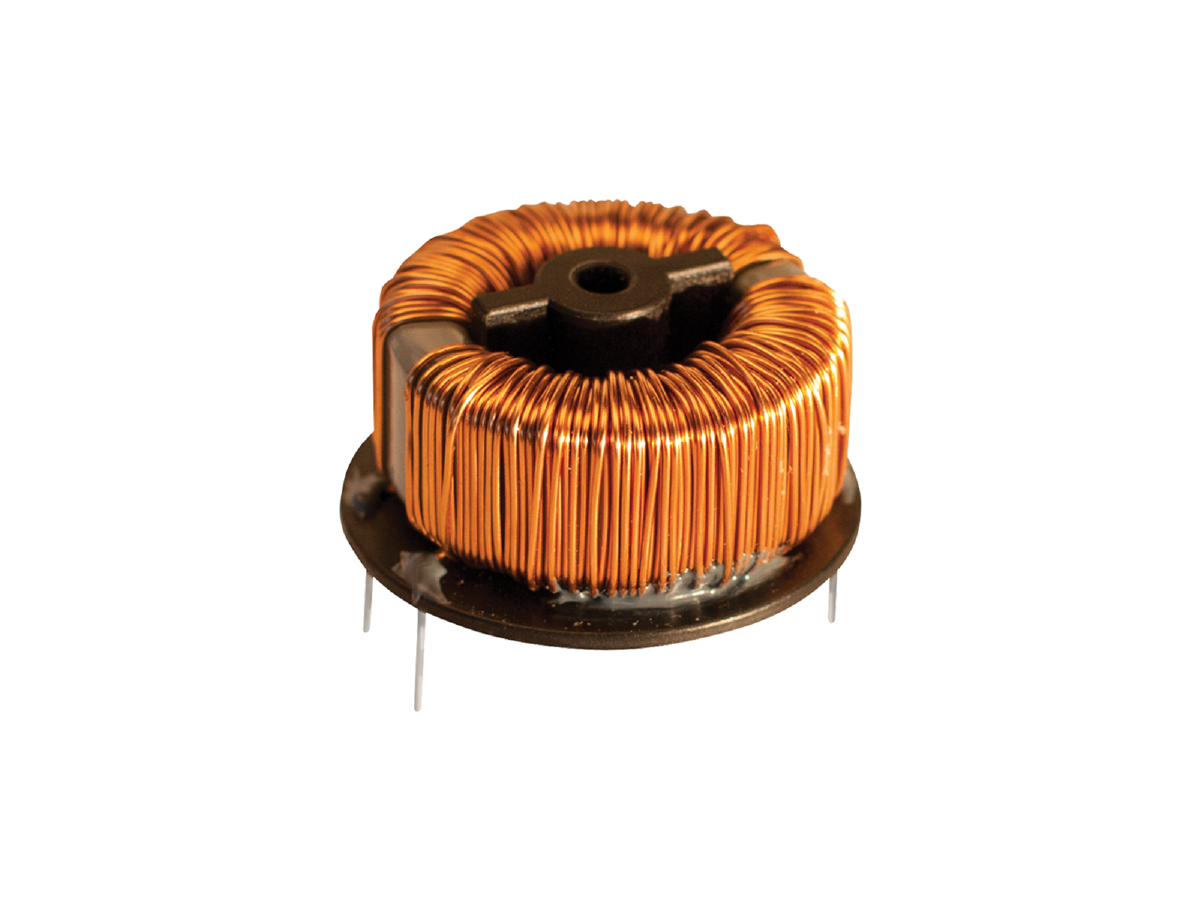

RL-6012 Through Hole Common Mode Choke
The RL-6012 Through Hole Common Mode Choke series is engineered for applications requiring effective EMI suppression within a limited installation profile. Its low-profile horizontal mount design maximizes board space efficiency while maintaining high current capacity and robust filtering performance. Manufactured with UL94-VO compliant materials, this series meets stringent IEC, VDE, and CSA safety standards. Available in multiple values and sizes, the RL-6012 series provides a versatile solution for demanding filtering environments.
- Low‑profile horizontal mount design for compact layouts
- Optimized geometry for effective EMI suppression
- Constructed with UL94‑VO flame‑retardant materials
- Compliant with IEC, VDE, and CSA safety standards
- Available in 13 values and 4 sizes for flexible design options
- Durable construction for long‑term operational stability
- Rated Current Range: 2.0 A to 15.0 A
- Dielectric Withstanding Voltage: 2000 VAC line to line
- Maximum Overall Diameter: 43.43 mm (1.710 in)
- Typical Mounting Base Thickness: 3.05 mm (0.120 in)
- Core Inner Diameter: 4.32 mm (0.170 in)
- Maximum Height from PCB: 22.15 mm (0.872 in)
- Lead Spacing: 0.81 mm (0.032 in)
- Reference Mounting Footprint Width: 12.70 mm (0.500 in)
- Reference Mounting Footprint Length: 35.92 mm (1.414 in)
- Part Weight: 75.0 g (2.65 oz)
- Operating Temperature Range: Contact Engineering
- Storage Temperature Range: ‑55°C to +130°C
The RL-6012 choke series is ideal for use in applications where EMI suppression and compact installation profiles are critical. These chokes are well-suited for power line filters, switch-mode power supply EMI filtering, and linear power supply noise reduction. Their robust construction ensures stable performance in both industrial and commercial environments.
