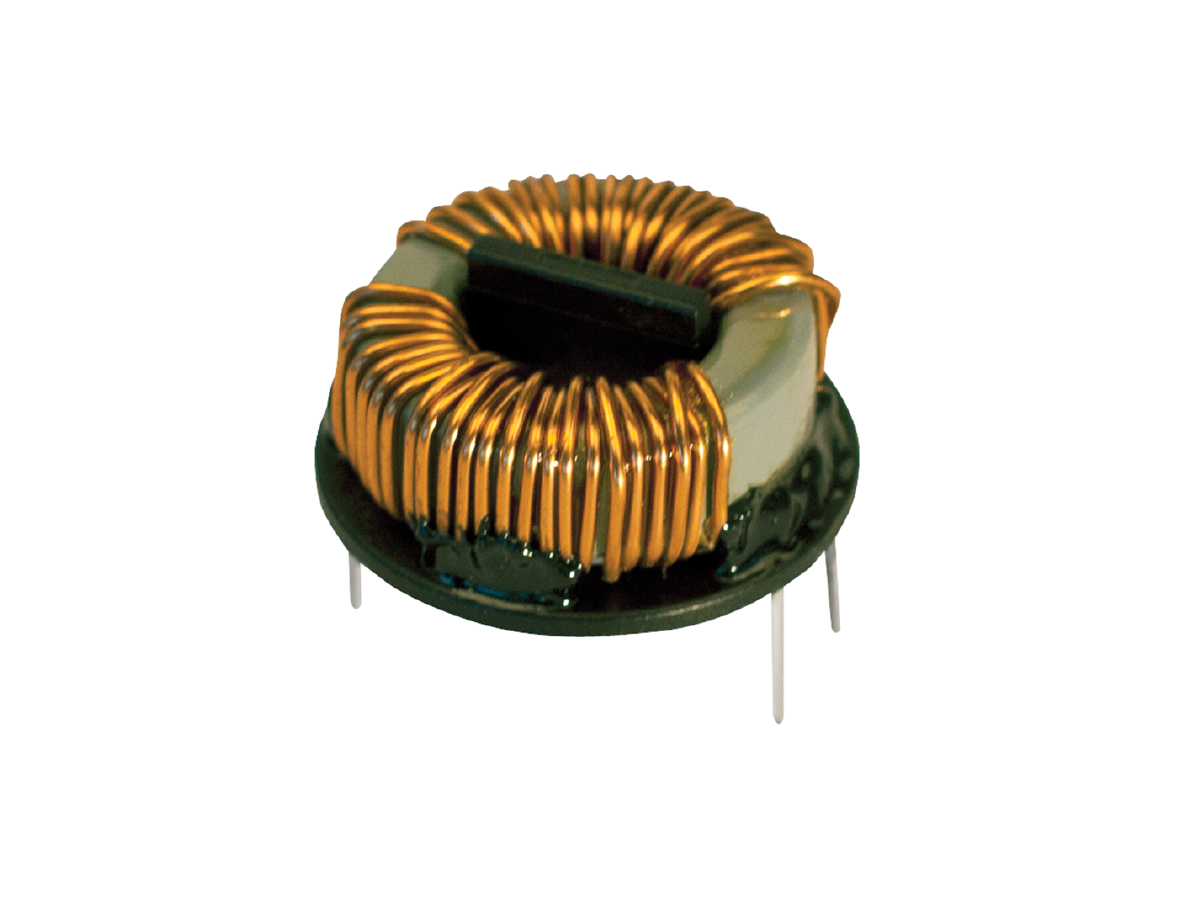

RL-6011 Through Hole Common Mode Choke
The RL-6011 Through Hole Common Mode Choke series is a low-profile toroid designed to meet stringent filtering requirements where installation space is limited. Built with high-grade UL94-VO materials, this series provides reliable performance and durability in demanding electrical environments. Its compact design and robust construction make it suitable for use in high-performance applications requiring reduced electromagnetic interference. The RL-6011 ensures dependable filtering for both residential and industrial equipment.
- Low-profile toroid construction
- High-efficiency EMI suppression capability
- Rugged design for enhanced reliability
- Compliant with IEC, VDE, and CSA standards
- Available in 18 standard values across 4 sizes
- Compact horizontal mount design
- Rated Current: 2.0 A to 15.0 A
- Dielectric Withstanding Voltage: 2000 VAC line to line
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: Contact Engineering
- Maximum Height: 1.224 in (31.09 mm)
- Typical Width: 0.120 in (3.05 mm)
- Maximum Length: 0.587 in (14.91 mm)
- Typical Lead Spacing: 0.032 in (0.81 mm)
- Reference Dimension G: 0.330 in (8.38 mm)
- Reference Dimension H: 1.070 in (27.18 mm)
- Part Weight: 18.0 g (0.64 oz)
The RL-6011 choke series is designed for power line filtering in compact installations where space constraints are critical. It is widely used for suppressing EMI in switch mode supplies and providing effective filtering in linear power supply designs. Its robust performance and compliance with safety standards make it suitable for a wide range of commercial and industrial applications.
