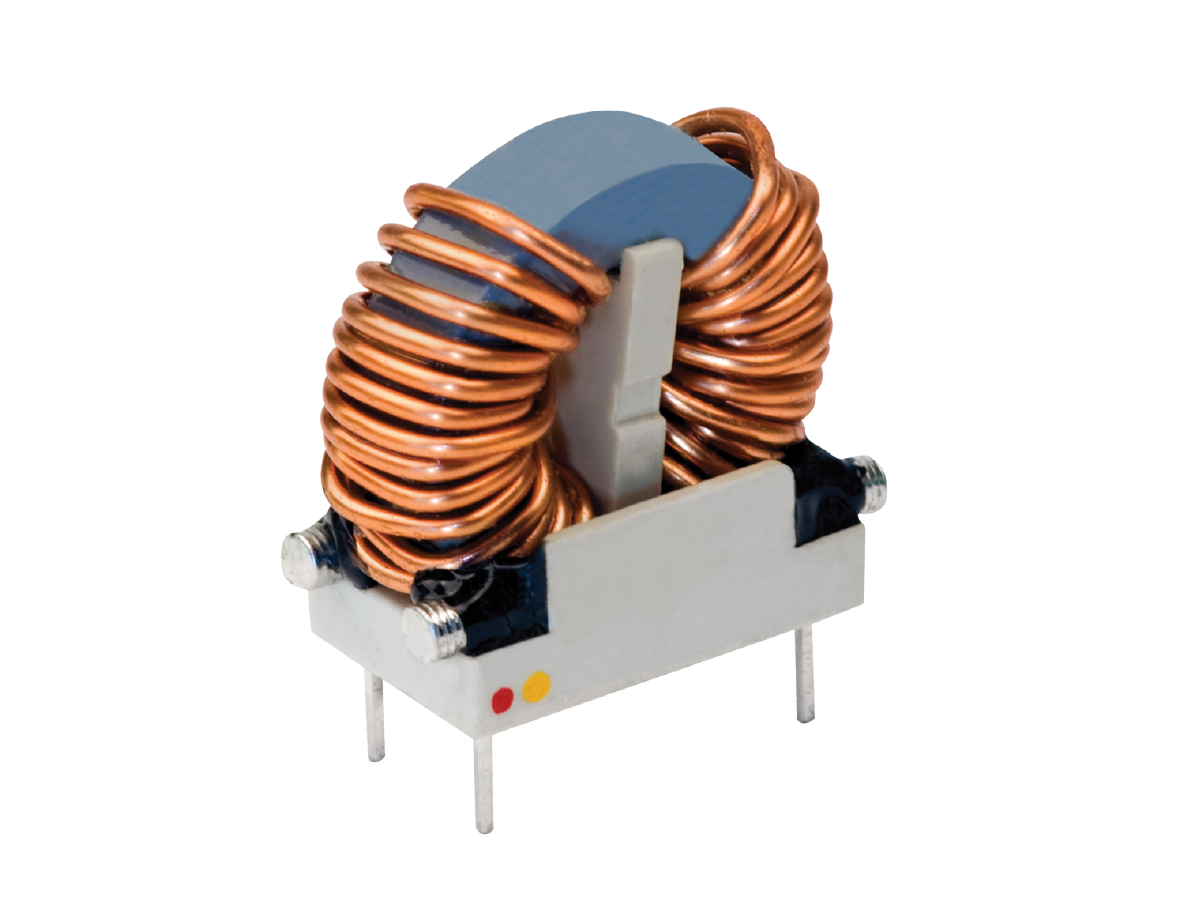

RL-5014 Through Hole Common Mode Choke
The RL-5014 Through Hole Common Mode Choke series is engineered for effective suppression of common mode noise in power supply lines. Featuring a vertical mount toroidal design, these chokes provide high performance in compact form factors, enabling compliance with FCC and EMI standards. Their broad frequency filtering capabilities make them suitable for diverse industrial and commercial applications where signal integrity is critical. UL94V-0 rated materials ensure safety and reliability in demanding environments.
- Vertical mount toroidal construction
- Effective common mode noise suppression
- Broad frequency filtering capability
- Compliance with IEC, VDE, and CSA specifications
- High dielectric withstand voltage
- Optimized for compact vertical mounting
- Durable UL94V-0 rated materials
- Rated Voltage: 2000 VAC line-to-line
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: Contact Engineering
- Minimum Dimension: 6.35 mm
- Maximum Dimension: 57.91 mm
- Weight: 118.0 g (4.16 oz)
The RL-5014 choke series is designed for effective noise suppression in power supply lines, making it ideal for power line filters, EMI suppression in switched-mode power supplies, and general power supply circuits. Its vertical mount design and compliance with international standards make it well-suited for high-reliability applications across industrial and commercial sectors.
