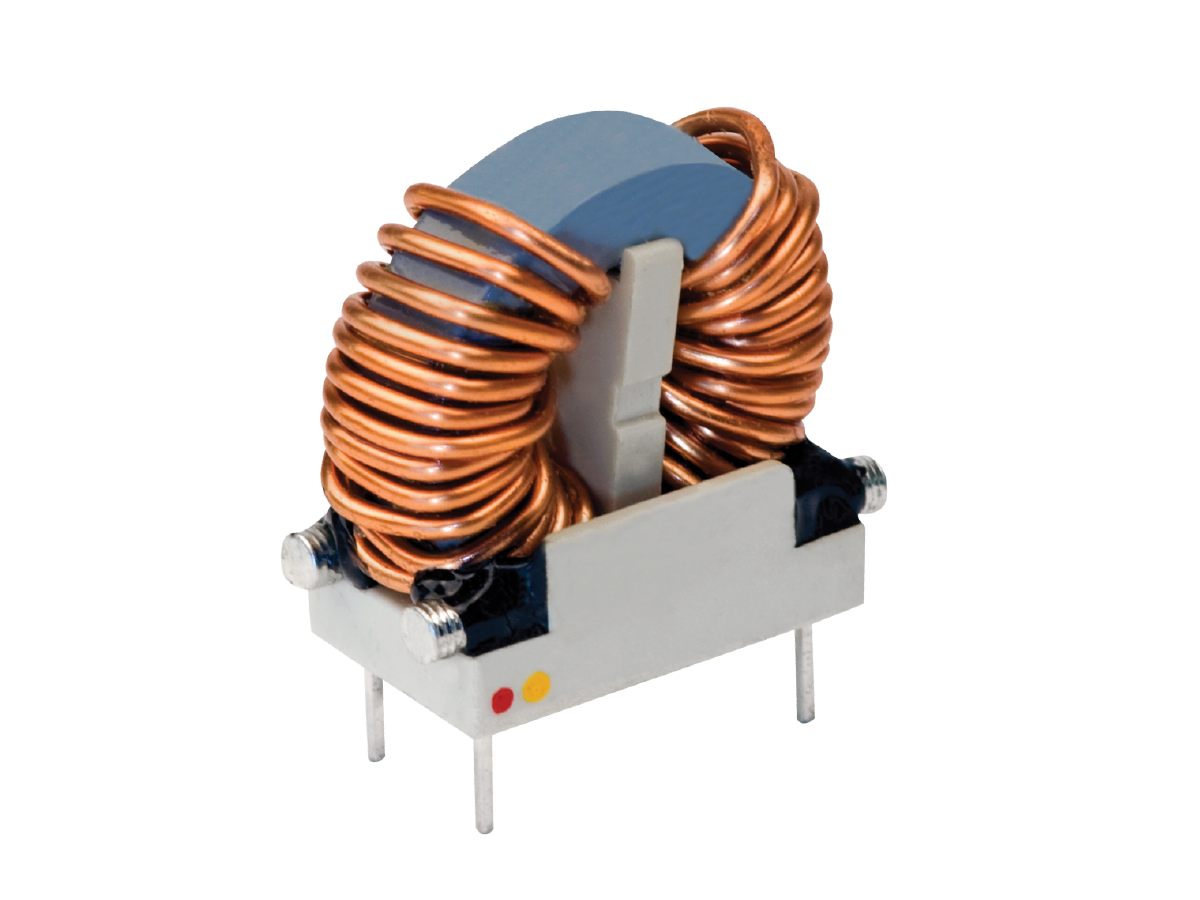

RL-5013 Through Hole Common Mode Choke
The RL-5013 Through Hole Common Mode Choke series is designed for effective suppression of in-phase noise signals in supply lines. These toroidal chokes meet FCC and electrical radiation requirements, making them ideal for sensitive electronic equipment. With a vertical mount design, they offer high efficiency in filtering broad frequency ranges. Their construction ensures durability and compatibility with a variety of power and EMI suppression applications.
- Vertical mount toroidal design
- Effective filtering of in-phase signals of equal amplitude
- Broad frequency range attenuation
- Meets FCC, IEC, VDE, and CSA specifications
- Dielectric withstand voltage of 2000 VAC line to line
- Constructed with UL94V-0 rated materials
- High reliability in EMI suppression applications
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: Contact Engineering
- Minimum Core Height: 0.25 in (6.35 mm)
- Core Width: 1.20 in (30.48 mm)
- Maximum Core Length: 1.75 in (44.45 mm)
- Maximum Lead Height: 0.20 in (5.08 mm)
- Overall Height: 1.76 in (44.71 mm)
- Overall Width: 1.75 in (44.45 mm)
- Additional Dimensions: 0.70 in (17.78 mm) width at base, 1.00 in (25.40 mm) height to winding
- Reference Dimensions: 1.20 in (30.48 mm) lead spacing, 0.70 in (17.78 mm) mounting width
- Weight: 58.0 g (2.05 oz)
The RL-5013 choke series is used in power line filters, EMI suppression in switched-mode power supplies, and general power supply noise filtering. Its vertical mount design supports compact layouts in high-performance circuits. The choke ensures compliance with electromagnetic compatibility standards, making it well-suited for both industrial and consumer electronics applications.
