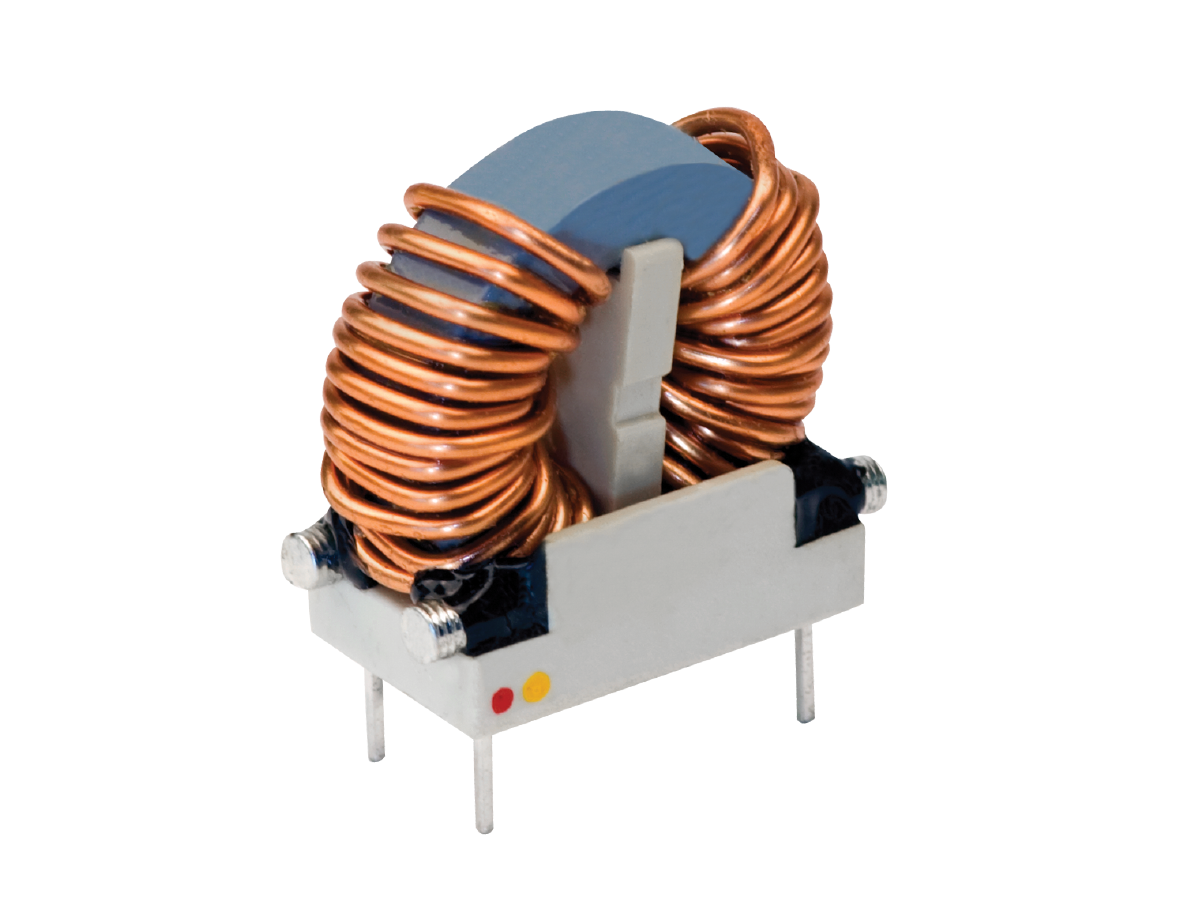

RL-5012 Through Hole Common Mode Choke
The RL-5012 Through Hole Common Mode Choke series is designed for effective suppression of differential and common mode noise in power supply lines. Its vertical mount configuration allows for compact PCB layouts while maintaining high performance in filtering in-phase signals of equal amplitude. Manufactured with UL94V-0 materials and compliant with IEC, VDE, and CSA standards, this series provides reliable EMI suppression for a variety of electronic systems. The RL-5012 series is well-suited for applications requiring robust noise reduction and regulatory compliance.
- Vertical mount toroidal design
- High efficiency in suppressing differential and common mode noise
- UL94V-0 flame retardant materials
- Compliant with IEC, VDE, and CSA standards
- Compact form factor for efficient PCB layout
- Broad frequency range attenuation capabilities
- Dielectric withstand voltage rated at 2000 VAC line to line
- Mounting Type: Through Hole, Vertical
- Storage Temperature Range: -55°C to +130°C
- Operating Temperature Range: Contact Engineering
- Dielectric Withstand Voltage: 2000 VAC line to line
- Minimum Core Dimension: 6.35 mm
- Maximum Core Height: 22.86 mm
- Maximum Core Width: 27.94 mm
- Maximum Depth: 5.08 mm
- Maximum Overall Height: 39.37 mm
- Maximum Overall Width: 36.83 mm
- Weight: 29.0 g (1.02 oz)
The RL-5012 inductor series is ideal for EMI suppression in power line filters, switched-mode power supplies, and electronic equipment requiring compliance with FCC and international EMI standards. Its vertical design and high dielectric strength make it well-suited for high-density PCB layouts. This series is an excellent choice for designs needing both compact size and reliable electromagnetic interference mitigation.
