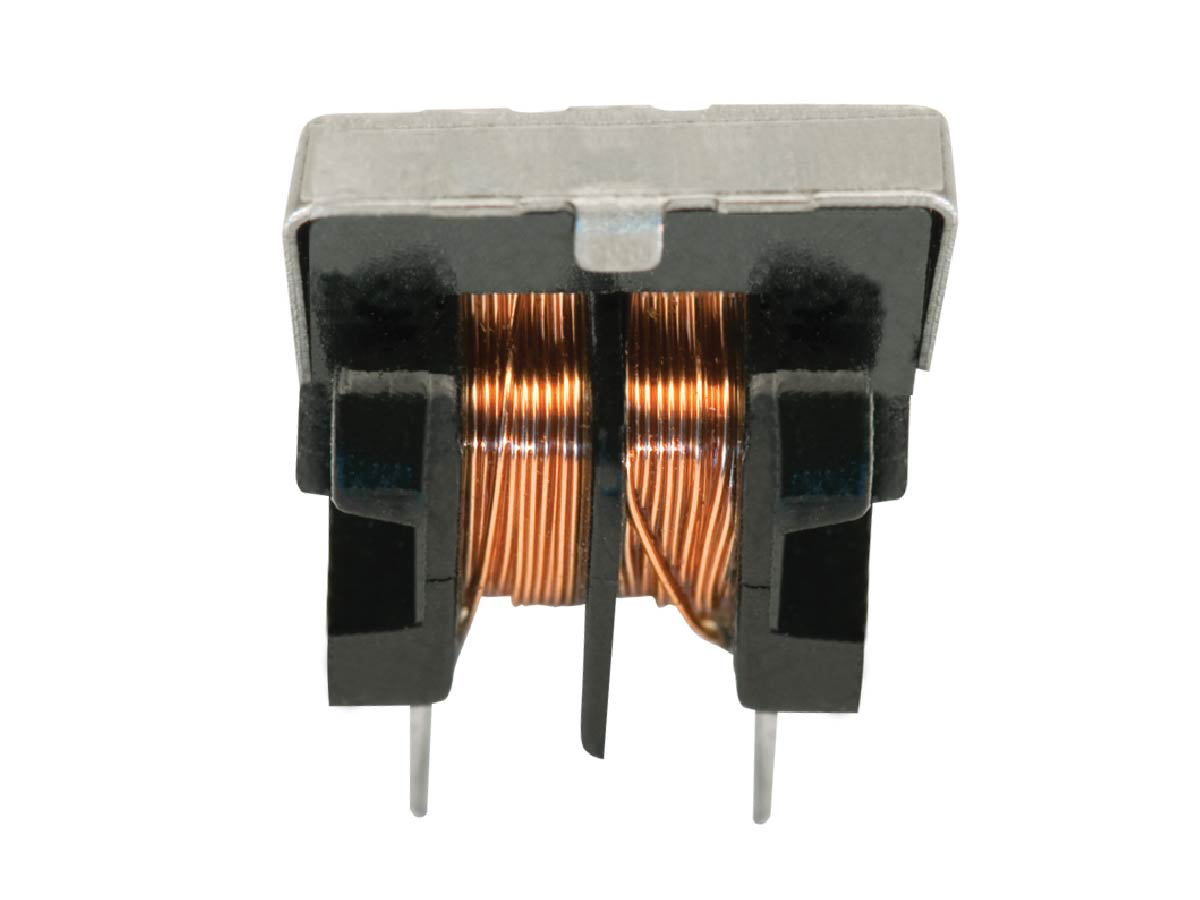

RL-4400 Through Hole Common Mode Choke
The RL-4400 Through Hole Common Mode Choke series is engineered to deliver high performance in a compact mini U-core design. This series combines high inductance with robust current handling capabilities, making it an efficient choice for noise suppression and EMI filtering. With three size options, the RL-4400 provides flexible inductance and current ratings to meet varied design needs. Its compact footprint ensures reliable performance while conserving board space.
- Mini U-core design
- High inductance capability
- High current handling
- Available in three core sizes
- Precision manufacturing for consistent performance
- Compact size for optimized PCB layout
- Reliable operation in demanding electrical environments
- Inductance Range: 390 μH to 200 mH
- Current Rating: 210 mA to 4 A
- Rated Voltage: 250 V DC to 400 Hz
- Dielectric Withstanding Voltage: 2000 VAC line to line
- Wind-to-Core Dielectric Voltage: 750 VAC
- Temperature Rise: 50°C maximum
- Operating Temperature Range: -55°C to +130°C
- Storage Temperature Range: -55°C to +130°C
The RL-4400 choke series is ideal for EMI suppression and filtering in switching power supplies, industrial control systems, and electronic equipment. Its compact design supports high-density PCB assembly without sacrificing performance. The RL-4400 provides dependable noise attenuation for demanding environments.
