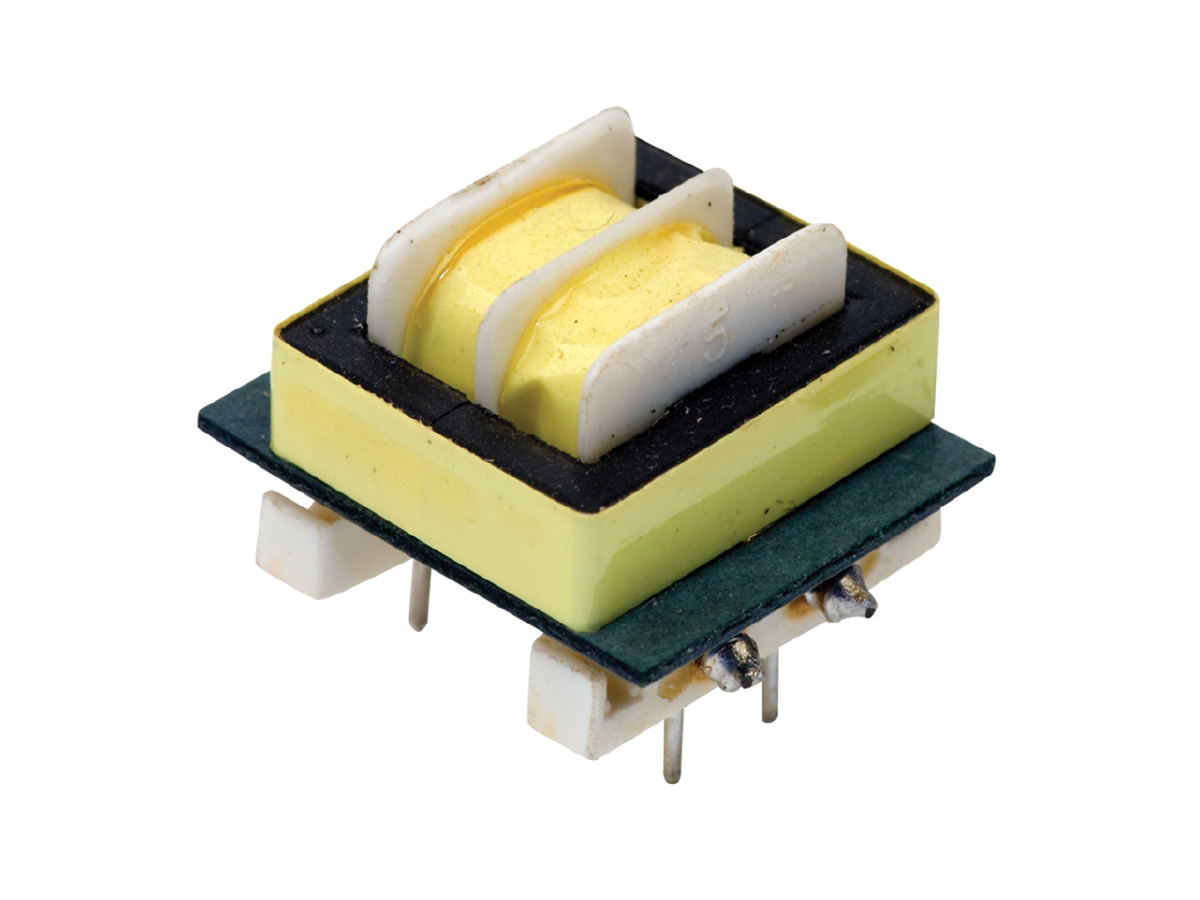

RL-1361 Through Hole Common Mode Choke

The RL-1361 Through Hole Common Mode Choke series is a compact solution built with an EE core design for high-performance noise suppression in electronic circuits. Its design allows for seamless integration into PC-mounted applications requiring low profile and mechanically stable components. With options to support a wide range of inductance and current ratings, the RL-1361 is ideal for space-constrained designs requiring reliable EMI performance. The series is constructed with durable materials to meet long-term operational demands in diverse environments.

  • Low profile construction
  • Varnish impregnated windings
  • Class B (130°C) materials used
  • MIL-Spec and encapsulation options
  • Nonlisted values available upon request
  • Prepped for PCB mounting
  • RoHS compliant
  • Designed for compact form factors
  • Operating temperature: -55°C to +130°C
  • Storage temperature: -55°C to +130°C
  • Dielectric strength (line-to-line): 2500 VAC
  • Dielectric strength (wind-to-core): 2000 VAC
  • Inductance tolerance: ±25% @ 1kHz
  • Windings balance: within 1%
  • Thermal rise: +40°C at +80°C ambient
  • All measurements taken at: +20°C

The RL-1361 common mode choke series is used to attenuate common mode noise in power supply lines and signal circuits. It is ideal for applications such as EMI filtering, TRIAC and SCR control circuits, and switching regulators. Its precise magnetic balance enables it to suppress interference without impacting the operation of other devices on the same power line.
